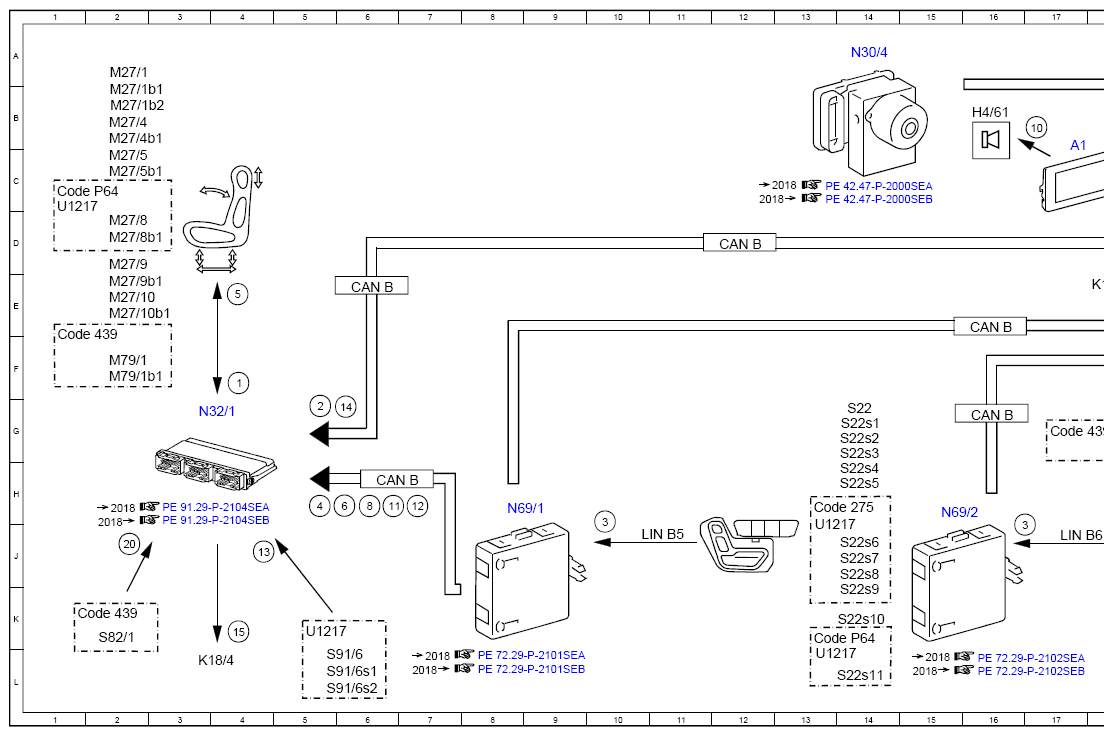

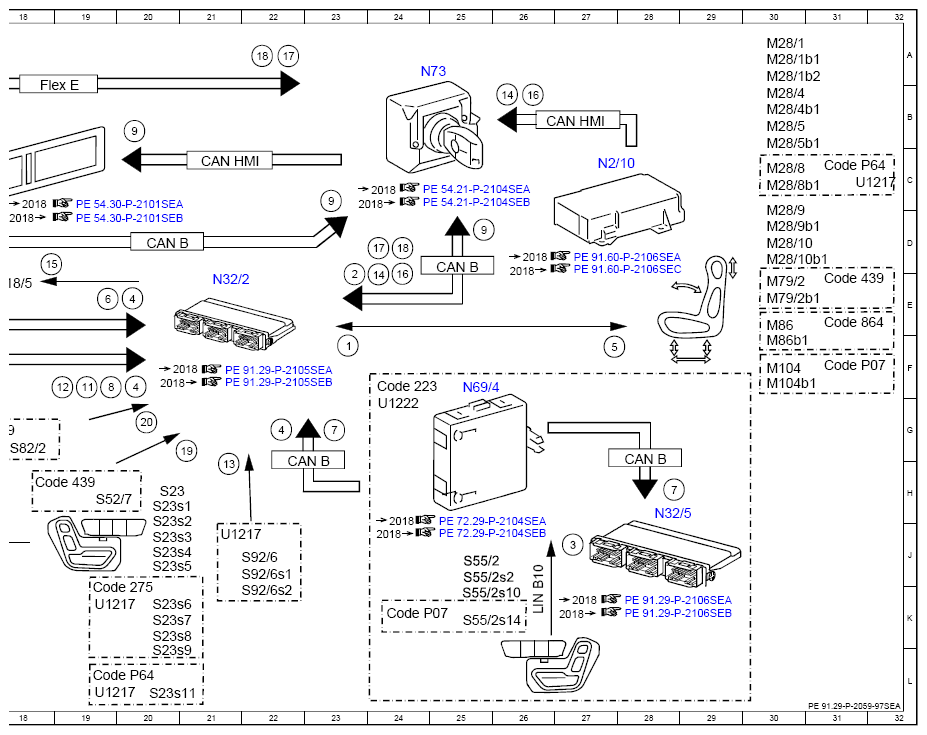

Electrical Function Schematic For Seat Adjustment (ESE) - PE91.29-P-2059-97SEA
Model 217, 222 except code 223 (Electric backrest adjustment and head restraints)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Hall sensors, signal | 23F |
| 1 | Hall sensors, signal | 4F |
| 10 | Speaker, actuation | 17B |
| 11 | Adopt memory position, request | 6H |
| 11 | Adopt memory position, request | 19F |
| 12 | Main locking position microswitch, status | 7H |
| 12 | Main locking position microswitch, status | 19F |
| 13 | Backrest release/inclination microswitch, status | 4J |
| 13 | Backrest release/inclination microswitch, status | 21H |
| 14 | Seat belt buckle switch, status | 26B |
| 14 | Seat belt buckle switch, status | 24E |
| 14 | Seat belt buckle switch, status | 6G |
| 15 | Seat belt comfort-fit function solenoid, actuation | 4K |
| 15 | Seat belt comfort-fit function solenoid, actuation | 18D |
| 16 | Front passenger seat occupied recognition, status | 26B |
| 16 | Front passenger seat occupied recognition, status | 24E |
| 17 | PRE-SAFE®, status | 24D |
| 17 | PRE-SAFE®, status | 22A |
| 18 | Adjust PRE-SAFE®, request | 22A |
| 18 | Adjust PRE-SAFE®, request | 24D |
| 19 | Front passenger seat head restraint (inserted) microswitch, status | 21G |
| 2 | Circuit 15R, status | 23E |
| 2 | Circuit 15R, status | 5G |
| 20 | Head restraint inclination microswitch, status | 20G |
| 20 | Head restraint inclination microswitch, status | 2J |
| 3 | Seat adjustment switch group, status | 16J |
| 3 | Seat adjustment switch group, status | 10J |
| 3 | Seat adjustment switch group, status | 27J |
| 4 | Manual adjustment, request | 5H |
| 4 | Manual adjustment, request | 20E |
| 4 | Manual adjustment, request | 20F |
| 4 | Manual adjustment, request | 22G |
| 5 | Seat adjustment motor, actuation | 4E |
| 5 | Seat adjustment motor, actuation | 27F |
| 6 | Front passenger seat adjustment active, signal | 6H |
| 6 | Front passenger seat adjustment active, signal | 19E |
| 7 | Right rear front passenger seat adjustment active, signal | 23G |
| 7 | Right rear front passenger seat adjustment active, signal | 28H |
| 8 | Store memory position, request | 6H |
| 8 | Store memory position, request | 19F |
| 9 | Acknowledgment tone after memory positions stored successfully, request | 20B |
| 9 | Acknowledgment tone after memory positions stored successfully, request | 23C |
| 9 | Acknowledgment tone after memory positions stored successfully, request | 25D |
| A1 | Instrument cluster | 17C |
| CAN B | Interior CAN | 6E |
| CAN B | Interior CAN | 16E |
| CAN B | Interior CAN | 16G |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 25D |
| CAN B | Interior CAN | 22H |
| CAN B | Interior CAN | 28H |
| CAN B | Interior CAN | 12D |
| CAN B | Interior CAN | 20D |
| CAN HMI | User interface CAN | 21C |
| CAN HMI | User interface CAN | 27B |
| Code 223 | Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 24F |
| Code 275 | Front power seats memory package | 13H |
| Code 275 | Front power seats memory package | 19K |
| Code 439 | EASY ADJUST luxury head restraint | 1F |
| Code 439 | EASY ADJUST luxury head restraint | 31E |
| Code 439 | EASY ADJUST luxury head restraint | 17G |
| Code 439 | EASY ADJUST luxury head restraint | 1K |
| Code 439 | EASY ADJUST luxury head restraint | 18H |
| Code 864 | Rear compartment entertainment | 31E |
| Code P07 | Chauffeur package | 31F |
| Code P07 | Chauffeur package | 24K |
| Code P64 | Memory package | 1C |
| Code P64 | Memory package | 13K |
| Code P64 | Memory package | 19L |
| Code P64 | Memory package | 31C |
| Flex E | Chassis FlexRay | 18B |
| H4/61 | Instrument cluster speaker | 16B |
| K18/4 | Seat belt comfort-fit function solenoid, driver seat | 3L |
| K18/5 | Seat belt comfort-fit function solenoid, front passenger seat | 18E |
| LIN B10 | Right rear door LIN | 26K |
| LIN B5 | Left front door LIN | 11J |
| LIN B6 | Right front door LIN | 17J |
| M104 | Footrest adjustment actuator motor | 30F |
| M104b1 | Footrest adjustment Hall sensor | 30F |
| M27/1 | Driver seat fore/aft adjustment motor | 2A |
| M27/10 | Driver seat height adjustment motor | 2E |
| M27/10b1 | Driver seat, seat height adjustment Hall sensor, | 2E |
| M27/1b1 | Seat fore/aft adjustment Hall sensor 1, driver seat | 2B |
| M27/1b2 | Seat fore/aft adjustment Hall sensor 2, driver seat | 2B |
| M27/4 | Driver seat head restraint adjustment motor | 2B |
| M27/4b1 | Head restraint adjustment Hall sensor, driver seat | 2B |
| M27/5 | Driver seat backrest inclination adjustment motor | 2C |
| M27/5b1 | Backrest inclination Hall sensor, driver seat | 2C |
| M27/8 | Seat cushion length adjustment motor, driver seat | 2D |
| M27/8b1 | Seat cushion length adjustment Hall sensor, driver seat | 2D |
| M27/9 | Seat inclination adjustment motor, driver seat | 2D |
| M27/9b1 | Seat inclination adjustment Hall sensor, driver seat | 2E |
| M28/1 | Front passenger seat fore/aft adjustment motor | 30A |
| M28/10 | Front passenger seat height adjustment motor | 30D |
| M28/10b1 | Front passenger seat, seat height adjustment Hall sensor, | 30D |
| M28/1b1 | Seat fore/aft adjustment Hall sensor 1, front passenger seat | 30A |
| M28/1b2 | Seat fore/aft adjustment Hall sensor 2, front passenger seat | 30A |
| M28/4 | Front passenger seat head restraint adjustment motor | 30B |
| M28/4b1 | Head restraint adjustment Hall sensor, front passenger seat | 30B |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 30B |
| M28/5b1 | Backrest inclination Hall sensor, front passenger seat | 30B |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 30C |
| M28/8b1 | Seat cushion length adjustment Hall sensor, front passenger seat | 30C |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 30D |
| M28/9b1 | Seat inclination adjustment Hall sensor, front passenger seat | 30D |
| M79/1 | Driver seat head restraint inclination motor | 2F |
| M79/1b1 | Driver seat head restraint inclination Hall sensor | 2F |
| M79/2 | Front passenger seat head restraint inclination motor | 30E |
| M79/2b1 | Front passenger seat head restraint inclination Hall sensor | 30E |
| M86 | Screen adjustment actuator motor | 30E |
| M86b1 | Screen adjustment Hall sensor | 30F |
| N2/10 | Supplemental restraint system control unit | 27C |
| N30/4 | Electronic Stability Program control unit | 14A |
| N32/1 | Driver seat control unit | 3G |
| N32/2 | Front passenger seat control unit | 21E |
| N32/5 | Right rear seat control unit | 28H |
| N69/1 | Left front door control unit | 8H |
| N69/2 | Right front door control unit | 15H |
| N69/4 | Right rear door control unit | 25F |
| N73 | Electronic ignition switch control unit | 24A |
| S22 | Left front seat adjustment switch group | 14G |
| S22s1 | Left front head restraint adjustment switch | 14G |
| S22s10 | Left or right seat setting switch | 14K |
| S22s11 | Left front seat cushion length switch | 14L |
| S22s2 | Left front seat inclination adjustment switch | 14G |
| S22s3 | Left front seat fore/aft adjustment switch | 14G |
| S22s4 | Left front seat height adjustment switch | 14H |
| S22s5 | Left front backrest adjustment switch | 14H |
| S22s6 | Left front memory function switch | 14J |
| S22s7 | Left front memory 1 switch | 14J |
| S22s8 | Left front memory 2 switch | 14J |
| S22s9 | Left front memory 3 switch | 14K |
| S23 | Right front seat adjustment switch group | 20H |
| S23s1 | Right front head restraint adjustment switch | 20H |
| S23s11 | Right front seat cushion length switch | 20L |
| S23s2 | Right front seat inclination adjustment switch | 20J |
| S23s3 | Right front seat fore/aft adjustment switch | 20J |
| S23s4 | Right front seat height adjustment switch | 20J |
| S23s5 | Right front backrest adjustment switch | 20J |
| S23s6 | Right front memory function switch | 20K |
| S23s7 | Right front memory 1 switch | 20K |
| S23s8 | Right front memory 2 switch | 20K |
| S23s9 | Right front memory 3 switch | 20L |
| S52/7 | Front passenger seat head restraint (inserted) microswitch | 19H |
| S55/2 | Right rear seat adjustment switch group | 25J |
| S55/2s10 | Front passenger seat or right rear seat adjustment switch | 25K |
| S55/2s14 | Right rear seat recline position switch | 25K |
| S55/2s2 | Right rear seat inclination adjustment switch | 25J |
| S82/1 | Driver head restraint inclination microswitch | 2K |
| S82/2 | Front passenger head restraint inclination microswitch | 18G |
| S91/6 | Left backrest release/inclination microswitch | 5L |
| S91/6s1 | Left backrest release microswitch | 5L |
| S91/6s2 | Left backrest inclination microswitch | 5L |
| S92/6 | Right backrest release/inclination microswitch | 21J |
| S92/6s1 | Right backrest release microswitch | 21J |
| S92/6s2 | Right backrest inclination microswitch | 21K |
| U1217 | Valid for model series 217 | 1C |
| U1217 | Valid for model series 217 | 13J |
| U1217 | Valid for model series 217 | 13L |
| U1217 | Valid for model series 217 | 19K |
| U1217 | Valid for model series 217 | 19L |
| U1217 | Valid for model series 217 | 31C |
| U1217 | Valid for model series 217 | 5K |
| U1217 | Valid for model series 217 | 21J |
| U1222 | Valid for model series 222 | 24G |
