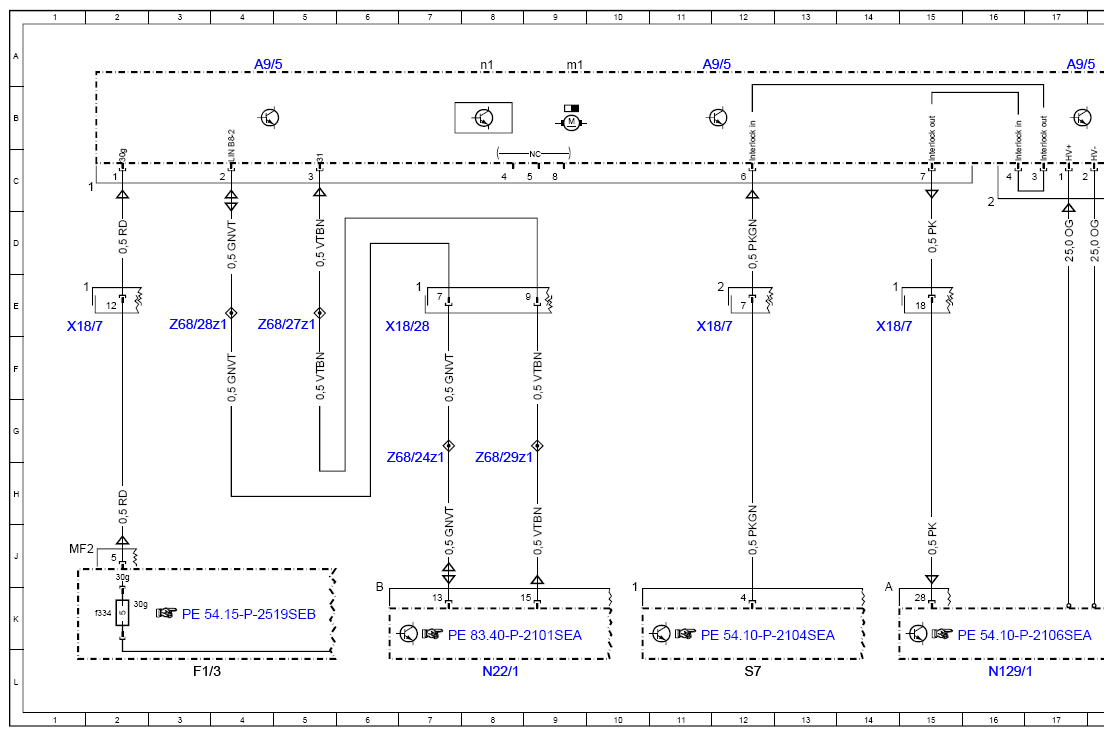

Wiring Diagram For Electric Refrigerant Compressor - PE83.55-P-2000-97SEA
Engine 276, 651 in model 222 up to model year 2018
with code ME04 (Mild hybrid drive)
except code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
A/C compressor A9/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A9/5 | Electric refrigerant compressor | 4A |
| A9/5 | Electric refrigerant compressor | 11A |
| A9/5 | Electric refrigerant compressor | 17A |
| A9/5m1 | Refrigerant compressor electric motor | 9A |
| A9/5n1 | Refrigerant compressor control unit and power electronics | 8A |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f334 | Fuse 334 | 2K |
| N129/1 | Power electronics control unit | 16L |
| N22/1 | Climate control, control unit | 8L |
| S7 | High-voltage disconnect device | 12L |
| X18/28 | Left cockpit/engine compartment electrical connector | 7E |
| X18/7 | Vehicle interior and engine compartment electrical connector | 12E |
| X18/7 | Vehicle interior and engine compartment electrical connector | 2E |
| X18/7 | Vehicle interior and engine compartment electrical connector | 14E |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 7G |
| Z68/27z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 5E |
| Z68/28z1 | Connector sleeve, data line for climate control LIN 2 | 3E |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 8G |
