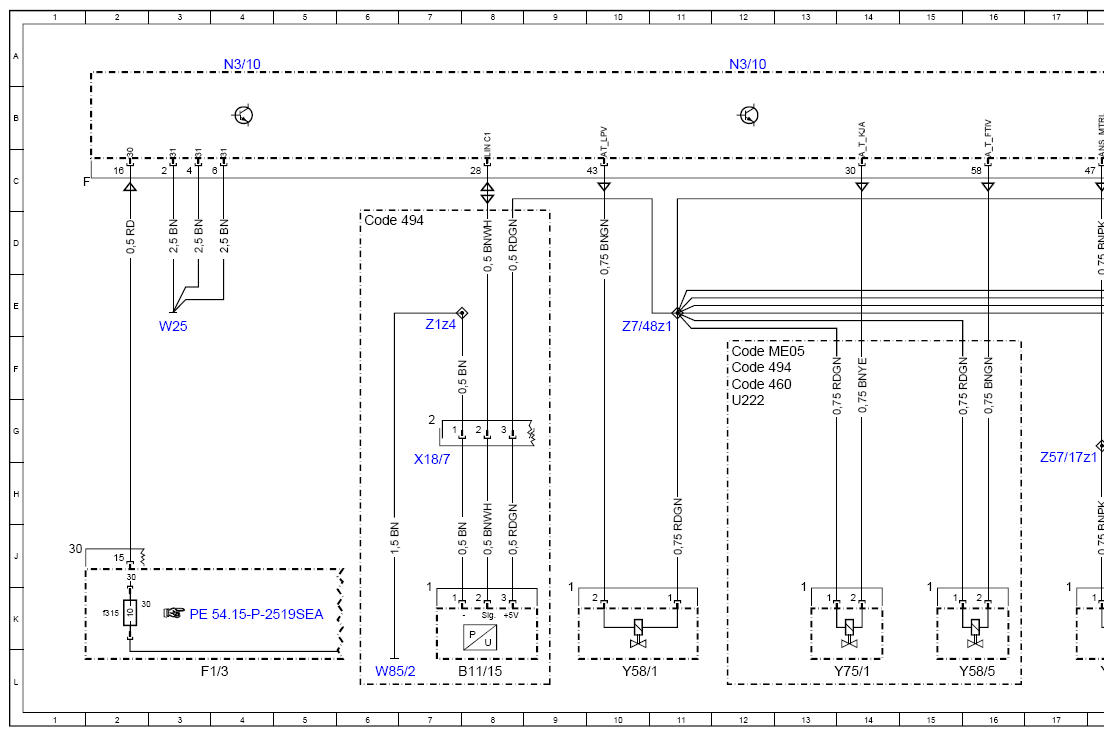

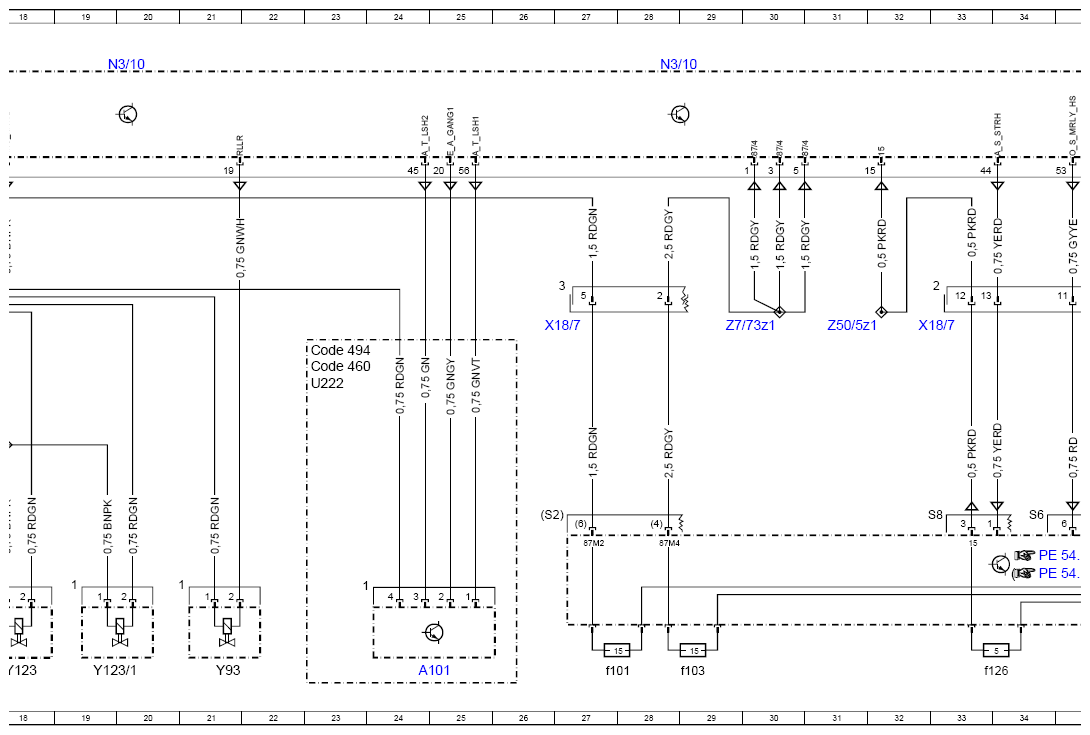

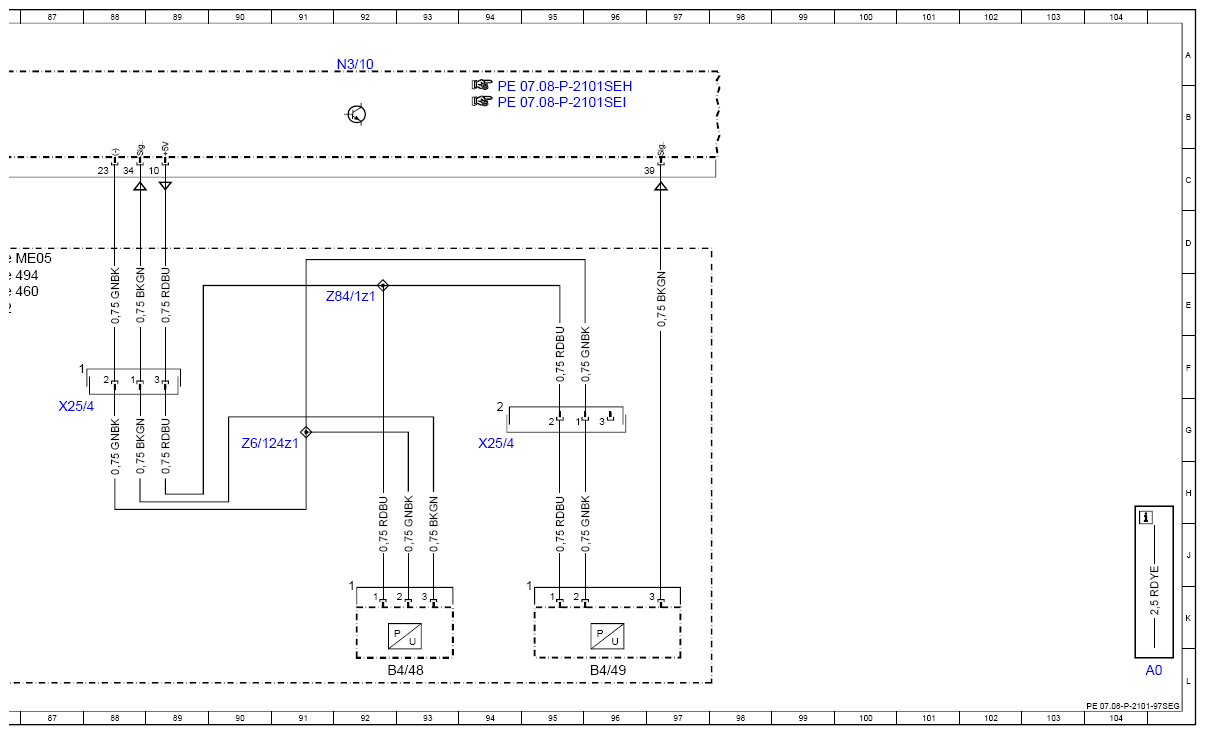

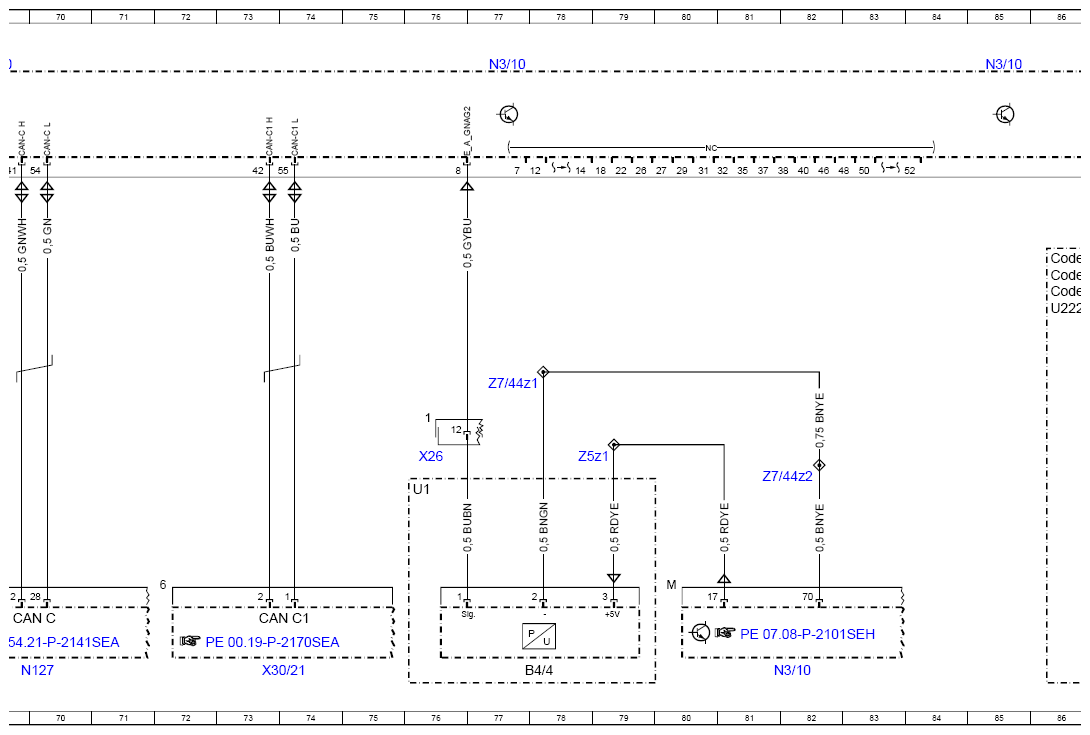

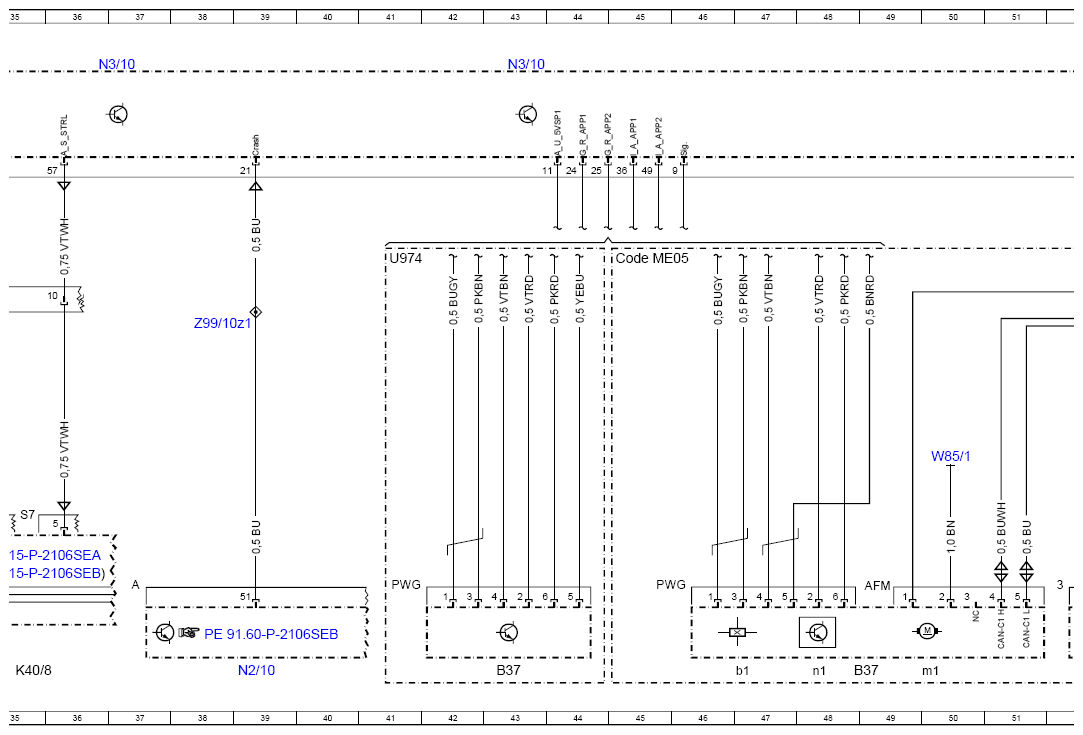

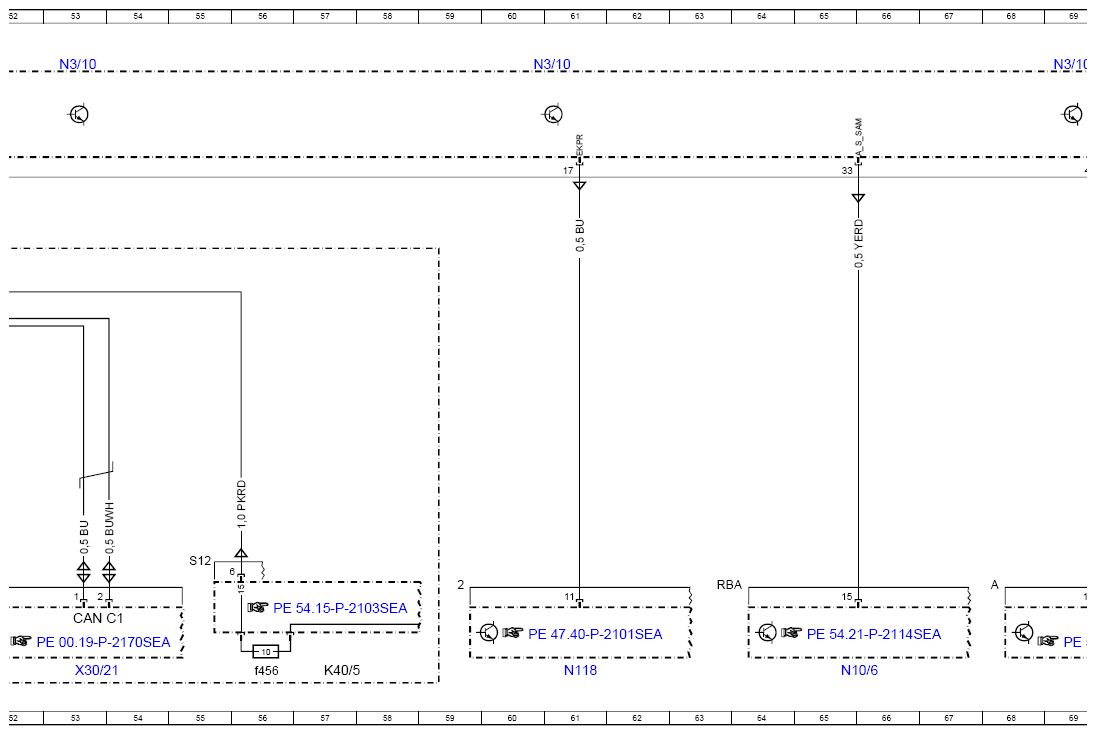

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97SEG
Engine 276.8 in model 222 up to model year 2018 Control unit N3/10, on vehicle side
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 105L |
| A101 | Fuel tank diagnostic module | 24L |
| B11/15 | Radiator sensor for engine diagnosis | 8L |
| B37 | Accelerator pedal sensor | 43L |
| B37 | Accelerator pedal sensor | 49L |
| B37b1 | Accelerator pedal module sensor | 47L |
| B37m1 | Accelerator pedal module actuator motor | 50L |
| B37n1 | Accelerator pedal module control unit | 48L |
| B4/4 | Purging pressure sensor | 78L |
| B4/48 | Fuel tank pressure sensor 1 | 92L |
| B4/49 | Fuel tank pressure sensor 2 | 96L |
| CAN C | Engine CAN | 69K |
| CAN C1 | Drive train CAN | 53K |
| CAN C1 | Drive train CAN | 73K |
| Code 460 | Canada version | 23F |
| Code 460 | Canada version | 12F |
| Code 460 | Canada version | 86E |
| Code 494 | USA version | 6D |
| Code 494 | USA version | 12F |
| Code 494 | USA version | 23F |
| Code 494 | USA version | 86E |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 45D |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 12F |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 86D |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f315 | Fuse 315 | 2K |
| K40/5 | Rear fuse and relay module | 57L |
| K40/5f456 | Fuse 456 | 56L |
| K40/8 | Engine fuse and relay module | 35L |
| K40/8f101 | Fuse 101 | 27L |
| K40/8f103 | Fuse 103 | 29L |
| K40/8f126 | Fuse 126 | 33L |
| N10/6 | Front SAM control unit | 65L |
| N118 | Fuel pump control unit | 61L |
| N127 | Drivetrain control unit | 70L |
| N2/10 | Supplemental restraint system control unit | 39L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 43A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 53A |
| N3/10 | ME-SFI [ME] control unit | 82L |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 69A |
| N3/10 | ME-SFI [ME] control unit | 77A |
| N3/10 | ME-SFI [ME] control unit | 85A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 92A |
| U1 | Valid for USA | 76H |
| U222 | Valid for Korea | 23F |
| U222 | Valid for Korea | 12G |
| U222 | Valid for Korea | 86E |
| U974 | Not valid for hybrid drive | 41D |
| W25 | ME/CDI control unit ground point | 3E |
| W85/1 | Driver footwell frame floor assembly ground point | 50H |
| W85/2 | Front passenger footwell frame floor assembly ground point | 6L |
| X18/7 | Vehicle interior and engine compartment electrical connector | 7H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 27E |
| X18/7 | Vehicle interior and engine compartment electrical connector | 33E |
| X25/4 | Fuel tank electrical connector | 94G |
| X25/4 | Fuel tank electrical connector | 87G |
| X26 | Interior and engine wiring harness electrical connector | 76H |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 53L |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 73L |
| Y123 | Left active engine mount | 18L |
| Y123/1 | Right active engine mount | 19L |
| Y58/1 | Purge control valve | 10L |
| Y58/5 | Fuel tank shutoff valve | 16L |
| Y75/1 | Fuel vapor shutoff valve | 14L |
| Y93 | Exhaust flap switchover valve | 21L |
| Z1z4 | Circuit 31 connector sleeve | 7E |
| Z50/5z1 | Tml. 15 connector sleeve | 31E |
| Z57/17z1 | Engine mount connector sleeve | 17G |
| Z5z1 | Connector sleeve in wiring harness | 79G |
| Z6/124z1 | Tank pressure sensor ground connection connector sleeve | 90G |
| Z7/44z1 | Sensor ground connector sleeve | 77F |
| Z7/44z2 | Sensor ground connector sleeve | 82H |
| Z7/48z1 | Circuit 87/2 connector sleeve | 10E |
| Z7/73z1 | Circuit 87M4 connector sleeve | 30E |
| Z84/1z1 | Tank pressure sensor power supply connector sleeve | 92E |
| Z99/10z1 | Connector sleeve, crash signal | 38E |
