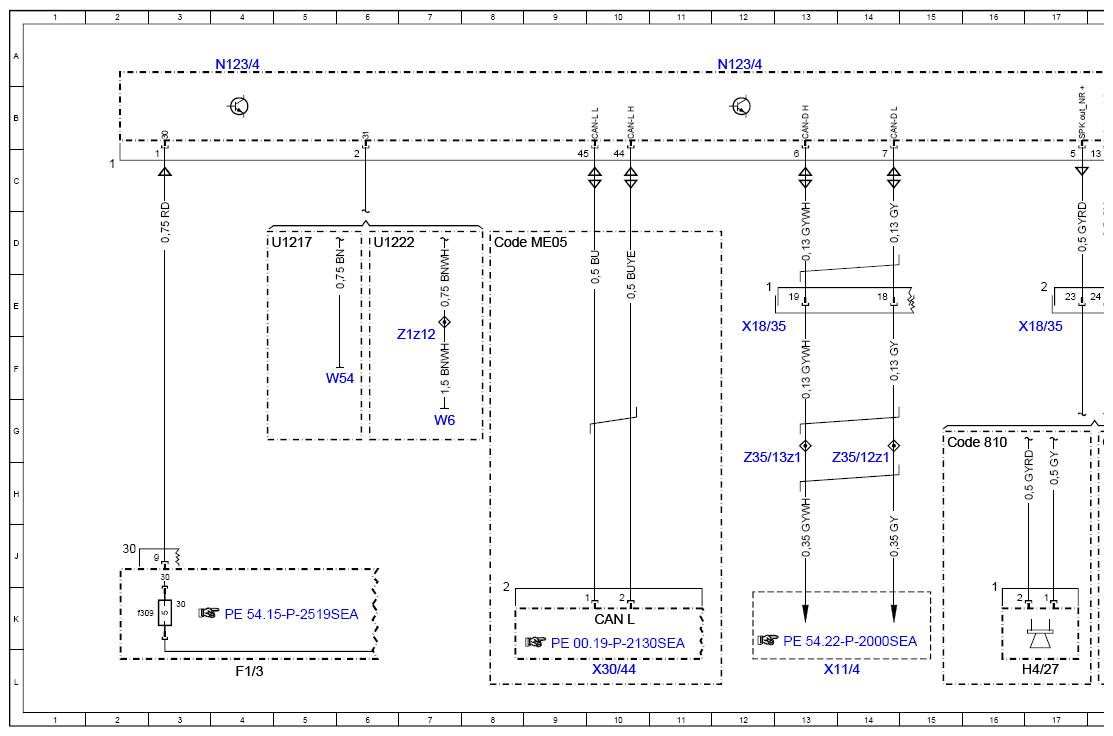

Wiring Diagram For Emergency Call System Control Unit - PE82.95-P-2101-97SEA
Model 217 Up To Model Year 2018 With Code 348 (Emergency call/assistant system) Control unit N123/4
Model 222 Up To Model Year 2018 With Code 348 (Emergency call/assistant system) Control unit N123/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A2/25 | Emergency call system antenna splitter | 54L |
| A2/49a1 | Telematics services antenna | 48L |
| A2/49a2 | GPS antenna | 41L |
| A2/5 | Global positioning system antenna splitter | 39L |
| A2/54 | Left emergency call system antenna | 56L |
| A2/55 | Right emergency call system antenna | 51L |
| A28/11 | Multifunction antenna | 45L |
| A40/3 | COMAND control unit | 22L |
| A40/3 | COMAND control unit | 27L |
| A40/3 | COMAND control unit | 31L |
| CAN L | Hybrid CAN | 10K |
| Code 810 | Sound system | 15G |
| Code 810 | Sound system | 25E |
| Code 810 | Sound system | 29E |
| Code 811 | Advanced sound system | 18G |
| Code 811 | Advanced sound system | 25E |
| Code 811 | Advanced sound system | 29E |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 8D |
| F1/3 | Right A-pillar fuse box | 4L |
| F1/3f309 | Fuse 309 | 2K |
| H4/27 | Center instrument panel speaker | 17L |
| H4/78 | Center instrument panel midrange speaker | 19L |
| N123/4 | Emergency call system control unit | 12A |
| N123/4 | Emergency call system control unit | 4A |
| N123/4 | Emergency call system control unit | 20A |
| N123/4 | Emergency call system control unit | 28A |
| N123/4 | Emergency call system control unit | 36A |
| N123/4 | Emergency call system control unit | 44A |
| N123/4 | Emergency call system control unit | 52A |
| N2/10 | Supplemental restraint system control unit | 35L |
| N40/3 | Sound system amplifier control unit | 27L |
| N40/3 | Sound system amplifier control unit | 26L |
| N40/3 | Sound system amplifier control unit | 31L |
| N40/3 | Sound system amplifier control unit | 31L |
| U1217 | Valid for model series 217 | 4D |
| U1217 | Valid for model series 217 | 20D |
| U1217 | Valid for model series 217 | 29D |
| U1217 | Valid for model series 217 | 41D |
| U1217 | Valid for model series 217 | 47D |
| U1222 | Valid for model series 222 | 6D |
| U1222 | Valid for model series 222 | 20D |
| U1222 | Valid for model series 222 | 24D |
| U1222 | Valid for model series 222 | 43D |
| U296 | Not valid for expanded sound system | 25E |
| U296 | Not valid for expanded sound system | 29E |
| U500 | Not valid for sound system | 25E |
| U500 | Not valid for sound system | 29E |
| W54 | Right rear wheel well ground point | 5F |
| W6 | Left wheel arch trunk ground point | 7G |
| X11/4 | Diagnostic connector | 13L |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 12E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 17E |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 10L |
| Z14z1 | Seat occupied LIN (LIN E2) connector sleeve | 35E |
| Z1z12 | Circuit 31 connector sleeve | 7F |
| Z35/12z1 | Diagnostic CAN (CAN D) low connector sleeve | 14G |
| Z35/13z1 | Diagnostic CAN (CAN D) high connector sleeve | 12G |
