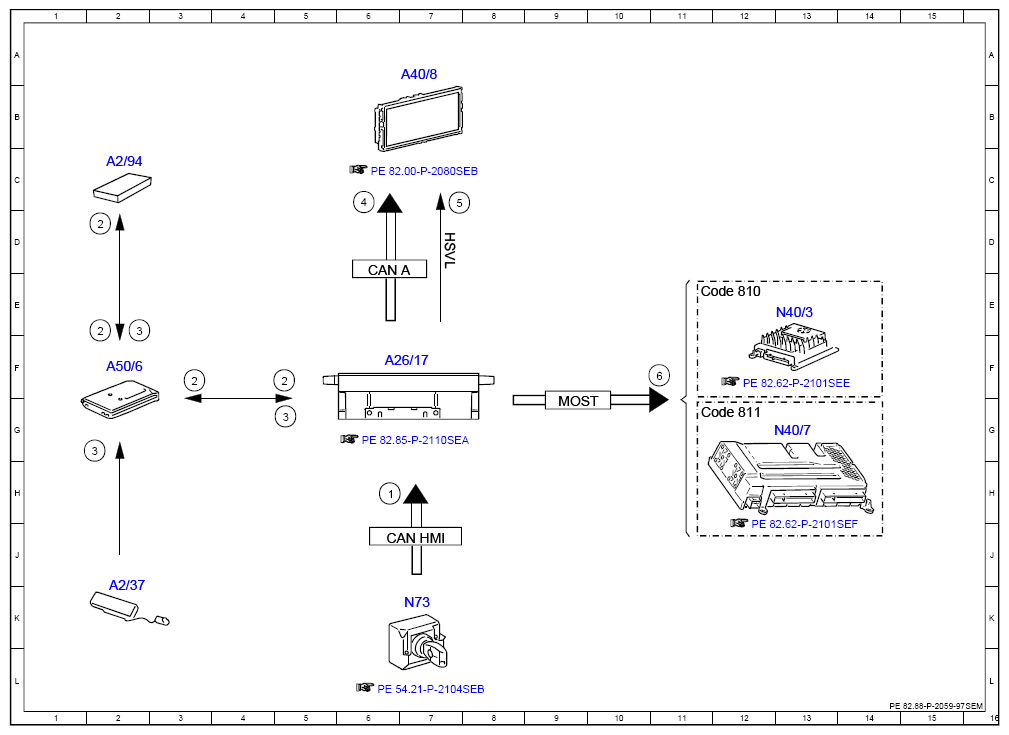

Electrical Function Schematic For Dedicated Short-Range Communications - PE82.88-P-2059-97SEM
Model 217, 222 As Of Model Year 2018 With Code 498 (Japanese version) Dealer option
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6H |
| 2 | Electronic Toll Collection (ETC), signal | 5F |
| 2 | Electronic Toll Collection (ETC), signal | 3F |
| 2 | Electronic Toll Collection (ETC), signal | 2E |
| 2 | Electronic Toll Collection (ETC), signal | 2D |
| 3 | Vehicle Information and Communication System (VICS), signal | 5G |
| 3 | Vehicle Information and Communication System (VICS), signal | 2E |
| 3 | Vehicle Information and Communication System (VICS), signal | 2G |
| 4 | Switch-on request, signal | 6C |
| 5 | Audio/COMAND display, actuation | 7C |
| 6 | Voice output, signal | 11F |
| A2/37 | Vehicle Information and Communication System (VICS) control unit | 2K |
| A2/94 | DSRC antenna | 2C |
| A26/17 | Head unit | 6F |
| A40/8 | Audio/COMAND display | 7A |
| A50/6 | Dedicated Short-Range Communications control unit | 2F |
| CAN A | Telematics CAN | 6E |
| CAN HMI | User interface CAN | 7J |
| Code 810 | Sound system | 11E |
| Code 811 | Advanced sound system | 11G |
| HSVL | High-speed video link | 7D |
| MOST | Media Oriented System Transport | 9G |
| N40/3 | Sound system amplifier control unit | 13E |
| N40/7 | Advanced sound system amplifier control unit | 13G |
| N73 | Electronic ignition switch control unit | 7K |
