Remove/Install Tail Lamp - AR82.10-P-4905LF
Model 222

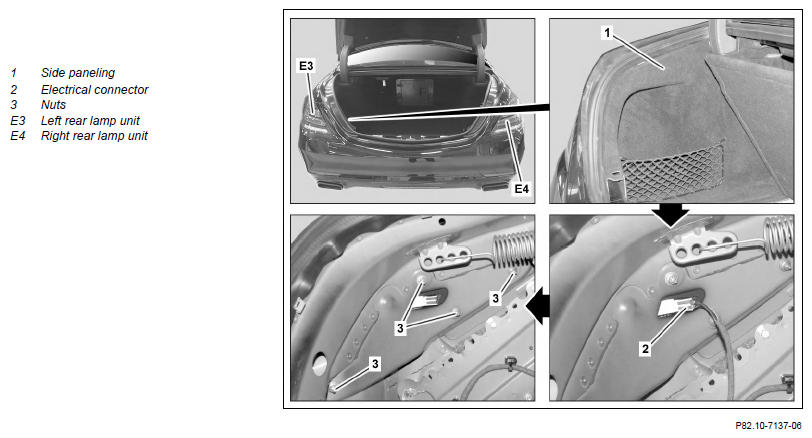

Shown on left rear lamp unit (E3)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Fold up load compartment floor | ||
| 2 | Release side paneling (1) in vicinity of left rear lamp unit (E3) or right rear lamp unit (E4) until nuts (3) are accessible | MODEL 222.0/1 | AR68.30-P-4600LF |
| 3 | Remove bass module speaker | MODEL 222 with CODE 811 (Advanced sound system) Only with left rear lamp unit (E3). |
|
| AR82.62-P-7839LF | |||
| 4 | Disconnect electrical connector (2) from left rear lamp unit (E3) or right rear lamp unit (E4) | ||
| 5 | Unscrew nuts (3) | ||
| 6 | Remove left rear lamp unit (E3) and right rear lamp unit (E4) | ||
| 7 | Install in the reverse order |
