Remove/Install Remote Parking Pilot/Stationary Heater/Telephony Antenna Splitter - AR82.70-P-0013LFM
Model 217.3, 222
As Of Model year 2018
With Code 379 (Telephone module with Bluetooth® (SAP profile))
With Code 503 (Remote-controlled parking)
Model 217.3, 222
As Of Model year 2018
With Code 379 (Telephone module with Bluetooth® (SAP profile))
With Code B24 (Remote control for Auxiliary heating)
Model 217.3, 222
As Of Model year 2018
With Code 503 (Remote-controlled parking)
With Code 899 (Multifunction telephony)
Model 217.3, 222
As Of Model year 2018
With Code 899 (Multifunction telephony)
With Code B24 (Remote control for Auxiliary heating)
Model 222
As Of Model year 2018
With Code 386 (Comfort telephony)
With Code 503 (Remote-controlled parking)
Model 222
As Of Model year 2018
With Code 386 (Comfort telephony)
With Code B24 (Remote control for Auxiliary heating)

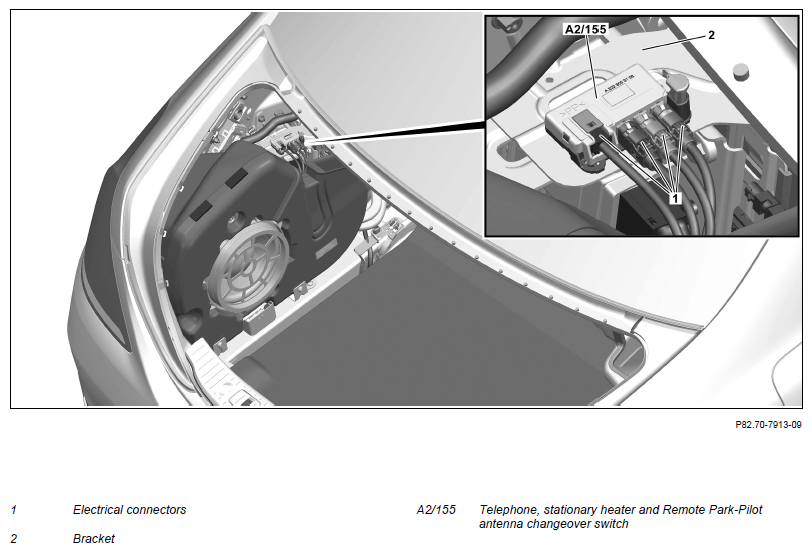

Shown in Model 222 With Code 811 (Advanced Sound System)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove left cover from trunk | Model 217.3 | AR68.30-P-4600LC |
| Model 222 | AR68.30-P-4600LF | ||
| 3 | Separate electrical connections (1) | ||
| 4 | Disassemble and remove the telephone, auxiliary heater, and Remote Parking Pilot aerial switch (A2/155) from the bracket (2) | ||
| 5 | Install in the reverse order |
