Remove/Install Rear Fog Lamp - AR82.10-P-5105LF
Model 222
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Lift vehicle on vehicle lift | ||

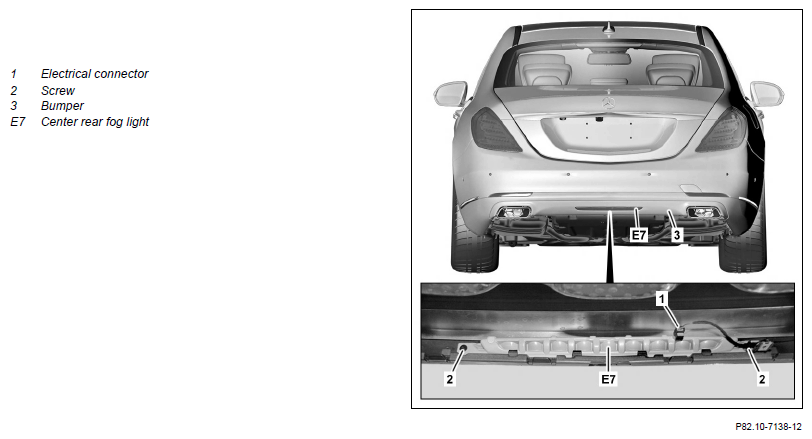

| 2 | Disconnect electrical connector (1) | ||
| 3 | Remove bolts (2) | ||
| 4 | Remove center rear fog light (E7) from bumper (3) | ||
| 5 | Install in the reverse order |
