Remove/Install Radio, Central Locking And Keyless-Go Antenna Amplifier - AR82.62-P-8307LF
Model 217.3, 222
MODIFICATION NOTES
| 04.12.2019 | Document completely revised. |
Shown on Model 222 With Code 413 (Panoramic sliding roof)
Shown on Model 222 With Code 413 (Panoramic sliding roof)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | |

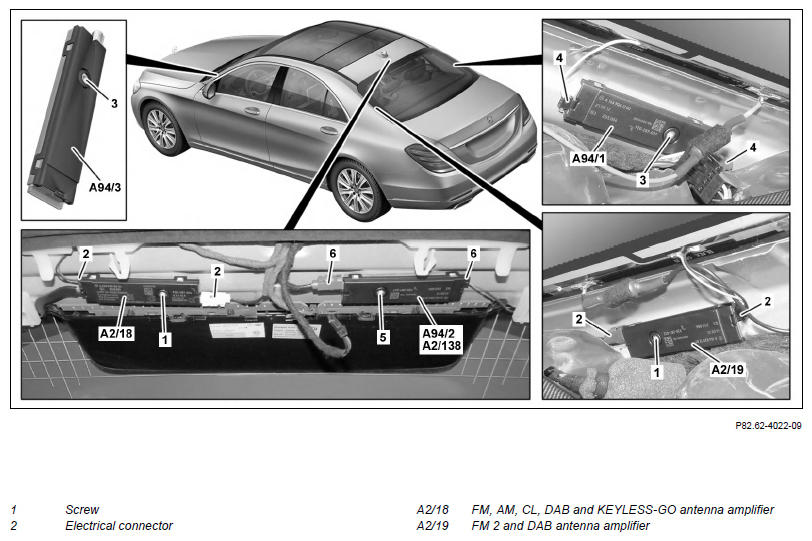

| Remove, install FM, AM, ZV, DAB and KEYLESS-GO (A2/18) antenna amplifier | |||

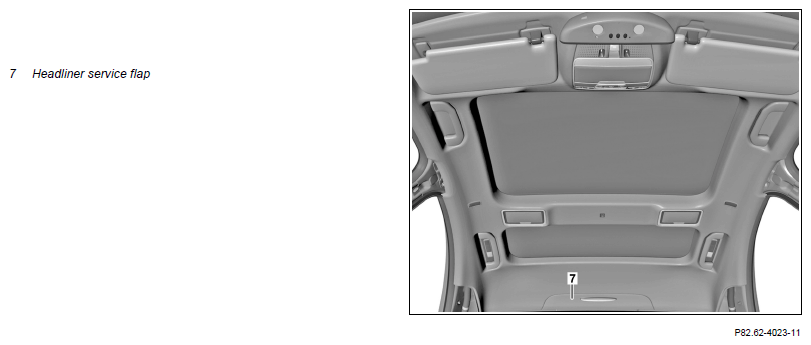

| 1.1 | Remove roof lining service flap (7). | Model 222.9 except code Z07 (B7 armoring on special protection version) |
|
| 1.2 | Remove rear section of roof lining. | Model 222.9 with code Z07 (B7 armoring on special protection version) |
|
| AR68.30-P-4307LFS | |||
| 2 | Release and disconnect electrical connectors (2). | Avoid strain relief on electrical lines. Otherwise there will be damage to the contact strips. |
|
| 3 | Loosen screw/bolt (1). | ||
| 4 | Unclip and remove the FM, AM, ZV, DAB and KEYLESS-GO (A2/18) antenna amplifier. | ||
| 5 | Install in the reverse order. | ||
| Remove/install FM 2 and DAB antenna amplifier (A2/19) | |||
| 6 | Remove trim at left from C-pillar. | Model 217.3 | AR68.30-P-4490LC |
| Model 222.0/1 | AR68.30-P-4490LF | ||
| Model.222.9 | AR68.30-P-4490LFA | ||
| 7 | Release and disconnect electrical connectors (2). | Avoid strain relief on electrical lines. Otherwise there will be damage to the contact strips. |
|
| 8 | Loosen screw/bolt (1). | ||
| 9 | Unclip and remove FM 2 and DAB (A2/19) antenna amplifier. | ||
| 10 | Install in the reverse order. |
