Remove/Install Outer Mirror Ambient Lamp - AR82.10-P-0001LW
Model 205, 238, 253, 293
With Code P49 (Mirror package)
Model 213, 217, 222
| Remove/install | |||
| 1 | Remove glass adjustment drive. | AR88.70-P-9060LF | |
| 2 | Remove 360° camera in outside mirror. | Model 205.0/1/2, 253.9 up to model year 2016 with code 501 (360° camera) with code P49 (Mirror package) |
AR54.30-P-3002LW |
| Model 205.0/1/2, 253.9 as of model year 2016 with code 501 (360° camera) with code P49 (Mirror package) Model 205.3/4, 238, 253.3 with code 501 (360° camera) with code P49 (Mirror package) Model 213 with code 501 (360° camera) Model 293 with code 501 (360° camera) with code P49 (Mirror package) |
AR54.65-P-3002LW | ||
| Model 217, 222 with code 501 (360° camera) |
AR54.30-P-3002LF | ||
| 3 | Disconnect electrical connector (1). | ||

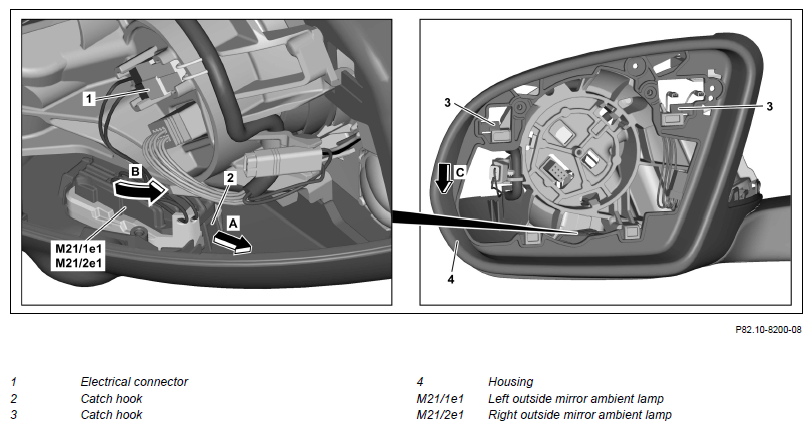

| 4 | Release left outside mirror surround lamp (M21/1e1) or right outside mirror surround lamp (M21/2e1) from catch hook (2) (arrow A) | ||
| 5 | Release catch hooks (3) from housing (4). | ||
| 6 | Extend left outside mirror surround lamp (M21/1e1) or right outside mirror surround lamp (M21/2e1) (arrow B), pushing housing (4 slightly downward while doing so (arrow C). | Carefully push housing (4) downwards, and not too far. Otherwise, the housing (4) may be damaged. |
|
| 7 | Install in the reverse order. |
