Remove/Install NFC Antenna - AR82.62-P-0004LFM
Model 217, 222
With Code 897 (Front wireless telephone charging)
Model 217, 222
With Code 899 (Multifunction telephony)

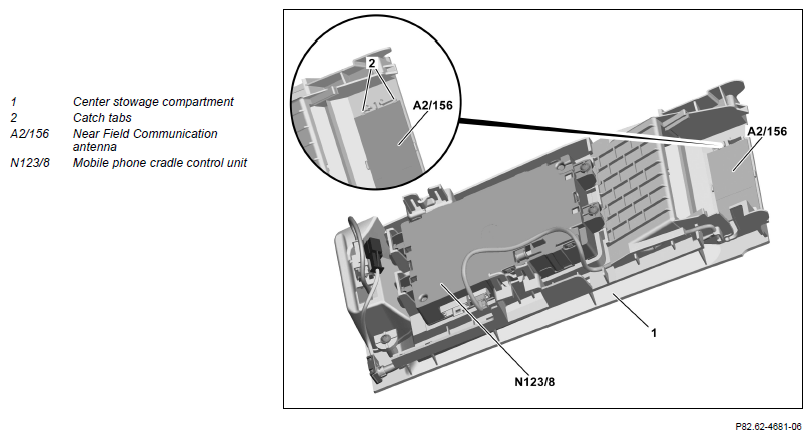

Shown on Model 222 With Code 897 (Wireless mobile phone charging) Except Code 582 (Air conditioning system in rear)

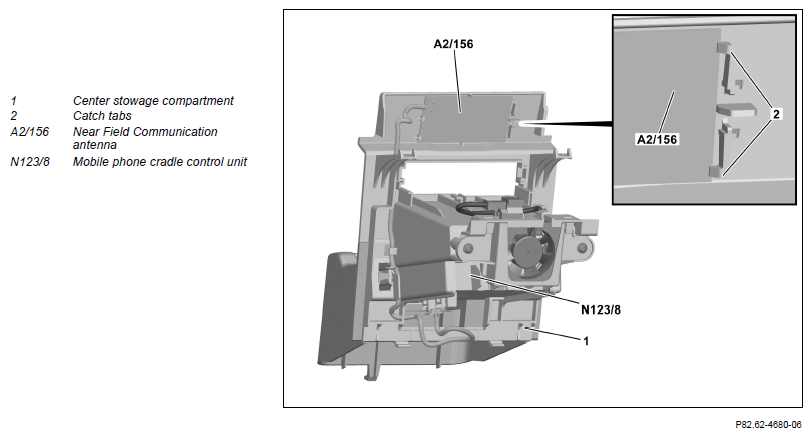

Shown on Model 222 With Code 897 (Wireless mobile phone charging) and With Code 582 (Air conditioning system in rear)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove center stowage compartment | Model 217.4 | AR68.10-P-1620LFA |
| Model 217.3, 222 | AR68.10-P-1620LFM | ||
| 2 | Unlock catch lugs (2) | Carefully release catch tabs (2). Otherwise, catch tabs (2) break off. |
|
| 3 | Remove near field communication antenna (A2/156) from center stowage compartment (1), and thread out electrical wiring harness | ||
| 4 | Disconnect near field communication antenna (A2/156) at mobile phone cradle control unit (N123/8) | ||
| 5 | Install in reverse order |
