Remove/Install Antenna Splitter - AR82.70-P-8953LF
Model 217
With Code 348 (Emergency call/assistant system)
Model 217
With Code B54 (Live Traffic Information)
Model 222.0/1
With Code 348 (Emergency call/assistant system)
Model 222.0/1
With Code B54 (Live Traffic Information)
MODIFICATION NOTES
| 25.02.2016 | Unlock electrical connectors on global positioning system antenna splitter (A2/5), disconnect and remove global positioning system antenna splitter (A2/5), added. | Operation step 4 |

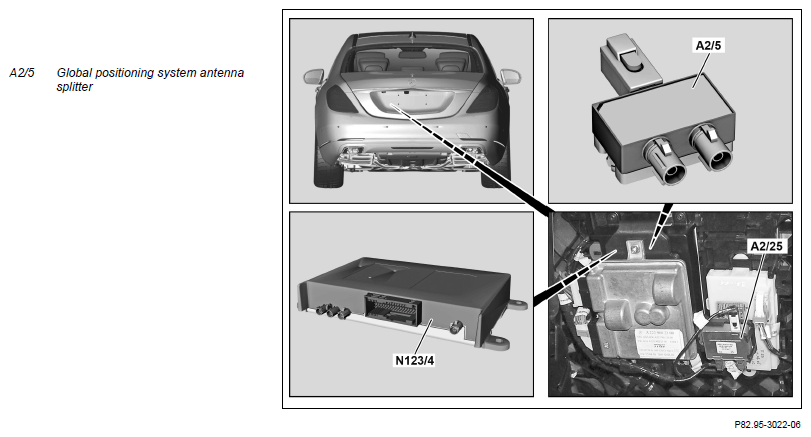

Shown on Model 222.032
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and keep all transmitter keys outside transmitter range (at least 2 m) | ||
| 2 | Remove front luggage compartment lining | Model 217.4 with code 348 (Emergency call/assistant system) Model 217.4 with code B54 (Live Traffic Information) |
AR68.30-P-4602LCA |
| Model 217.3 with code 348 (Emergency call/assistant system) Model 217.3 with code B54 (Live Traffic Information) |
AR68.30-P-4600LC | ||
| Model 222.0/1 with code 348 (Emergency call/assistant system) Model 222.0/1 with code B54 (Live Traffic Information) |
AR68.30-P-4600LF | ||
| 3 | Unclip global positioning system antenna splitter (A2/5) | ||
| 4 | Unlock electrical connectors on global positioning system antenna splitter (A2/5), disconnect and remove global positioning system antenna splitter (A2/5) | ||
| 5 | Install in the reverse order |
