Remove/Install Antenna - AR82.70-P-8951LF

Model 222

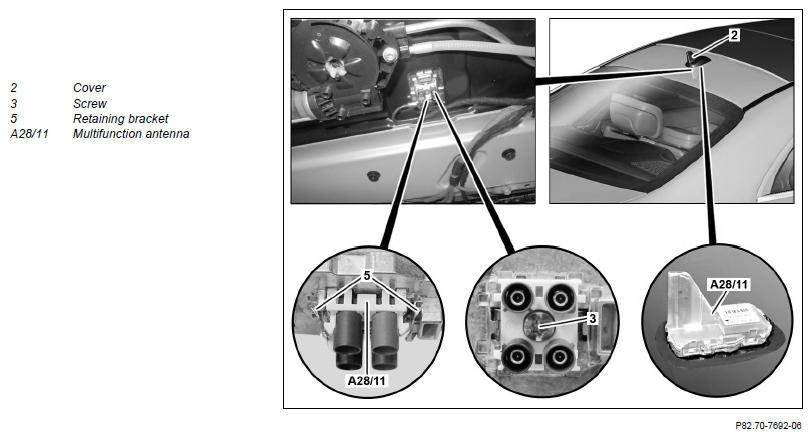

Shown With Code 413 (Panoramic sliding sunroof)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover (2) for multifunction antenna (A28/11)		AR82.70-P-8952EW
2.1	Remove headliner	Model 222.0 Model 222.1 Model 222.9 except code Z07 (Top protection)
		Model 222.1 Model 222.9 except code Z07 (Top protection)	AR68.30-P-4300LFN
		Model 222.0 Do not kink headliner or bend excessively. Otherwise cracks and breaks may occur at the headliner. The headliner remains in the vehicle.	AR68.30-P-4300LF
2.2	Remove rear section of roof lining	Model 222.9 with code Z07 (Top protection)
			AR68.30-P-4307LFS
		Do not kink rear section of roof lining or bend it excessively. Otherwise cracks and breaks may occur in the rear section of the roof lining. The headliner remains in the vehicle.
3	Disconnect electrical connectors on the multifunction antenna (A28/11)	The number of electrical connectors at the multifunction antenna (A28/11) may vary depending on the equipment installed.
4	Unscrew screw/bolt (3) until retaining bracket (5) are released	Bolt (3) remains at multifunction antenna (A28/11).
		Screw/bolt, antenna base to roof	*BA82.62-P-1001-01D
5	Remove multifunction antenna (A28/11) toward top
6	Install in the reverse order
