Remove/Install Active Engine Noise Compensation Speaker - AR82.62-P-0009LFM
Model 222 with engine 176
With Code 810 (Premium sound system)
Shown On Vehicle With Code 308 (Refrigeration compartment)
Shown On Vehicle With Code 308 (Refrigeration compartment)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and keep transmitter key outside transmitter range (at least 2 m) | ||
| 2 | Remove partition wall panel in trunk | AR68.30-P-4600LF | |

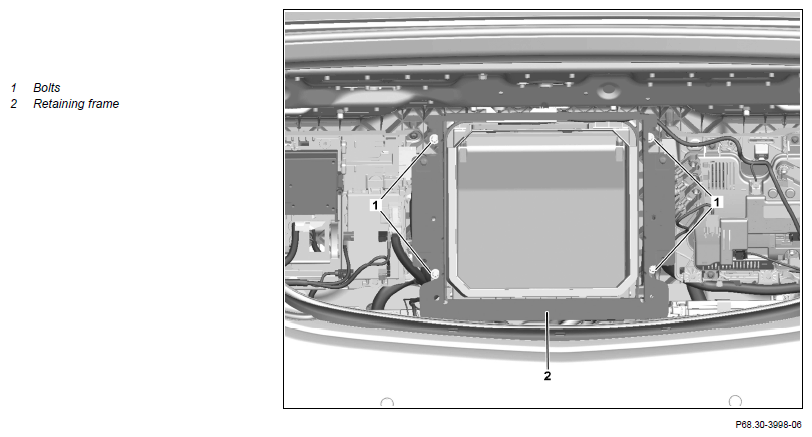

| 3 | Remove screws/bolts (1) and remove retaining frame (2) | Model 222 with engine 176 with code 282 (Ski and snowboard bag) with code 810 (Premium sound system) Model 222 with engine 176 with code 308 (Refrigerated compartment in rear passenger compartment) with code 810 (Premium sound system) |
|
| Topical note | Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | |

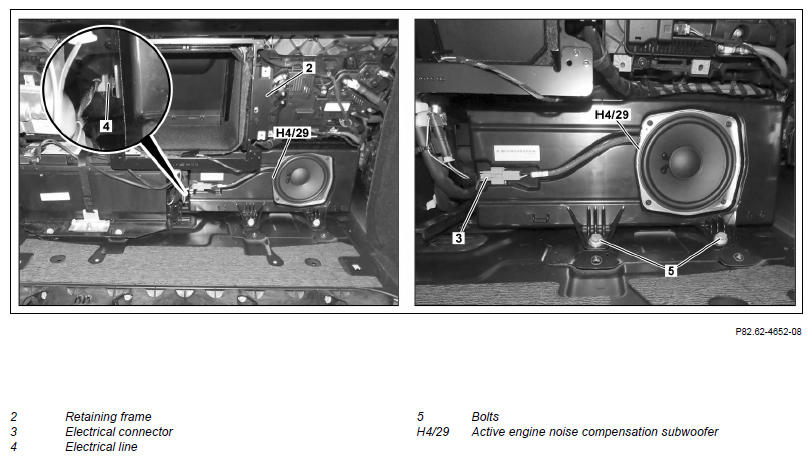

| 4 | Unclip electrical wiring harness on active engine noise compensation subwoofer (H4/29 | Model 222.### 2# with engine 176 with code 810 (Premium sound system) | |
| 5 | Disconnect electrical connection (3) | ||
| 6 | Unclip electric line (4) on active engine noise compensation subwoofer (H4/29) | ||
| 7 | Remove screws (5) | ||
| 8 | Remove active engine noise compensation subwoofer (H4/29) | ||
| 9 | Install in the reverse order |
