Check Wiper Arms - AR82.30-P-6000-01GZ

Model 164 up to 8/24/11, 166 up to 8/24/11

Model 222

Except Code 874 (MAGIC VISION CONTROL inch. Heated windshield washer system)

Model 251

TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 164 Model 166
BE82.30-P-1001-01J Angle of incidence of driver-side wiper arm in reversing position Left-hand drive vehicle ∠° -2, 0...-6, 0 -2, 0...-6, 0
Right-hand drive vehicle ∠° +2, 0...+6, 0 +2, 0...+6, 0
WIPER ARM TEST AND ADJUSTMENT VALUES

Number Designation MODEL 251.### 1# (left-hand drive vehicle) MODEL 251.### 2 (right-hand drive vehicle)
BE82.30-P-1001-01K Angle of incidence of wiper arm on driver-side in reversing position ∠° -2, 0...-6, 0 +2, 0...+6, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 222
BE82.30-P-1001-01M Angle of incidence of driver-side wiper arm in reversing position Left-hand drive vehicle ∠° -2, 4...-3, 0
Right-hand drive vehicle ∠° +2, 4...+3, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 164 Model 166
BE82.30-P-1002-01J Angle of incidence of passenger-side wiper arm in reversing position Left-hand drive vehicle ∠° -4, 0...-8, 0 -4, 0...-8, 0
Right-hand drive vehicle ∠° +4, 0...+8, 0 +4, 0...+8, 0
WIPER ARM TEST AND ADJUSTMENT VALUES

Number Designation MODEL 251.### 1# (left-hand drive vehicle) MODEL 251.### 2# (right-hand drive vehicle)
BE82.30-P-1002-01K Angle of incidence of wiper arm on front passenger side in reversing position ∠° -4, 0...-8, 0 +4, 0...+8, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 222
BE82.30-P-1002-01M Angle of incidence of passenger-side wiper arm in reversing position Left-hand drive vehicle ∠° -4, 0...-4, 2
Right-hand drive vehicle ∠° +4, 0...+4, 2
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 164 Model 166
BE82.30-P-1003-01J Angle of incidence of driver-side wiper arm in parked position Left-hand drive vehicle ∠° +2, 0...+6, 0 +2, 0...+6, 0
Right-hand drive vehicle ∠° -2, 0...-6, 0 -2, 0...-6, 0
WIPER ARM TEST AND ADJUSTMENT VALUES

Number Designation MODEL 251.### 1# (left-hand drive vehicle) MODEL 251.### 2# (right-hand drive vehicle)
BE82.30-P-1003-01K Angle of incidence of wiper arm on driver-side in parked position ∠° +2, 0...+6, 0 -2, 0...-6, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 222
BE82.30-P-1003-01M Angle of incidence of driver-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 6...+5, 4
Right-hand drive vehicle ∠° -3, 6...-5, 4
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 164 Model 166
BE82.30-P-1004-01J Angle of incidence of passenger-side wiper arm in parked position Left-hand drive vehicle ∠° +4, 0...+8, 0 +4, 0...+8, 0
Right-hand drive vehicle ∠° -4, 0...-8, 0 -4, 0...-8, 0
WIPER ARM TEST AND ADJUSTMENT VALUES

Number Designation MODEL 251.### 1# (left-hand drive vehicle) MODEL 251.### 2# (right-hand drive vehicle)
BE82.30-P-1004-01K Angle of incidence of wiper arm on front passenger side in parked position ∠° +4, 0...+8, 0 -4, 0...-8, 0
TEST AND ADJUSTMENT VALUES FOR WIPER ARMS

Number Designation Model 222
BE82.30-P-1004-01M Angle of incidence of passenger-side wiper arm in parked position Left-hand drive vehicle ∠° +3, 4...+5, 6
Right-hand drive vehicle ∠° -3, 4...-5, 6
Fig 1: Identifying Adapter (211 589 05 21 00)
G15400265Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Adjusting Tool Set (211 589 02 21 00)
G15400266Courtesy of MERCEDES-BENZ USA

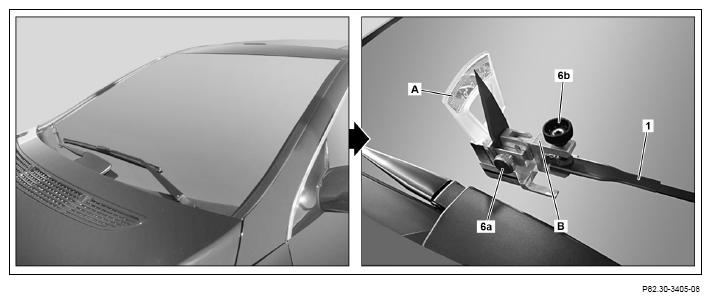

  1. Remove angle gauge (A) from the SPECIAL TOOL adjustment tool set
  2. SPECIAL TOOL Insert adapter (B) into guide of angle gauge (A) and fix in place with screw/bolt (6a) at angle gauge (A).
  3. Position wiper arm (1) to be adjusted in reversing position
  4. SPECIAL TOOL Slide adapter (B) together with angle gauge (A) onto wiper blade mount of wiper arm (1) to be adjusted and attach with screw/bolt (6b)
    G12081676Courtesy of MERCEDES-BENZ USA
  5. Lower wiper arm (1) to be adjusted carefully onto windshield.

    IMPORTANT All three contact points at the foot of the angle gauge (A) must make contact with the windshield.

  6. Read off the angle of incidence of the wiper arm (1) to be adjusted in reversing position on the scale of the angle gauge (A), note down and compare to the corresponding specified value. Model 251.### 1# Model 251.### 2#

    Model 251.### 1#

    Model 251.### 2#

    Model 164 up to 8/24/11, 166 up to 8/24/11

    Model 164 up to 8/24/11, 166 up to 8/24/11

    Model 222

    except code 874 (MAGIC VISION CONTROL inch.

    Heated windshield washer system)

    Model 222

    except code 874 (MAGIC VISION CONTROL inch.

    Heated windshield washer system)

  7. Lift wiper arm 1) to be adjusted, loosen screw/bolt (6b) and remove SPECIAL TOOL adapter (B) together with angle gauge (A) from wiper arm (1) to be adjusted.
  8. Raise wiper arms (1), cover with appropriate aids (scratch protection) and set down on windshield.

    NOTES When changing from reversing position to parked position, ensure that the wiper arms (1) do not make direct contact with the windshield.

    Otherwise, the windshield may be scratched.

  9. Move wiper arms (1) to park position and remove aid (scratch protection) from wiper arms (1).
    G12081677Courtesy of MERCEDES-BENZ USA

    Shown on driver-side wiper arm (1)

  10. Repeat test procedures 3 to 6 at the wiper arm (1) to be adjusted in parked position. Model 164 up to 8/24/11, 166 up to 8/24/11

    Model 164 up to 8/24/11, 166 up to 8/24/11

    Model 251.### 1#

    Model 251.### 2#

    Model 251.### 1#

    Model 251.### 2#

    Model 222

    except code 874 (MAGIC VISION CONTROL inch.

    Heated windshield washer system)

    Model 222

    except code 874 (MAGIC VISION CONTROL inch.

    Heated windshield washer system)
