Prepare Vehicle For Checking/Correcting Headlamp Adjustment - AP82.10-P-8260-10HA

Model 222

Prepare vehicle for headlamp adjustment

Static LED headlamp, shown on Model 222

Courtesy of MERCEDES-BENZ USA

1. Before checking/correcting the headlamp adjustment, bring vehicle into ready-to-drive condition.

   Vehicle in ready-to-drive condition means:

   Correct tire pressure,

   Correctly calibrated vehicle level including zero position adjustment,

   Steering is in straight-ahead position.

   Model 222

   with code 487 (Active Body Control (ABC))

   The vehicle must be unladen.

   Identify chassis variants

   Check if steel springs are installed at front and rear axle or using the data card.

   Preparatory activity

2. Close doors.
3. Activate "Comfort" mode.

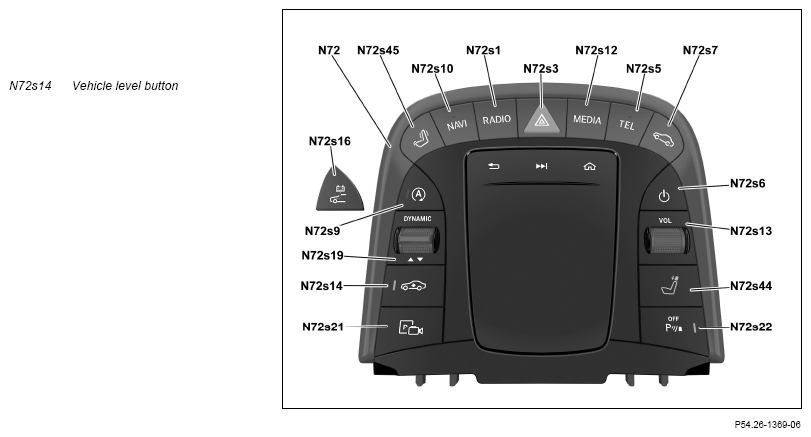

   View of lower control panel for vehicle With Code 446 (Touchpad only)

   Courtesy of MERCEDES-BENZ USA

4. Model 222

   with code 446 (Touchpad only)

   with code 487 (Active Body Control (ABC))

   Vehicle level button (N72s14) set to "Normal level", LED does not light up.

5. Model 222

   with code 446 (Touchpad only)

   with code 487 (Active Body Control (ABC))

   Press and hold down vehicle level button (N72s14) 5 s and move to calibrated vehicle level, LED lights up.

   Release vehicle level button (N72s14) immediately after 5 s.

   Otherwise the vehicle runs completely to the raised level.

   The calibrated vehicle level is automatically reset after a change in ignition status or vehicle speed ≥ 2 km/h.

   Once the vehicle has moved all the way to the raised level,

   ↓

   drive the vehicle at a vehicle speed of ≥ 2 km/h.
