Check Setting Of High Beam - AP82.10-P-8260-02HA

Model 222

Shown on Model 222.183 with ECE headlamp version

Courtesy of MERCEDES-BENZ USA

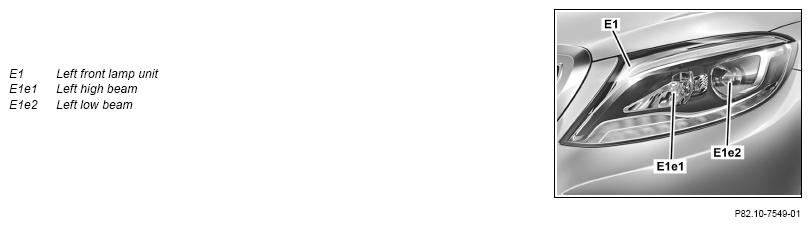

Static LED headlamp, shown on Model 222

Courtesy of MERCEDES-BENZ USA

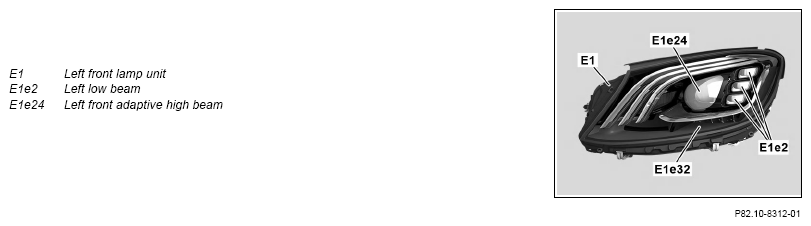

Dynamic LED headlamp, shown on Model 222 up to Model year 2018

Courtesy of MERCEDES-BENZ USA

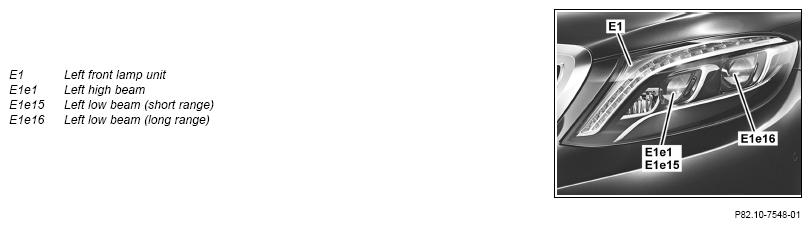

Dynamic LED headlamp, shown on Model 222 As Of Model year 2018

Courtesy of MERCEDES-BENZ USA

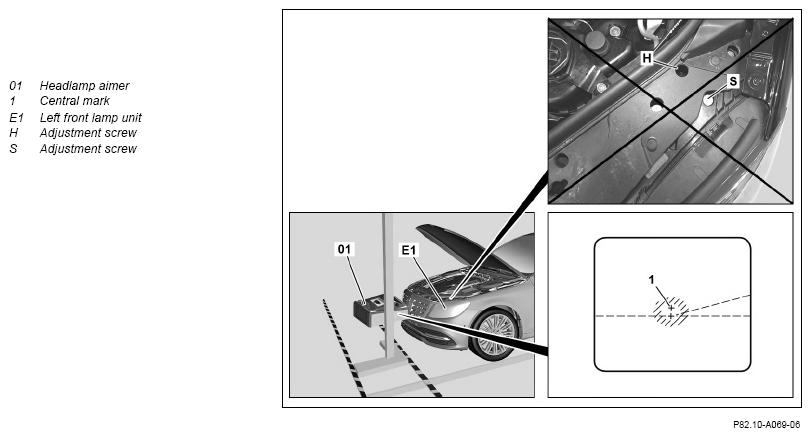

1. Align headlamp adjuster (01) parallel to the vehicle level with the left high beam (E1e1) or the front left adaptive high beam (E1e24) in the front left lamp unit (E1).

   Make sure that the headlamp adjuster (01) is aligned in front of the left high beam (E1e1) or front left partial high beam (E1e24) and not in front of left low beam (E1e2) or left low beam (short range) (E1e15) and left low beam (long range) (E1e16).

   Otherwise it is possible that the high beam will not be correctly adjusted.

   Proceed with the right along the same lines as the left.

2. Check setting of high beam.

   Do not perform any correction to headlamp adjustment screws (H, S).

   Otherwise, the previously adjusted low beams will be mis-adjusted.

   The center of the light beam must be positioned on the central mark (1) in the headlamp adjuster (01).

   If high beam setting is not correct,

   ↓

   rectify the problems.

   After obtaining special order.
