Rework Front CROSSMEMBER - Ar62.30-P-1570-03LF

Model 222

with code Z22 (Panic alarm system)

Courtesy of MERCEDES-BENZ USA

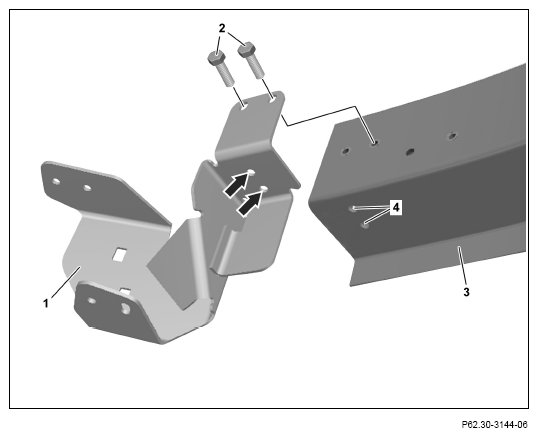

1. Screw bracket (1) with bolts (2) to crossmember (3).
2. Make two marks (4) through holes (arrows) in bracket (1) on crossmember.
3. Remove bracket (1) from crossmember (3).
4. Drill two holes with Ø 7 mm at marks (4) on crossmember (3).
5. Deburr holes.
6. Install bracket (1) on crossmember (3).
