Remove Protective Plate On Upper Front Longitudinal Member - Ar62.20-P-1286-06LFS

Model 222

with code Z07 (B7 armoring on special protection version)

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

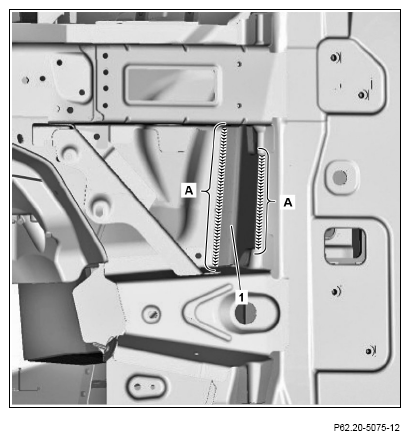

1. Expose weld seams on guard plate (1) and cut (areas A).
2. Remove guard plate (1).

Courtesy of MERCEDES-BENZ USA
