Remove Mounting Bracket On Lower Front Longitudinal Member - Ar62.20-P-1200-22LFS

Model 222

with code Z07 (B7 armoring on special protection version)

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

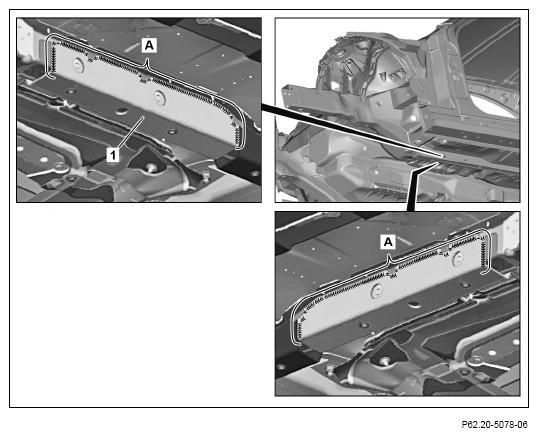

1. Expose weld seams on mounting console on lower front longitudinal member (1) and cut (areas A).

   Courtesy of MERCEDES-BENZ USA

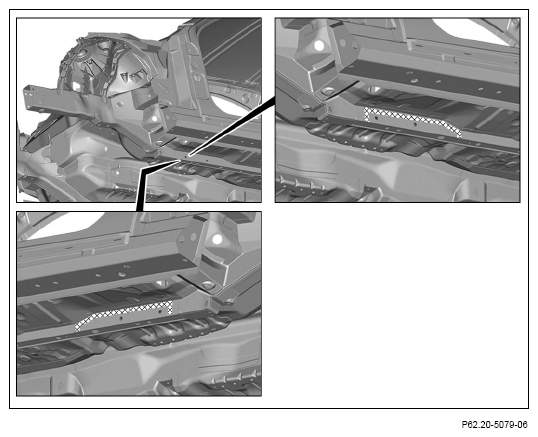

2. Grind mating surfaces down to bare metal in the cross-hatched inner C-pillar sidewall.
3. Remove grinding dust.

Courtesy of MERCEDES-BENZ USA
