Install Protective Plate On Upper Front Longitudinal Member - Ar62.20-P-1286-08LFS

Model 222

with code Z07 (B7 armoring on special protection version)

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

When MIG welding ( ) prepare welds by grinding down to bare metal with stainless steel brush. Tack weld weld seams at start and end. Weld seam gap should not be greater than 1 mm, if required, preweld.

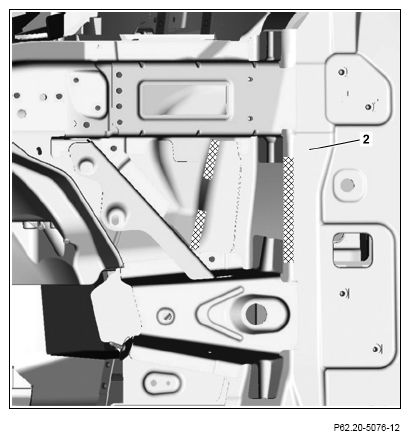

1. Grind mating surfaces on A-pillar (2) down to bare metal in crosshatched areas.
2. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA

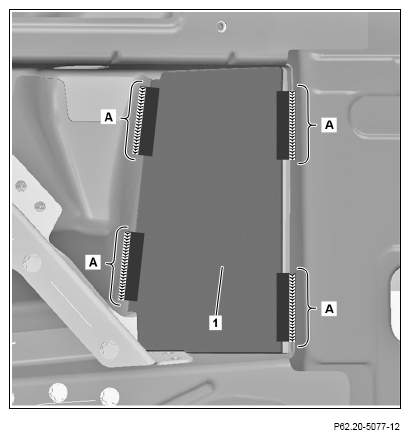

3. Install guard plate with adapter sheet metal panels (1) installed at the factory and fix in place.
4. Install guard plate with adapter sheet metal panels (1) (areas A).
