Remove/Install Brake Booster Vacuum Line - AR43.10-P-0355LF
Model 222 With Engine 276 (Except 276.9)
| Remove/install | |||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| 1 | Remove vacuum in brake booster | ||

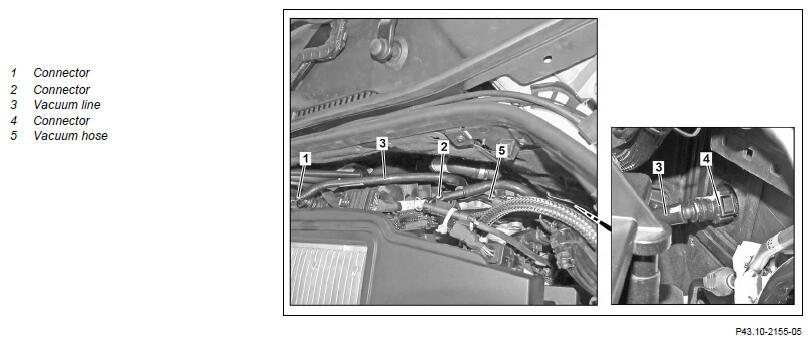

| 2 | Disconnect connector (1) of vacuum line (3) | ||
| 3 | Disconnect connector (2) of vacuum line (3) | ||
| 4 | Detach vacuum hose (5) | ||
| 5 | Disconnect connector (4) of vacuum line (3) and remove vacuum line (3) | ||
| 6 | Remove cover over brake fluid expansion reservoir | ||

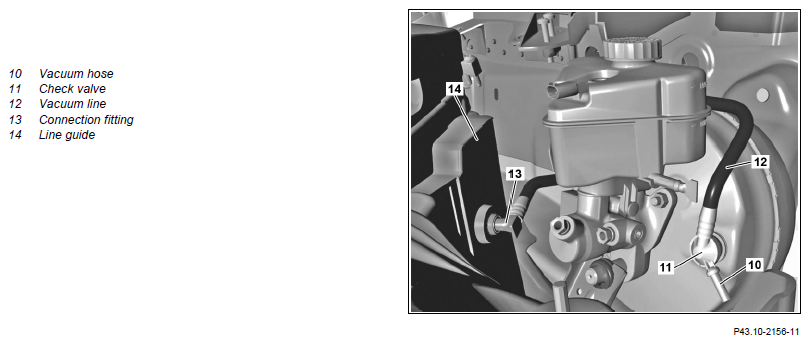

| 7 | Pull vacuum hose (10) off check valve (11) | ||
| 8 | Pull check valve (11) with vacuum line (12) out of brake booster | ||
| 9 | Unclip connection fitting (13) of vacuum line (12) from line guide (14) and remove vacuum line (12) | ||
| 10 | Install in the reverse order | ||
| 11 | Carry out brake test on the test stand | ||
| AP42.00-P-4290BA |
