(Remove/Install Brake Booster Vacuum Line - AR43.10-P-0355LFH)
Model 222.057/157 With Engine 276.9
| Remove/install | |||
| 1 | Release vacuum in BAS brake booster | ||

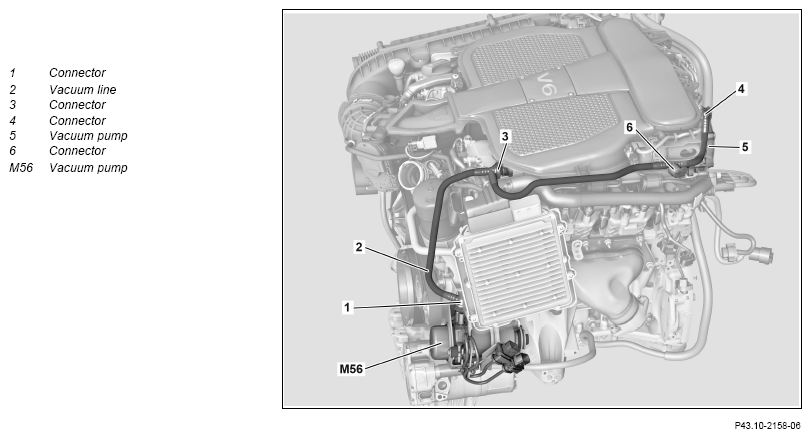

| 2 | Disconnect connector (1) of vacuum line (2) from vacuum pump (M56) | ||
| 3 | Disconnect connector (3) | ||
| 4 | Disconnect connector (4) from vacuum pump (5) | ||
| 5 | Disconnect connector (6) and remove vacuum line (2) | ||

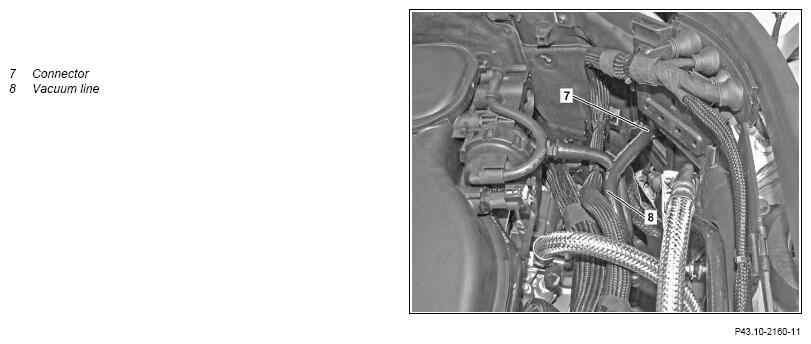

| 6 | Disconnect connector (7) and remove vacuum line (8) | ||

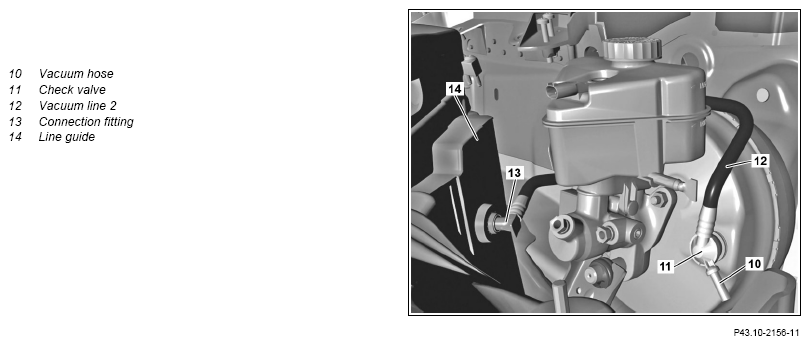

| 7 | Pull vacuum hose (10) off check valve (11) | ||
| 8 | Pull check valve (11) with vacuum line (12) out of BAS brake booster | ||
| 9 | Unclip connection fitting (13) of vacuum line (12) from line guide (14) and remove vacuum line (12) | ||
| 10 | Install in the reverse order | ||
| 11 | Carry out brake test on the test stand | ||
| AP42.00-P-4290BA |
