Remove/Install Brake Booster - AR43.10-P-0350LF

Model 217, 222

Shown on model 222

Courtesy of MERCEDES-BENZ USA

Shown on model 222

Courtesy of MERCEDES-BENZ USA

Shown on model 222

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Notice	Notes on externally invisible brake fluid loss		AH42.10-P-9406-02A
Notice	Brake fluid notes		AH42.50-P-0001-01A
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install

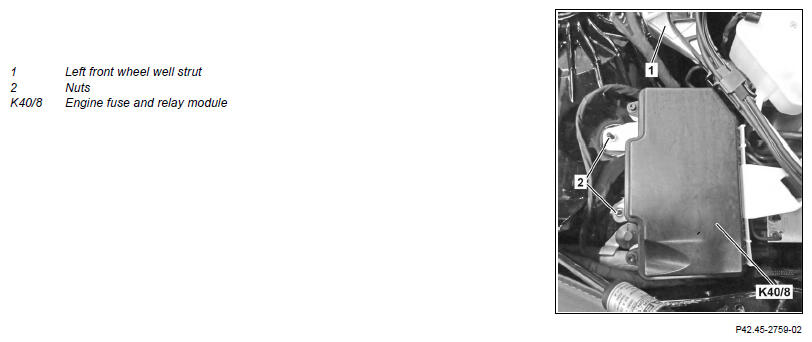

1	Remove left front wheel well strut (1)		AR82.30-P-6400LF
2	Unscrew nuts (2)
3	Remove engine fuse and relay module (K40/8) and place to one side
4	Remove brake vacuum sensor on BAS brake booster		AR43.10-P-0352LF

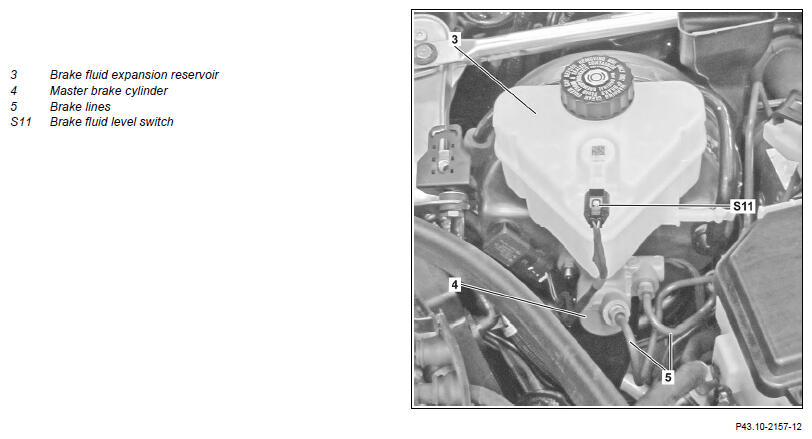

5	Suction off brake fluid from the brake fluid expansion reservoir (3).
	Clean
6	Clean the master brake cylinder (4) in the area of the brake line connections	Before opening the hydraulic system the area around the separation point should be cleaned thoroughly. Otherwise minute particles of dirt in the hydraulic components can result in malfunctions and total failure of the hydraulic system. Only use clean, lint free rags and cleaner free of mineral oil. Do not use any compressed-air for cleaning when the brake system is open.
		Assembly cleaner	*BR00.45-Z-1028-04A
7	Label brake lines (5) according to connections
8	Detach brake lines (5) from master brake cylinder (4)	Model 217.364/378/382/384/385/482 Model 217.377/379/477/479	*BA42.10-P-1003-04N
		Model 222 (except 222.077/177/178/179) Model 222.077/177/178/179 Retaining screw, brake line to master brake cylinder
		Record plug	Fig 1
9	Detach brake lines (5) on traction system hydraulic unit and turn to one side	Model 217.364/378/382/384/385/482 Model 217.377/379/477/479 Model 222 (except 222.077/177/178/179) Model 222.077/177/178/179 Retaining screw, brake line to hydraulic unit	*BA42.10-P-1004-04N
10	Disconnect electrical connector from brake fluid level switch (S11)
11	Remove left cover below dashboard	Model 217, 222.0/1/9	AR68.10-P-1500LF

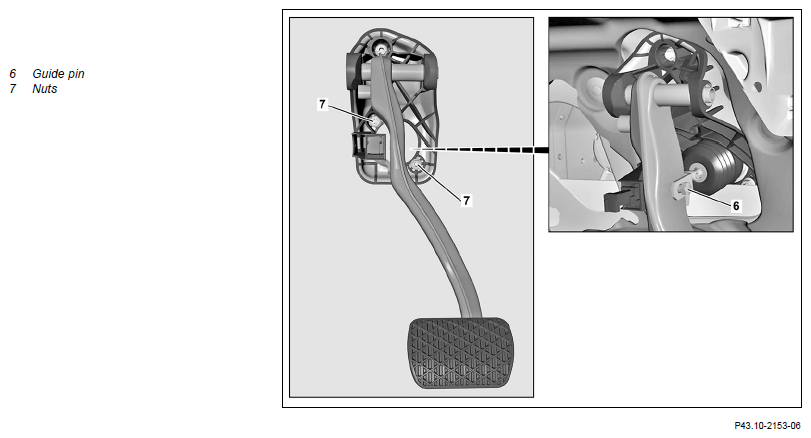

12	Remove guide pin (6)	Guide pin	*BA29.10-P-1002-02I
13	Unscrew nuts (7) of BAS brake booster	Nut, pedal assembly to firewall	*BA29.10-P-1001-02I
14	Remove BAS brake booster	If the boot of the BAS brake booster is damaged: ↓ Replace brake booster. If the brake lines (5) are permanently deformed: ↓ Install new brake lines (5).	AR42.10-P-0020B
15	Transfer master brake cylinder (4)	When replacing the BAS brake booster	AR42.10-P-0300LF
16	Install in the reverse order
	Check
17	Carry out brake test on the test stand
			AP42.00-P-4290BA

Fig 1: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
