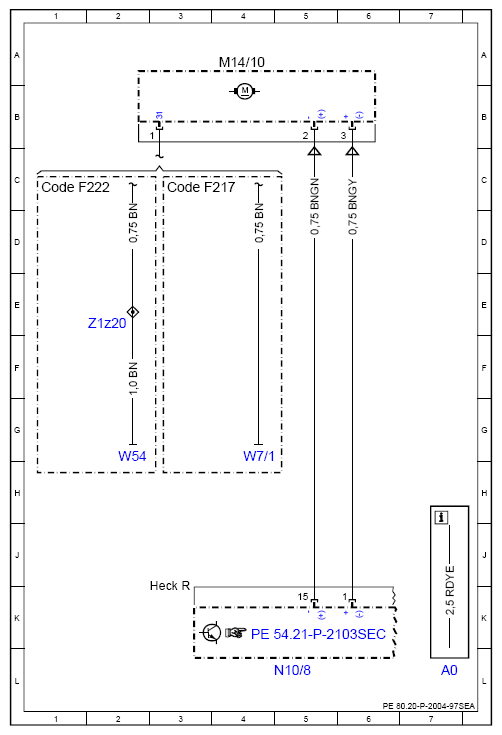

Wiring Diagram Of Central Locking (CL) - Tank Cap - PE80.20-P-2004-97SEA
Model 217, 222 as of model year 2018
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 7L |
| Code F217 | MODEL SERIES 217 | 3C |
| Code F222 | MODEL SERIES 222 | 1C |
| M14/10 | Tank cap central locking actuator | 4A |
| N10/8 | Rear SAM control unit | 5L |
| W54 | Right rear wheel well ground point | 2H |
| W7/1 | Right tail lamp trunk ground point | 4H |
| Z1z20 | Circuit 31 connector sleeve | 2E |
