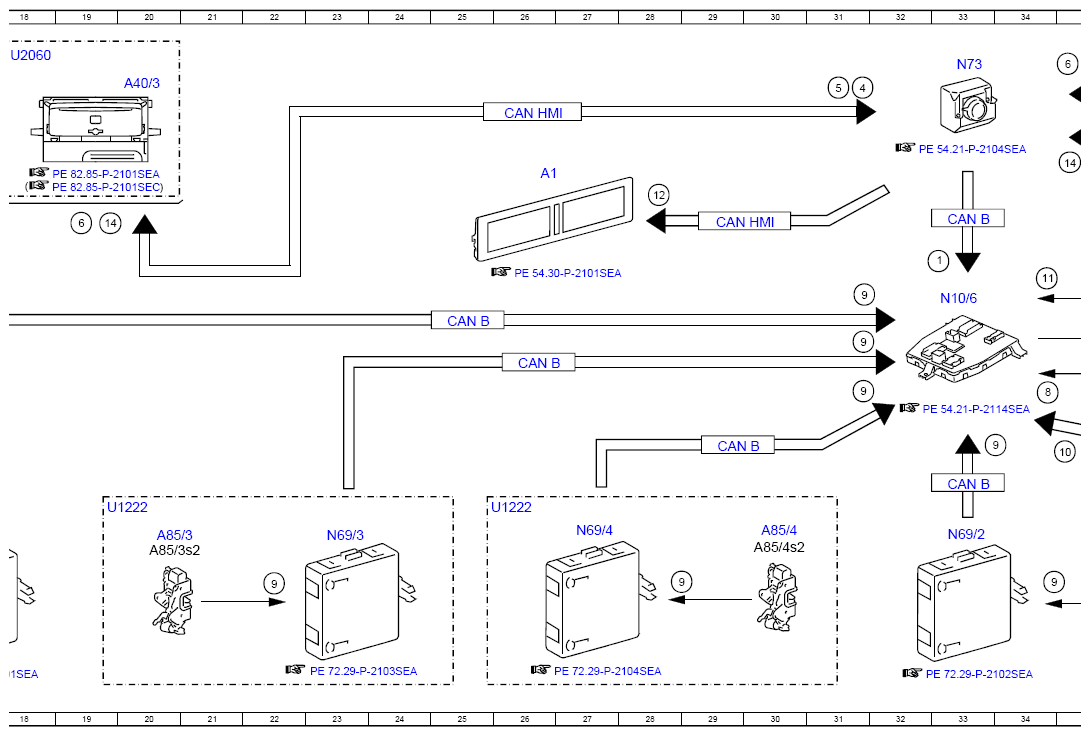

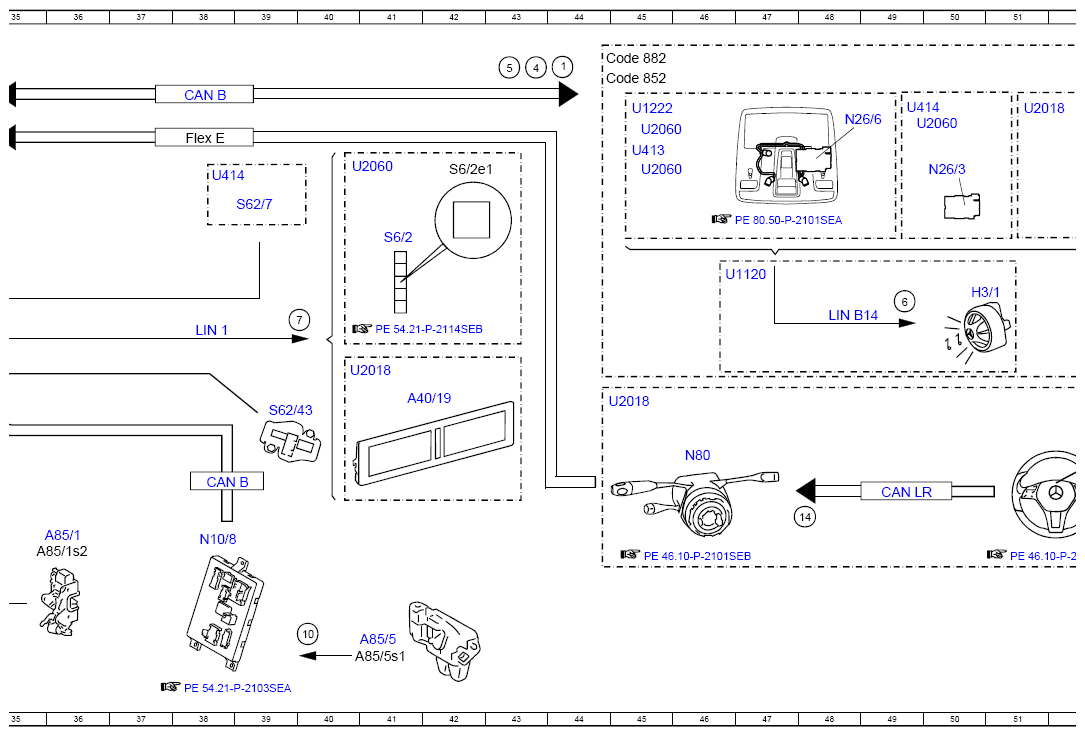

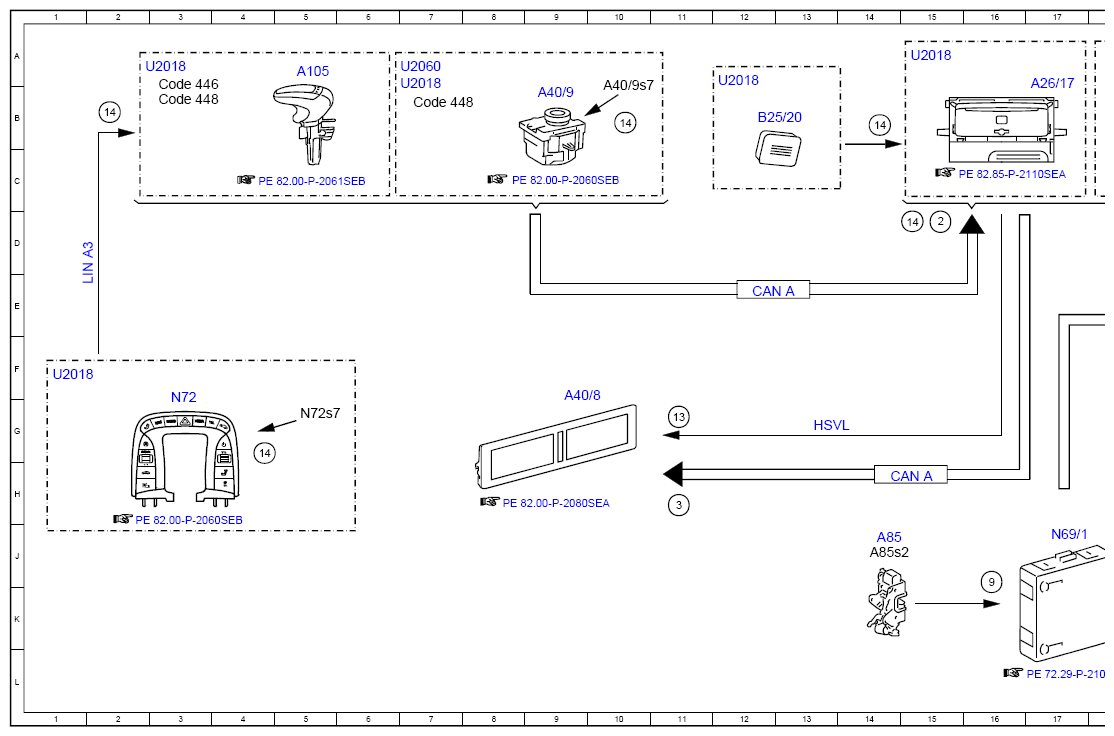

Function Schematic For Electric Anti-Theft Alarm System, Activation - PE80.50-P-2052-97SEA
Model 217, 222 with code 551 (Anti-theft warning system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Central locking, status | 33D |
| 1 | Central locking, status | 44A |
| 10 | Trunk lid lock main catch switch, status | 35G |
| 10 | Trunk lid lock main catch switch, status | 40K |
| 11 | Glove compartment anti-theft alarm system switch, status | 34E |
| 12 | Instrument cluster message, request | 28C |
| 13 | Low voltage differential signal video signal data transfer, signal | 11G |
| 14 | Operation, signal | 48H |
| 14 | Operation, signal | 35C |
| 14 | Operation, signal | 19D |
| 14 | Operation, signal | 14B |
| 14 | Operation, signal | 2B |
| 14 | Operation, signal | 4G |
| 14 | Operation, signal | 10B |
| 14 | Operation, signal | 15D |
| 14 | Operation, signal | 53H |
| 2 | Audio/COMAND control panel, status | 15D |
| 3 | Audio/COMAND display, actuation | 11H |
| 4 | Interior protection deactivated, signal | 43A |
| 4 | Interior protection deactivated, signal | 31B |
| 5 | Tow-away protection deactivated, signal | 43A |
| 5 | Tow-away protection deactivated, signal | 31B |
| 6 | Anti-theft alarm system, status | 49E |
| 6 | Anti-theft alarm system, status | 35A |
| 6 | Anti-theft alarm system, status | 19D |
| 7 | ATA [EDW] function indicator, actuation | 40E |
| 8 | Engine hood contact switch, status | 34F |
| 9 | Main locking position microswitch, status | 16J |
| 9 | Main locking position microswitch, status | 22J |
| 9 | Main locking position microswitch, status | 29J |
| 9 | Main locking position microswitch, status | 31E |
| 9 | Main locking position microswitch, status | 31F |
| 9 | Main locking position microswitch, status | 31G |
| 9 | Main locking position microswitch, status | 33G |
| A1 | Instrument cluster | 26C |
| A105 | Touchpad | 5A |
| A26/17 | Head unit | 17B |
| A40/19 | Center instrument panel display section | 41G |
| A40/3 | COMAND control unit | 20B |
| A40/8 | Audio/COMAND display | 9G |
| A40/9 | Audio/COMAND control panel | 9B |
| A40/9s7 | "CAR" button | 10B |
| A85 | Left front door lock | 14J |
| A85/1 | Right front door lock | 36J |
| A85/1s2 | Right front door main locking position microswitch | 36J |
| A85/3 | Left rear door lock | 20J |
| A85/3s2 | Left rear door main locking position microswitch | 20J |
| A85/4 | Right rear door lock | 30J |
| A85/4s2 | Right rear door main locking position microswitch | 30J |
| A85/5 | Trunk lid lock | 40K |
| A85/5s1 | Trunk lid lock main catch switch | 40L |
| A85s2 | Left front door main locking position microswitch | 14J |
| B25/20 | Driver hands-free system microphone | 12B |
| CAN A | Telematics CAN | 15H |
| CAN A | Telematics CAN | 12E |
| CAN B | Interior CAN | 33D |
| CAN B | Interior CAN | 25E |
| CAN B | Interior CAN | 33H |
| CAN B | Interior CAN | 38H |
| CAN B | Interior CAN | 29G |
| CAN B | Interior CAN | 26F |
| CAN B | Interior CAN | 38B |
| CAN HMI | User interface CAN | 29D |
| CAN HMI | User interface CAN | 26B |
| CAN LR | Steering wheel CAN | 49H |
| Code 446 | Touchpad only | 3B |
| Code 448 | Touchpad | 3B |
| Code 448 | Touchpad | 7B |
| Code 852 | Sensor system for anti-theft alarm system (ATA) | 44A |
| Code 882 | Interior protection (only with ATA [EDW]) | 44A |
| Flex E | Chassis FlexRay | 38B |
| H3/1 | Alarm siren | 50E |
| HSVL | High-speed video link | 13G |
| LIN 1 | Instrument panel LIN | 38E |
| LIN A3 | LCP LIN | 1D |
| LIN B14 | Alarm system LIN | 48E |
| N10/6 | Front SAM control unit | 33E |
| N10/8 | Rear SAM control unit | 38J |
| N135 | Steering wheel electronics | 53G |
| N26/3 | ATA [EDW]/towing sensor/interior motion sensor control unit | 50C |
| N26/6 | ATA [EDW]/towing sensor/interior motion sensor control unit | 48B |
| N69/1 | Left front door control unit | 17J |
| N69/2 | Right front door control unit | 33J |
| N69/3 | Left rear door control unit | 23J |
| N69/4 | Right rear door control unit | 27J |
| N70 | Overhead control panel control unit | 52C |
| N72 | Lower control panel | 3G |
| N72s7 | "CAR" button | 5G |
| N73 | Electronic ignition switch control unit | 33A |
| N80 | Steering column module control unit | 46G |
| S163/2s10 | Head unit finger navigation pad | 54H |
| S163/2s13 | "Back" button | 54H |
| S6/2 | Center instrument panel button group | 41D |
| S6/2e1 | ATA [EDW] function indicator | 42C |
| S62/43 | Left engine hood contact switch | 39G |
| S62/7 | Glove compartment anti-theft alarm system switch | 39C |
| U1120 | Valid except code 852 (Sensor system for anti-theft alarm system (ATA)) | 46E |
| U1222 | Valid for model series 222 | 19H |
| U1222 | Valid for model series 222 | 25H |
| U1222 | Valid for model series 222 | 45B |
| U2018 | Valid as of model year 2018 | 51B |
| U2018 | Valid as of model year 2018 | 44G |
| U2018 | Valid as of model year 2018 | 15A |
| U2018 | Valid as of model year 2018 | 12A |
| U2018 | Valid as of model year 2018 | 2A |
| U2018 | Valid as of model year 2018 | 1F |
| U2018 | Valid as of model year 2018 | 7B |
| U2018 | Valid as of model year 2018 | 40F |
| U2060 | Valid up to model year 2018 | 18A |
| U2060 | Valid up to model year 2018 | 7A |
| U2060 | Valid up to model year 2018 | 45B |
| U2060 | Valid up to model year 2018 | 45C |
| U2060 | Valid up to model year 2018 | 49B |
| U2060 | Valid up to model year 2018 | 40C |
| U413 | Valid for model 217.3 | 45C |
| U414 | Valid for model 217.4 | 38C |
| U414 | Valid for model 217.4 | 49B |
