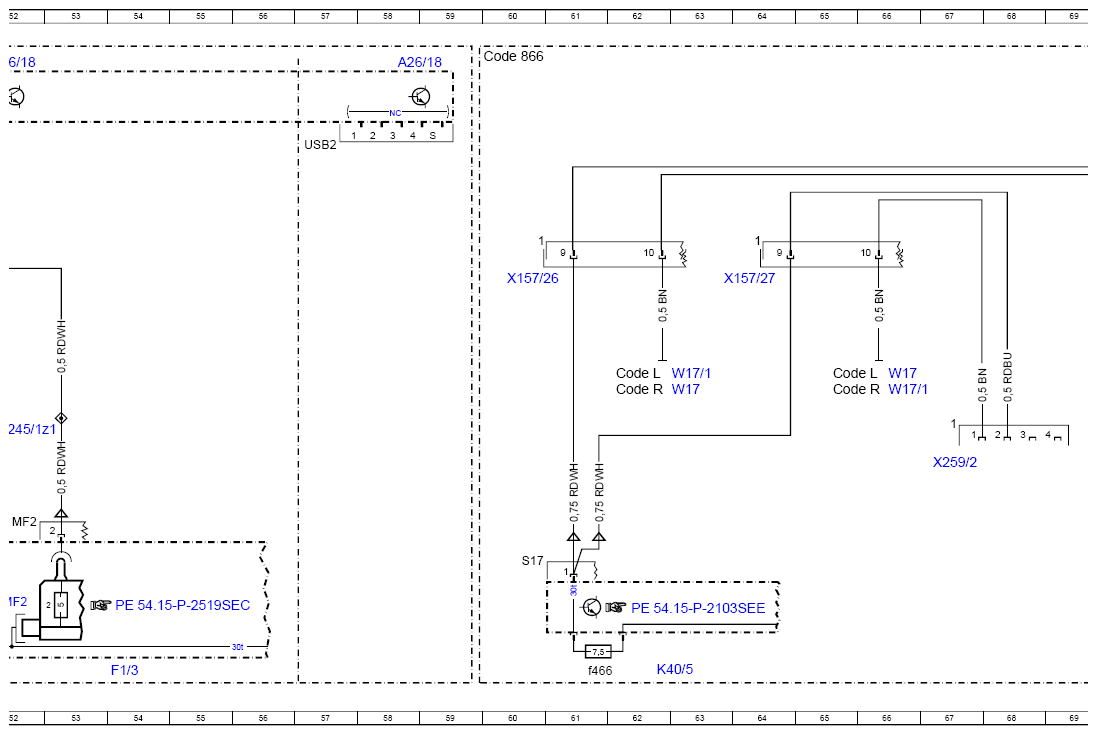

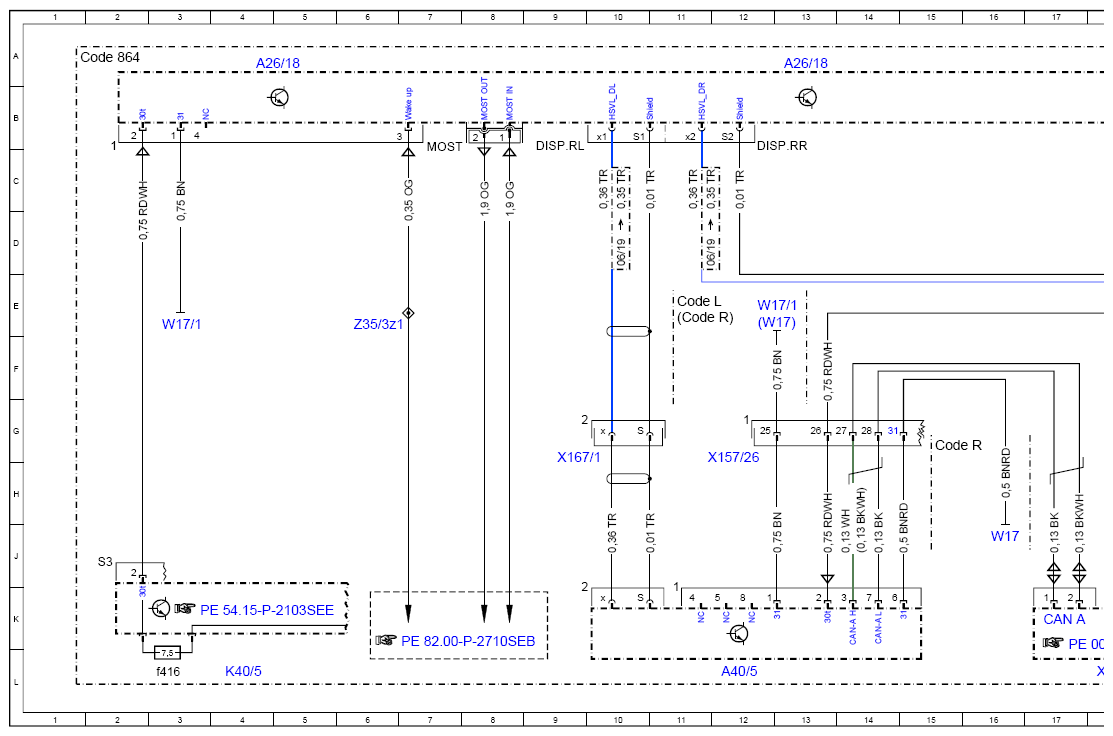

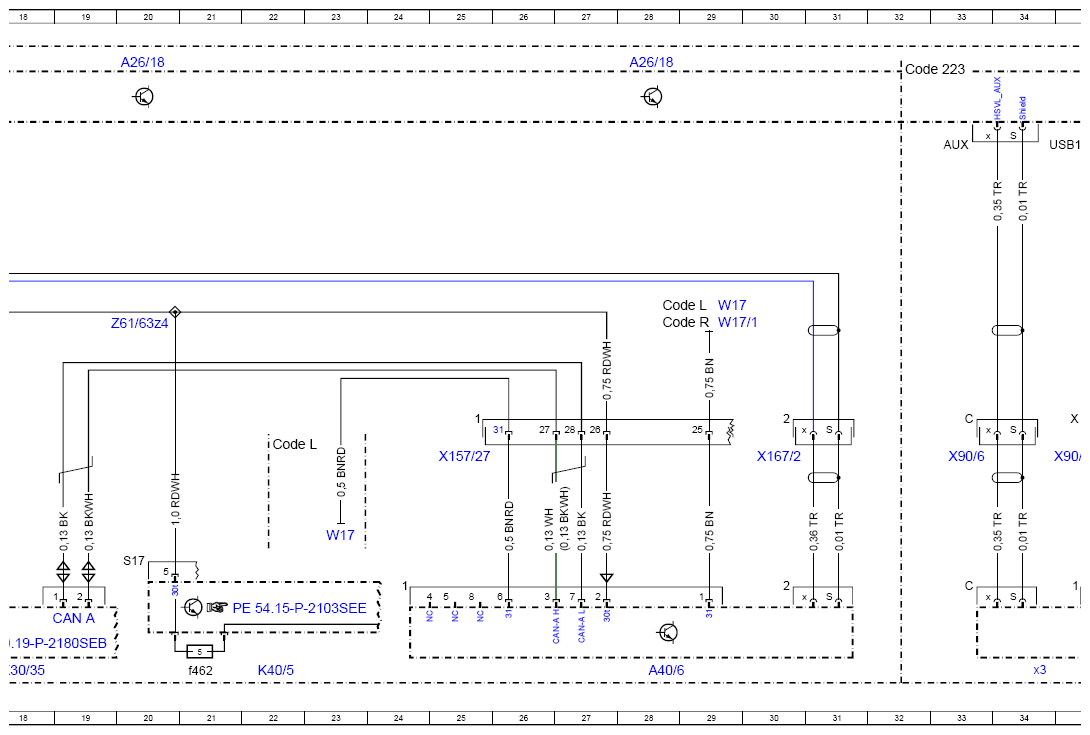

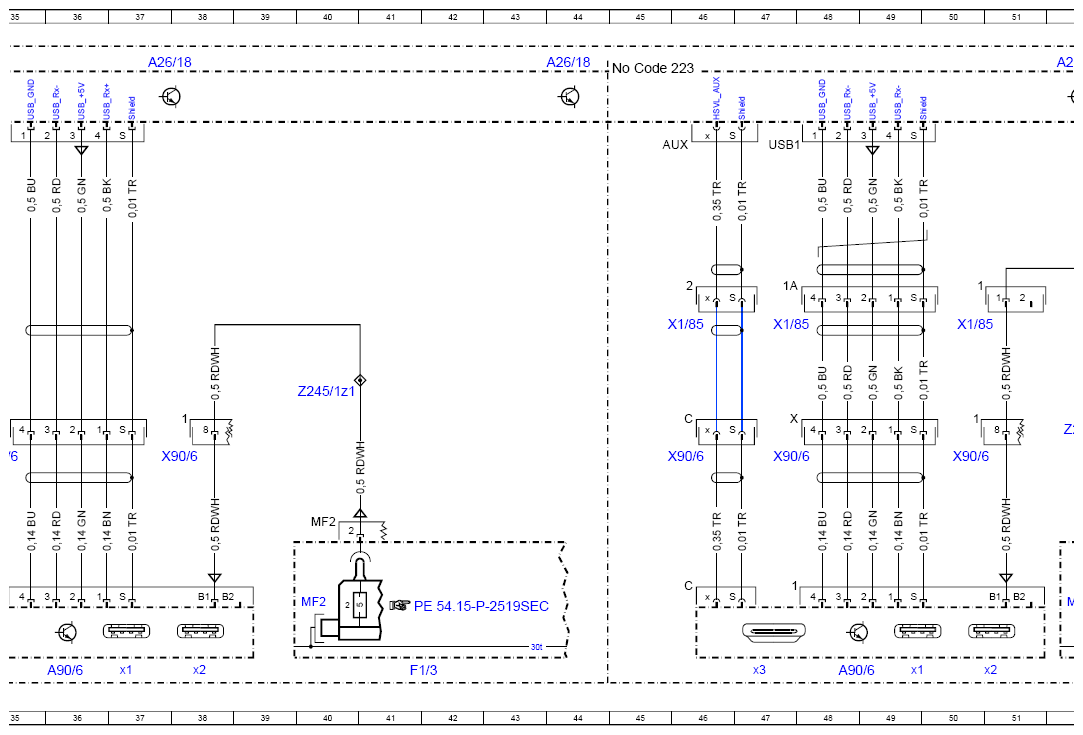

Wiring Diagram For Rear Seat Entertainment System Controller Unit - PE82.90-P-2103-97SEB
Model 222 As Of Model Year 2018 Rear Seat Entertainment System control unit A26/18
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A26/18 | Rear entertainment controller unit | 13A |
| A26/18 | Rear entertainment controller unit | 4A |
| A26/18 | Rear entertainment controller unit | 20A |
| A26/18 | Rear entertainment controller unit | 28A |
| A26/18 | Rear entertainment controller unit | 37A |
| A26/18 | Rear entertainment controller unit | 44A |
| A26/18 | Rear entertainment controller unit | 52A |
| A26/18 | Rear entertainment controller unit | 58A |
| A40/5 | Left rear display | 12L |
| A40/6 | Right rear display | 28L |
| A90/6 | Rear multimedia connection unit | 36L |
| A90/6 | Rear multimedia connection unit | 48L |
| A90/6x1 | Rear USB connector 1 | 37L |
| A90/6x1 | Rear USB connector 1 | 49L |
| A90/6x2 | Rear USB connector 2 | 38L |
| A90/6x2 | Rear USB connector 2 | 51L |
| A90/6x3 | Rear HDMI connection | 34L |
| A90/6x3 | Rear HDMI connection | 47L |
| CAN A | Telematics CAN | 17K |
| CAN A | Telematics CAN | 19K |
| Code 223 | Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 32A |
| Code 223 | Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 45A |
| Code 864 | Rear compartment entertainment | 1A |
| Code 866 | Preinstallation for Rear Seat Entertainment system | 60A |
| Code L | LEFT-HAND DRIVE | 22G |
| Code L | LEFT-HAND DRIVE | 11E |
| Code L | LEFT-HAND DRIVE | 28E |
| Code L | LEFT-HAND DRIVE | 62F |
| Code L | LEFT-HAND DRIVE | 65F |
| Code R | RIGHT-HAND DRIVE | 15G |
| Code R | RIGHT-HAND DRIVE | 11E |
| Code R | RIGHT-HAND DRIVE | 28E |
| Code R | RIGHT-HAND DRIVE | 62F |
| Code R | RIGHT-HAND DRIVE | 65F |
| F1/3 | Passenger-side A-pillar fuse box | 41L |
| F1/3 | Passenger-side A-pillar fuse box | 54L |
| F1/3MF2 | Multiple fuse 2 | 40K |
| F1/3MF2 | Multiple fuse 2 | 52K |
| K40/5 | Rear fuse and relay module | 4L |
| K40/5 | Rear fuse and relay module | 22L |
| K40/5 | Rear fuse and relay module | 62L |
| K40/5f416 | Fuse 416 | 3L |
| K40/5f462 | Fuse 462 | 21L |
| K40/5f466 | Fuse 466 | 61L |
| W17 | Right rear seat ground point | 16J |
| W17 | Right rear seat ground point | 23J |
| W17 | Right rear seat ground point | 12E |
| W17 | Right rear seat ground point | 29E |
| W17 | Right rear seat ground point | 63F |
| W17 | Right rear seat ground point | 66F |
| W17/1 | Left rear seat ground point | 3E |
| W17/1 | Left rear seat ground point | 12E |
| W17/1 | Left rear seat ground point | 29E |
| W17/1 | Left rear seat ground point | 63F |
| W17/1 | Left rear seat ground point | 66F |
| X1/85 | Rear Seat Entertainment system controller unit electrical connector, rear shelf | 47E |
| X1/85 | Rear Seat Entertainment system controller unit electrical connector, rear shelf | 46E |
| X1/85 | Rear Seat Entertainment system controller unit electrical connector, rear shelf | 50E |
| X157/26 | Driver seat heater control unit ambiance illumination electrical connector | 12H |
| X157/26 | Driver seat heater control unit ambiance illumination electrical connector | 60E |
| X157/27 | Front passenger seat heater control unit ambiance illumination electrical connector | 25H |
| X157/27 | Front passenger seat heater control unit ambiance illumination electrical connector | 64E |
| X167/1 | Driver-side rear seat entertainment system electrical connector | 9H |
| X167/2 | Passenger-side rear seat entertainment system electrical connector | 30H |
| X259/1 | Left tablet PC electrical connector | 70H |
| X259/2 | Right tablet PC electrical connector | 67H |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 18L |
| X90/6 | Rear multimedia connection unit electrical connector | 33H |
| X90/6 | Rear multimedia connection unit electrical connector | 35H |
| X90/6 | Rear multimedia connection unit electrical connector | 38H |
| X90/6 | Rear multimedia connection unit electrical connector | 47H |
| X90/6 | Rear multimedia connection unit electrical connector | 46H |
| X90/6 | Rear multimedia connection unit electrical connector | 50H |
| Z245/1z1 | Universal serial bus connector sleeve, power supply | 40F |
| Z245/1z1 | Universal serial bus connector sleeve, power supply | 52G |
| Z35/3z1 | Wake-up signal connector sleeve | 6E |
| Z61/63z4 | Terminal 30t connector sleeve | 20E |
