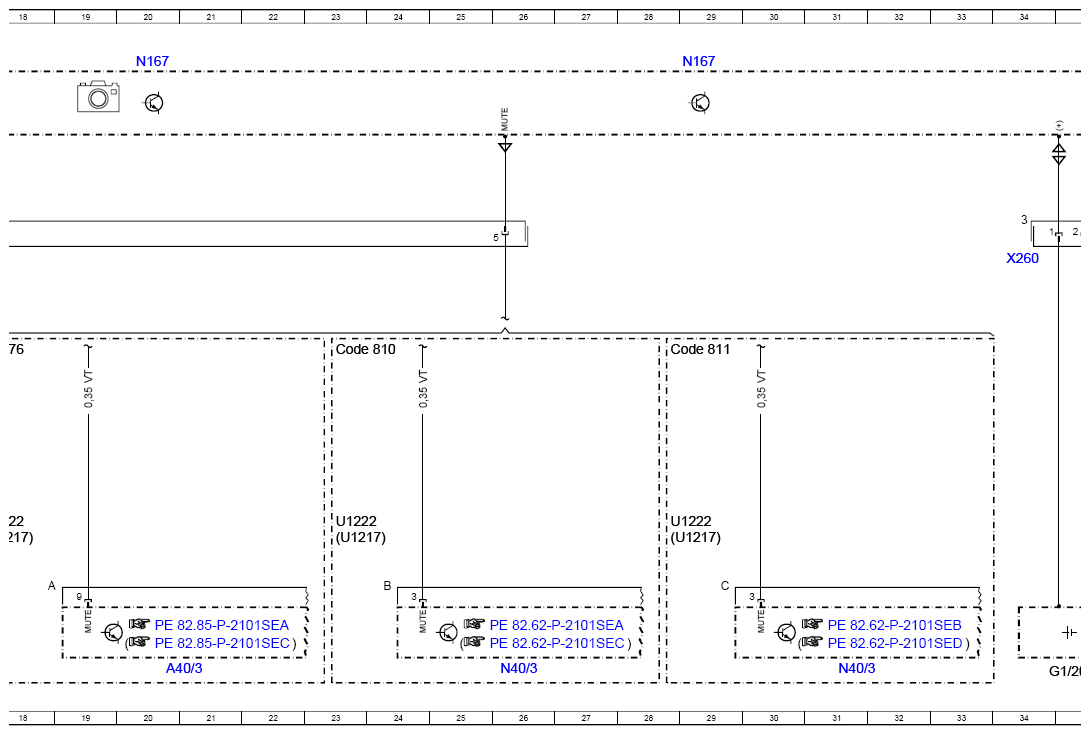

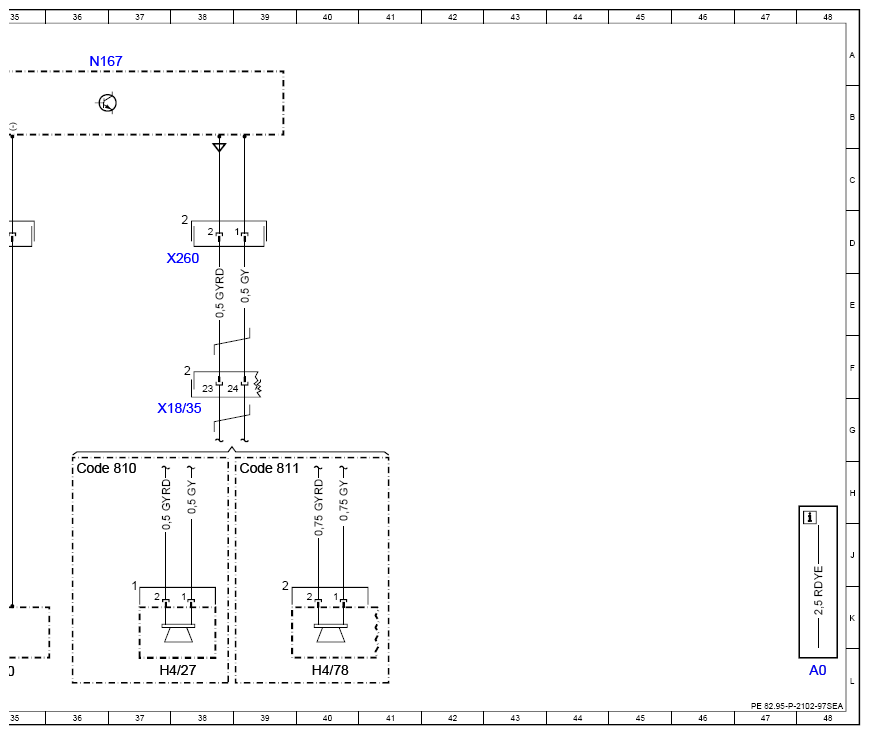

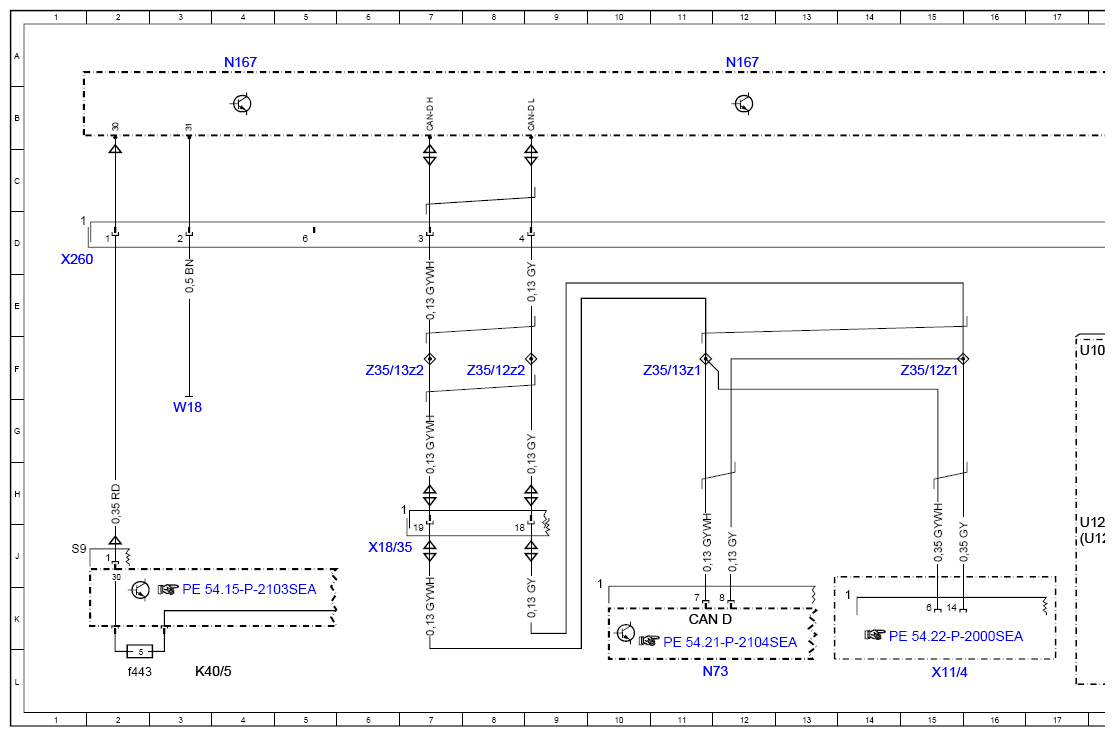

Ecall Control Unit Wiring Diagram, Russia (GLONASS) - PE82.95-P-2102-97SEA
Model 217 Up To Model Year 2018 With Code 6U4 (Mercedes-Benz Ecall emergency call system Russia (GLONASS))
Model 222 Up To Model Year 2018 With Code 6U4 (Mercedes-Benz Ecall emergency call system Russia (GLONASS))
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A40/3 | COMAND control unit | 20L |
| CAN D | Diagnostic CAN | 11K |
| Code 810 | Sound system | 36H |
| Code 810 | Sound system | 23F |
| Code 811 | Advanced sound system | 28F |
| Code 811 | Advanced sound system | 39H |
| G1/20 | E-Call Russia (GLONASS) backup battery | 35L |
| H4/27 | Center instrument panel speaker | 37L |
| H4/78 | Center instrument panel midrange speaker | 40L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f443 | Fuse 443 | 2L |
| N167 | E-Call Russia (GLONASS) control unit | 36A |
| N167 | E-Call Russia (GLONASS) control unit | 4A |
| N167 | E-Call Russia (GLONASS) control unit | 12A |
| N167 | E-Call Russia (GLONASS) control unit | 20A |
| N167 | E-Call Russia (GLONASS) control unit | 29A |
| N40/3 | Sound system amplifier control unit | 26L |
| N40/3 | Sound system amplifier control unit | 31L |
| N73 | Electronic ignition switch control unit | 11L |
| U1076 | Valid without code (810) Sound system or without code (811) Advanced Sound System | 17F |
| U1217 | Valid for model series 217 | 17J |
| U1217 | Valid for model series 217 | 23J |
| U1217 | Valid for model series 217 | 28J |
| U1222 | Valid for model series 222 | 17J |
| U1222 | Valid for model series 222 | 23J |
| U1222 | Valid for model series 222 | 28J |
| W18 | Left front seat crossmember ground point | 3G |
| X11/4 | Diagnostic connector | 15L |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 6J |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 38G |
| X260 | E-Call Russia (GLONASS) control unit electrical connector | 1D |
| X260 | E-Call Russia (GLONASS) control unit electrical connector | 34D |
| X260 | E-Call Russia (GLONASS) control unit electrical connector | 38D |
| Z35/12z1 | Diagnostic CAN (CAN D) low connector sleeve | 15F |
| Z35/12z2 | Diagnostic CAN (CAN D) low connector sleeve | 8F |
| Z35/13z1 | Diagnostic CAN (CAN D) high connector sleeve | 11F |
| Z35/13z2 | Diagnostic CAN (CAN D) high connector sleeve | 6F |
