Wiring Diagram, Panic Alarm System (PAS (GAS)) Control Unit - PE82.25-P-2101-97SEB
Model 222 as of model year 2018 with code Z07 (B7 armoring on special protection version) Control unit N26/12
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A48/1 | Special signal system operating unit | 17L |
| A48/4 | Guard operating unit | 30L |

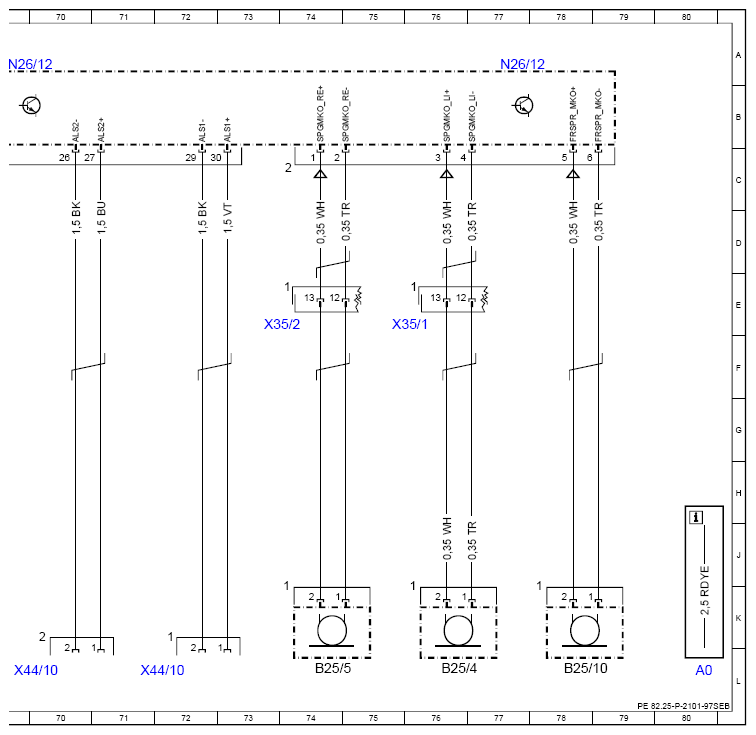

| B25/10 | Two-way radio microphone | 78L |
| B25/3 | Vehicle interior PAS [GAS] microphone | 53L |
| B25/4 | Left outside mirror PAS [GAS] microphone | 76L |
| B25/5 | Right outside mirror PAS [GAS] microphone | 74L |
| Code L | LEFT-HAND DRIVE | 18G |
| Code L | LEFT-HAND DRIVE | 63E |
| Code R | RIGHT-HAND DRIVE | 18G |
| Code R | RIGHT-HAND DRIVE | 63E |
| E27/1 | Left flashing light | 66L |
| E27/2 | Right flashing light | 68L |

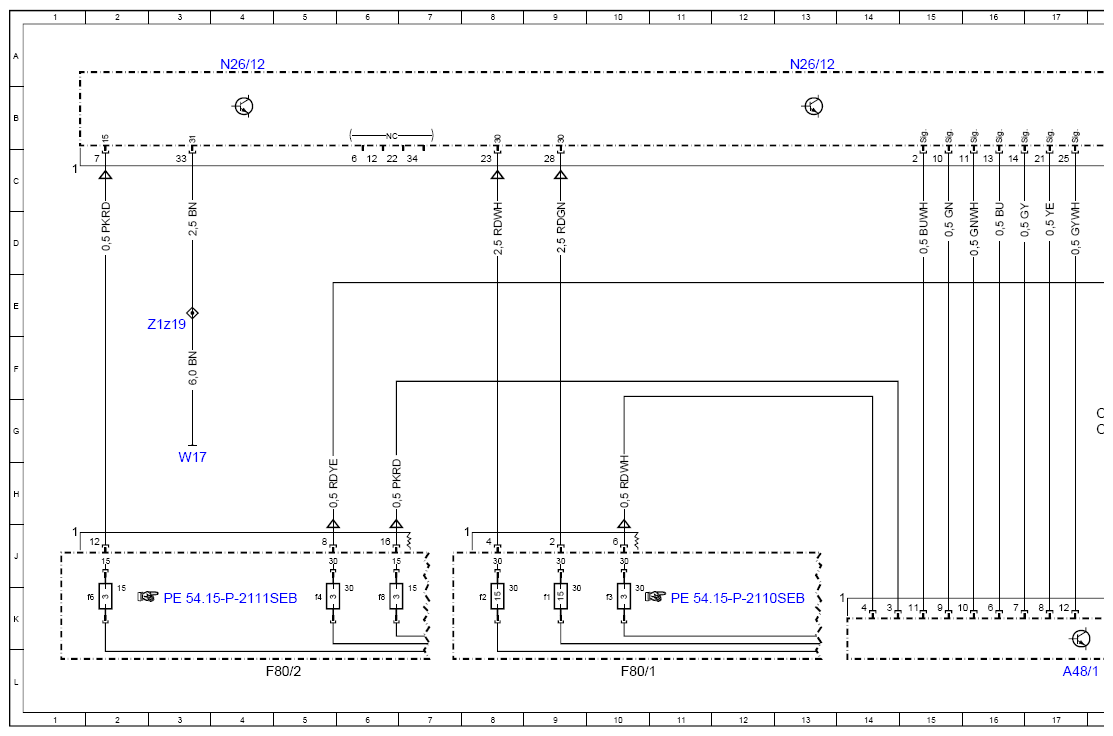

| F80/1 | Special-purpose vehicle fuse block 1 | 10L |
| F80/1f1 | Fuse 1 | 9K |
| F80/1f2 | Fuse 2 | 8K |
| F80/1f3 | Fuse 3 | 10K |
| F80/2 | Special-purpose vehicle fuse block 2 | 5L |
| F80/2f4 | Fuse 4 | 5K |
| F80/2f6 | Fuse 6 | 2K |
| F80/2f8 | Fuse 8 | 6K |

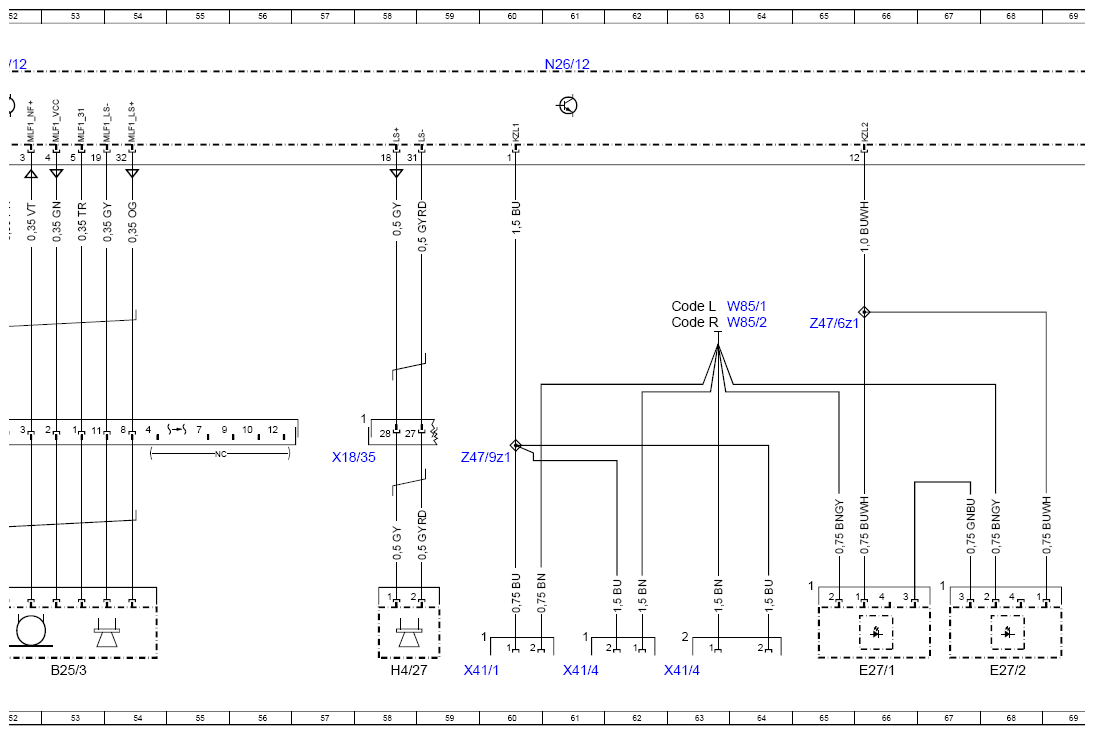

| H4/27 | Center instrument panel speaker | 58L |

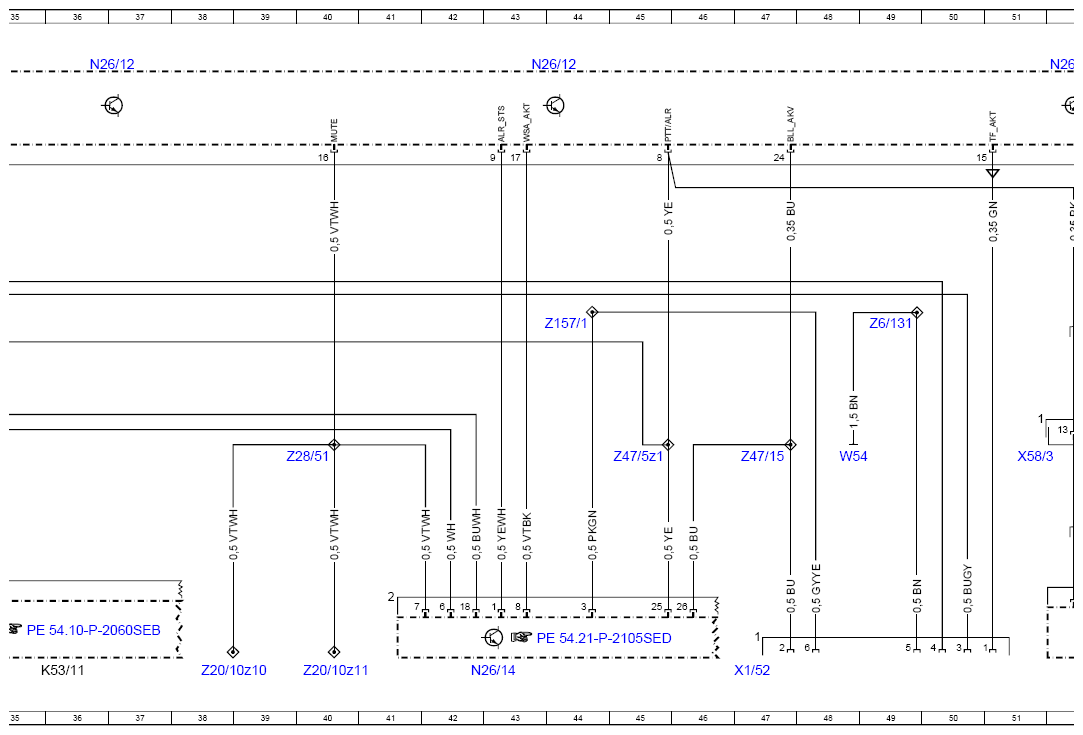

| K53/11 | Emergency start system relay | 36L |
| N100 | Fire extinguishing system and emergency fresh air system control unit | 24L |

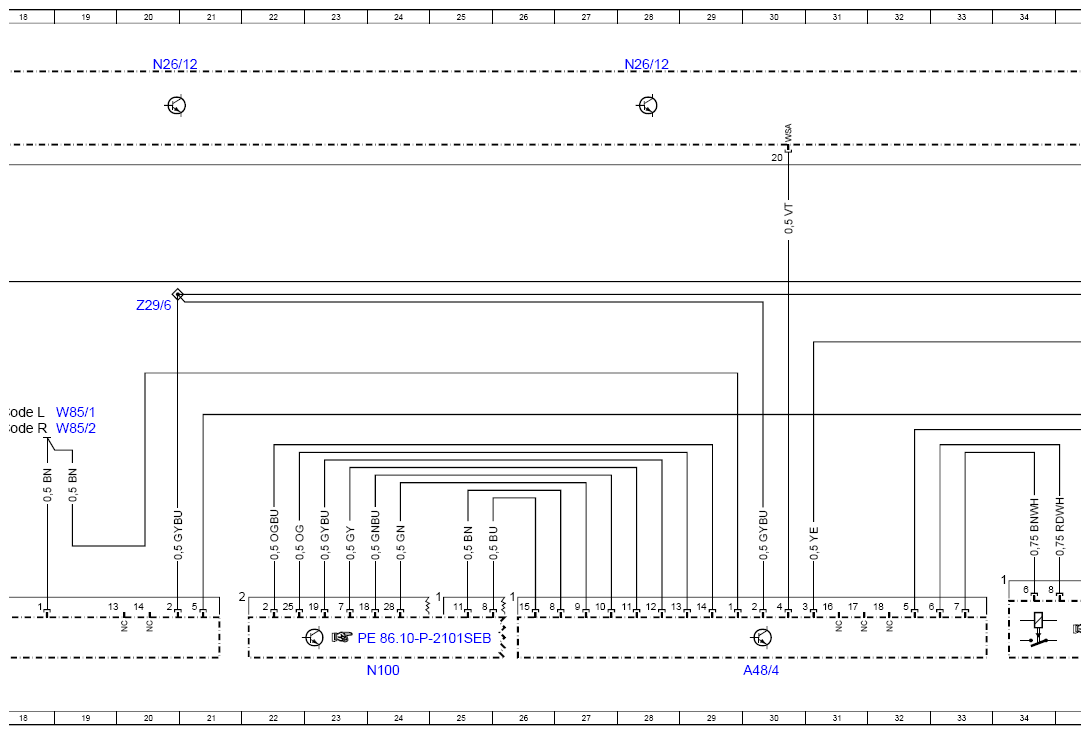

| N26/12 | PAS [GAS] and special signal system control unit | 4A |
| N26/12 | PAS [GAS] and special signal system control unit | 13A |
| N26/12 | PAS [GAS] and special signal system control unit | 28A |
| N26/12 | PAS [GAS] and special signal system control unit | 20A |
| N26/12 | PAS [GAS] and special signal system control unit | 36A |
| N26/12 | PAS [GAS] and special signal system control unit | 43A |
| N26/12 | PAS [GAS] and special signal system control unit | 52A |
| N26/12 | PAS [GAS] and special signal system control unit | 61A |
| N26/12 | PAS [GAS] and special signal system control unit | 69A |
| N26/12 | PAS [GAS] and special signal system control unit | 77A |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 42L |
| W17 | Right rear seat ground point | 3G |
| W54 | Right rear wheel well ground point | 48G |
| W85/1 | Driver footwell frame floor assembly ground point | 19G |
| W85/1 | Driver footwell frame floor assembly ground point | 63E |
| W85/2 | Front passenger footwell frame floor assembly ground point | 19G |
| W85/2 | Front passenger footwell frame floor assembly ground point | 63E |
| X1/52 | Government vehicle peripheral devices electrical connector | 47L |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 58H |
| X35/1 | Driver door electrical connector | 76E |
| X35/2 | Front passenger door electrical connector | 74E |
| X41/1 | Rotating beacon electrical connector | 60L |
| X41/4 | Rotating beacon electrical connector | 61L |
| X41/4 | Rotating beacon electrical connector | 63L |
| X44/10 | Outside speaker electrical connector | 72L |
| X44/10 | Outside speaker electrical connector | 70L |
| X58/3 | Microphone electrical connector | 51H |
| Z157/1 | Travel distance connector sleeve | 44E |
| Z1z19 | Circuit 31 connector sleeve | 3E |
| Z20/10z10 | Trunk mute connector sleeve | 38L |
| Z20/10z11 | Glove compartment mute connector sleeve | 40L |
| Z28/51 | Mute connector sleeve | 40G |
| Z29/6 | Circuit 58 connector sleeve | 20E |
| Z47/15 | Emergency vehicle warning lights active connector sleeve | 47G |
| Z47/5z1 | Alarm off connector sleeve | 45G |
| Z47/6z1 | Flashing lights connector sleeve | 65E |
| Z47/9z1 | Blue priority vehicle warning light, separation point connector sleeve | 60H |
| Z6/131 | Operating units terminal 31 connector sleeve | 49E |
