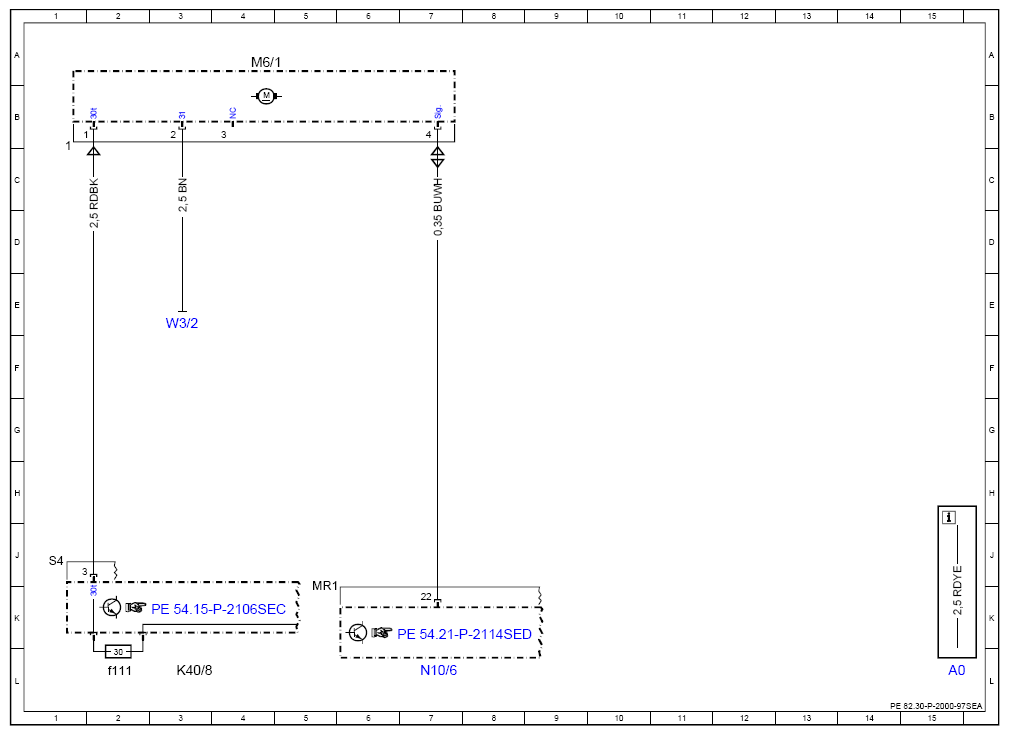

Wiring Diagram Of Windshield Wiper - PE82.30-P-2000-97SEA
Model 217, 222 as of model year 2018
| Code: |
Designation: |
Position: |
| A0 |
Use of wiring diagrams |
15L |
| K40/8 |
Engine fuse and relay module |
3L |
| K40/8f111 |
Fuse 111 |
2L |
| M6/1 |
Wiper motor |
4A |
| N10/6 |
Front SAM control unit |
7L |
| W3/2 |
Left front wheel arch ground point |
3E |
