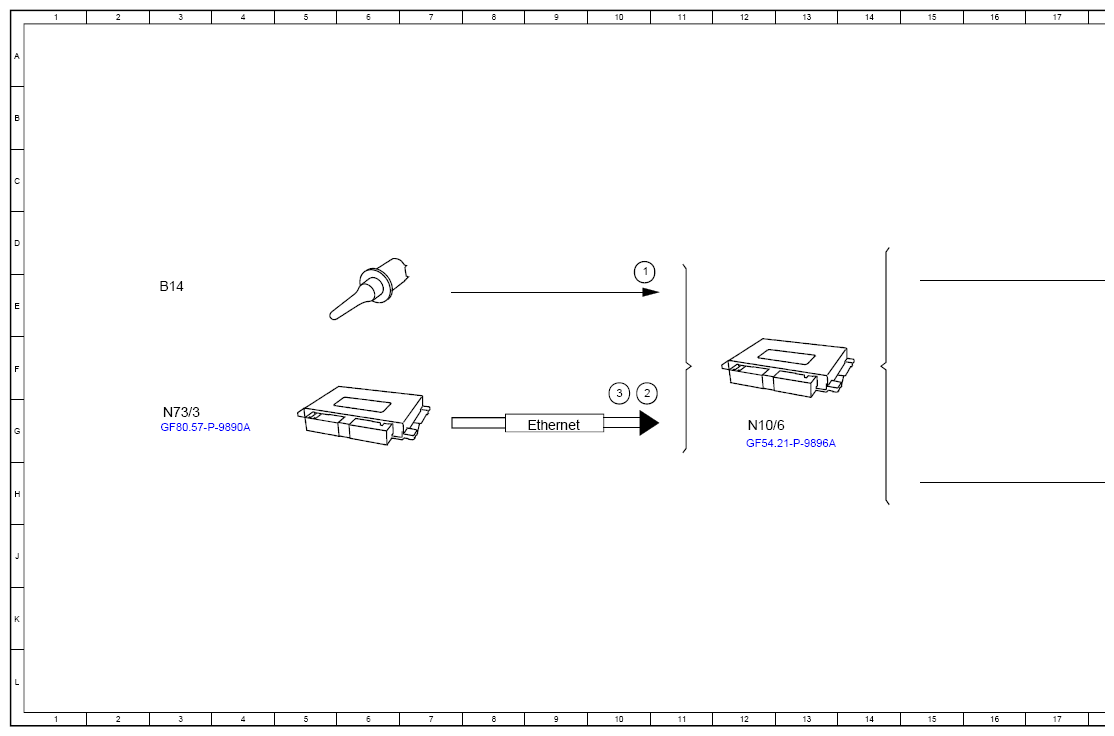

Function Schematic, Heat Spray Nozzles And Spray Nozzle Hose - PE82.35-P-2500-97B
Model 192, 223, 232 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)
Model 206, 214, 236, 254, 294, 295, 296, 297 with code 875 (Heated windshield washer system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Outside temperature sensor, signal | 10E |
| 2 | Engine running, signal | 10F |
| 3 | Drivetrain operational, signal | 10F |
| 4 | Spray nozzle hose heater, actuation | 18D |
| 5 | Wiper blade heater, actuation | 18H |
| B14 | Outside temperature sensor | 3E |
| Ethernet | Ethernet | 9G |
| N10/6 | Front signal acquisition and actuation module control unit | 12G |
| N73/3 | Electronic ignition switch control unit | 3G |
| R2/11 | Spray nozzle hose heater | 19F |
| R2/15 | Wiper blade/wiper arm hose heater | 19J |
| R2/16 | Wiper blade/wiper arm hose heater | 19J |
