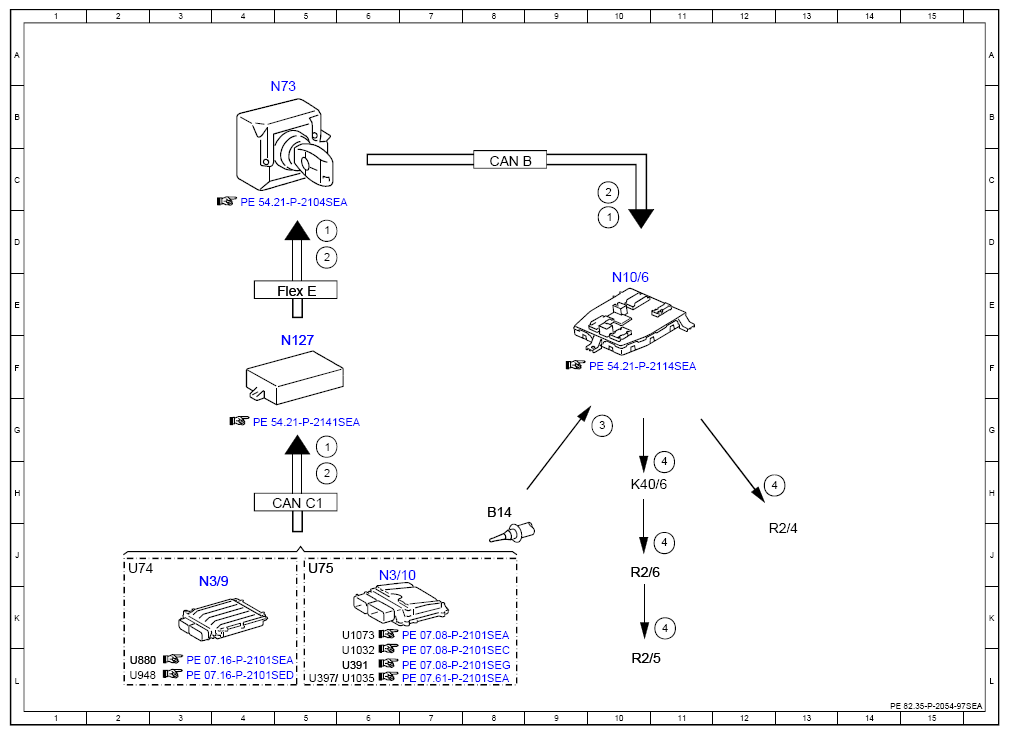

Electrical Function Schematic For Spray Nozzle Hose Heater - PE82.35-P-2054-97SEA
Model 217 Model 222 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 5G |
| 1 | Engine running, signal | 10D |
| 1 | Engine running, signal | 5D |
| 2 | Drivetrain operational, signal | 5D |
| 2 | Drivetrain operational, signal | 5H |
| 2 | Drivetrain operational, signal | 10C |
| 3 | Outside temperature sensor, signal | 10G |
| 4 | Spray nozzle hose heater, actuation | 12H |
| 4 | Spray nozzle hose heater, actuation | 11H |
| 4 | Spray nozzle hose heater, actuation | 11J |
| 4 | Spray nozzle hose heater, actuation | 11K |
| B14 | Outside temperature sensor | 8H |
| CAN B | Interior CAN | 8C |
| CAN C1 | Drive train CAN | 5H |
| Flex E | Chassis FlexRay | 5E |
| K40/6 | Left fuse and relay module | 10H |
| N10/6 | Front SAM control unit | 10E |
| N127 | Drivetrain control unit | 5F |
| N3/10 | ME-SFI [ME] control unit | 6J |
| N3/9 | CDI control unit | 3J |
| N73 | Electronic ignition switch control unit | 4B |
| R2/4 | Lower spray nozzle hose heater | 12J |
| R2/5 | Upper spray nozzle hose heater | 10L |
| R2/6 | Windshield washer system junction box | 10J |
| U1032 | Valid for engine 278 and 157 | 6L |
| U1035 | Valid for gasoline engine 279 | 6L |
| U1073 | Valid for gasoline engine 276.9 | 6K |
| U391 | Valid for gasoline engine 276.8 | 6L |
| U397 | Valid for gasoline engine 277 | 5L |
| U74 | Valid for diesel engines | 2J |
| U75 | Valid for gasoline engines | 5J |
| U880 | Valid for diesel engine 642 | 2L |
| U948 | Valid for diesel engine 651 | 2L |
