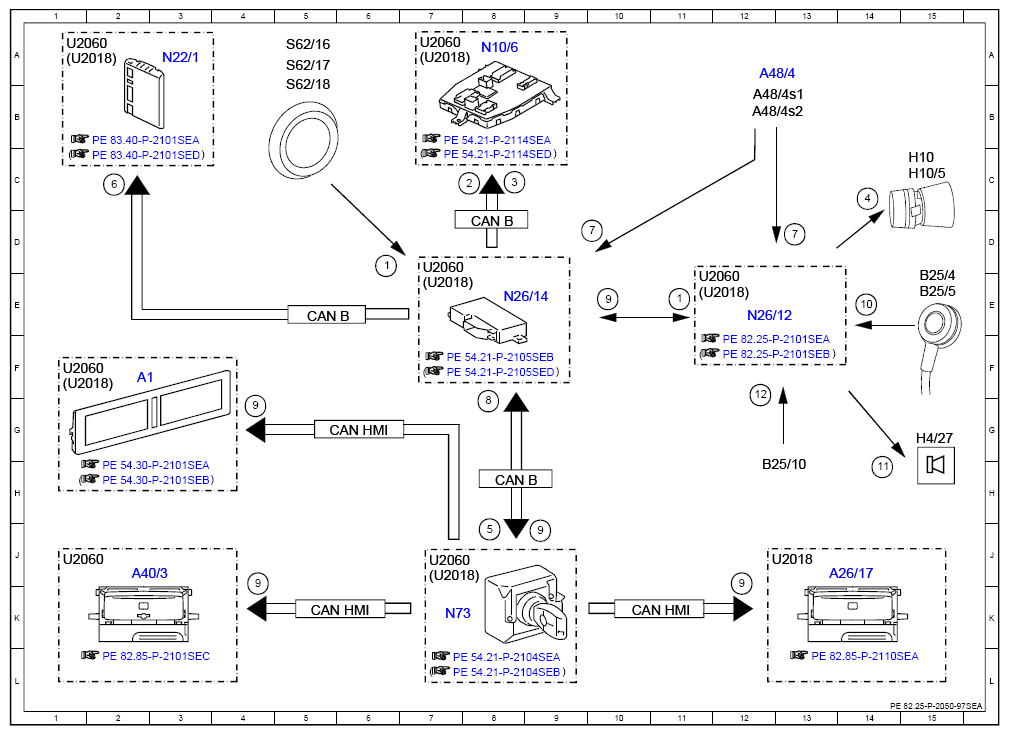

Electrical Function Schematic For Panic Alarm System (PAS (GAS)) - PE82.25-P-2050-97SEA
Model 222 with code Z22 (Panic alarm system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Emergency alarm system button, status | 6D |
| 1 | Emergency alarm system button, status | 11E |
| 10 | Outside mirror PAS [GAS] microphone, signal | 14E |
| 11 | Speaker, actuation | 14H |
| 12 | Microphone, signal | 12G |
| 2 | High beams, request | 8C |
| 3 | Alarm flasher, request | 8C |
| 4 | Outside PAS [GAS] speaker, actuation | 14C |
| 5 | Lock/unlock central locking, request | 8J |
| 6 | Switch on recirculated air mode, request | 2C |
| 7 | Intercom system button, status | 10D |
| 7 | Intercom system button, status | 13D |
| 8 | Circuit 15, status | 8G |
| 9 | Mute function, signal | 10E |
| 9 | Mute function, signal | 9J |
| 9 | Mute function, signal | 10E |
| 9 | Mute function, signal | 9J |
| 9 | Mute function, signal | 4J |
| A1 | Instrument cluster | 2F |
| A26/17 | Head unit | 14J |
| A40/3 | COMAND control unit | 2J |
| A48/4 | Guard operating unit | 12A |
| A48/4s1 | Intercom system button (speak) | 12B |
| A48/4s2 | Intercom system button (listen) | 12B |
| B25/10 | Two-way radio microphone | 12H |
| B25/4 | Left outside mirror PAS [GAS] microphone | 15E |
| B25/5 | Right outside mirror PAS [GAS] microphone | 15E |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 8D |
| CAN B | Interior CAN | 5E |
| CAN HMI | User interface CAN | 5K |
| CAN HMI | User interface CAN | 6G |
| CAN HMI | User interface CAN | 10K |
| H10 | Outside panic alarm system speaker 1 | 15C |
| H10/5 | Outside panic alarm system speaker 2 | 15C |
| H4/27 | Center instrument panel speaker | 15G |
| N10/6 | Front SAM control unit | 8A |
| N22/1 | Climate control, control unit | 3A |
| N26/12 | PAS [GAS] and special signal system control unit | 12E |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 8E |
| N73 | Electronic ignition switch control unit | 7K |
| S62/16 | Left footwell emergency alarm system button | 5A |
| S62/17 | Right footwell emergency alarm system button | 5A |
| S62/18 | Rear center console emergency alarm system button | 5B |
| U2018 | Valid as of model year 2018 | 7A |
| U2018 | Valid as of model year 2018 | 1A |
| U2018 | Valid as of model year 2018 | 11E |
| U2018 | Valid as of model year 2018 | 7E |
| U2018 | Valid as of model year 2018 | 7J |
| U2018 | Valid as of model year 2018 | 1F |
| U2018 | Valid as of model year 2018 | 12J |
| U2060 | Valid up to model year 2018 | 7A |
| U2060 | Valid up to model year 2018 | 1A |
| U2060 | Valid up to model year 2018 | 11E |
| U2060 | Valid up to model year 2018 | 7D |
| U2060 | Valid up to model year 2018 | 7J |
| U2060 | Valid up to model year 2018 | 1F |
| U2060 | Valid up to model year 2018 | 1J |
