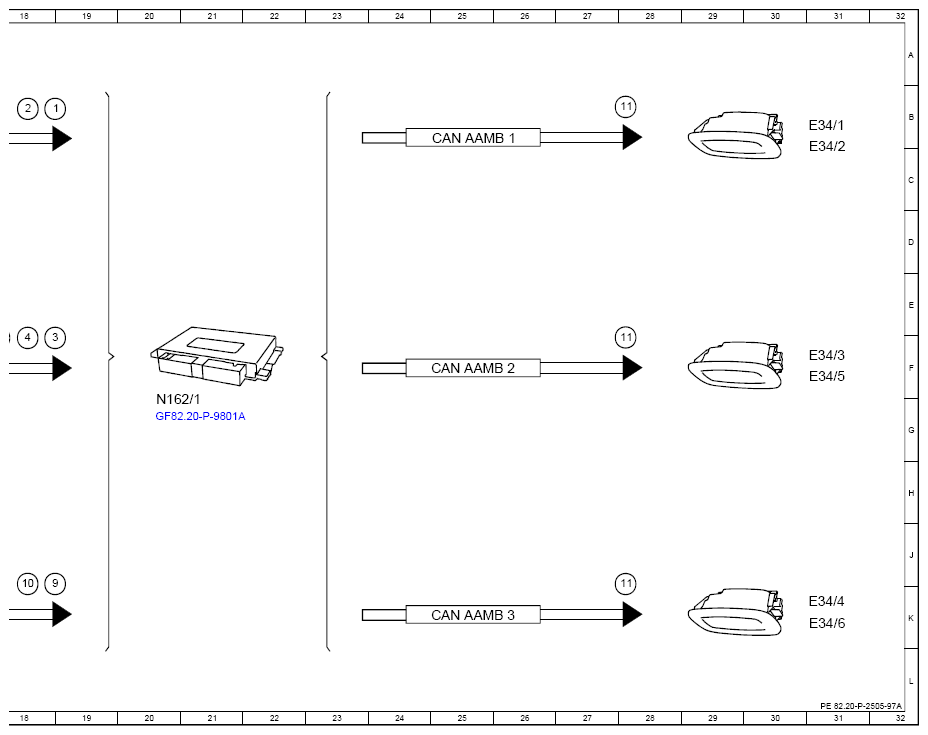

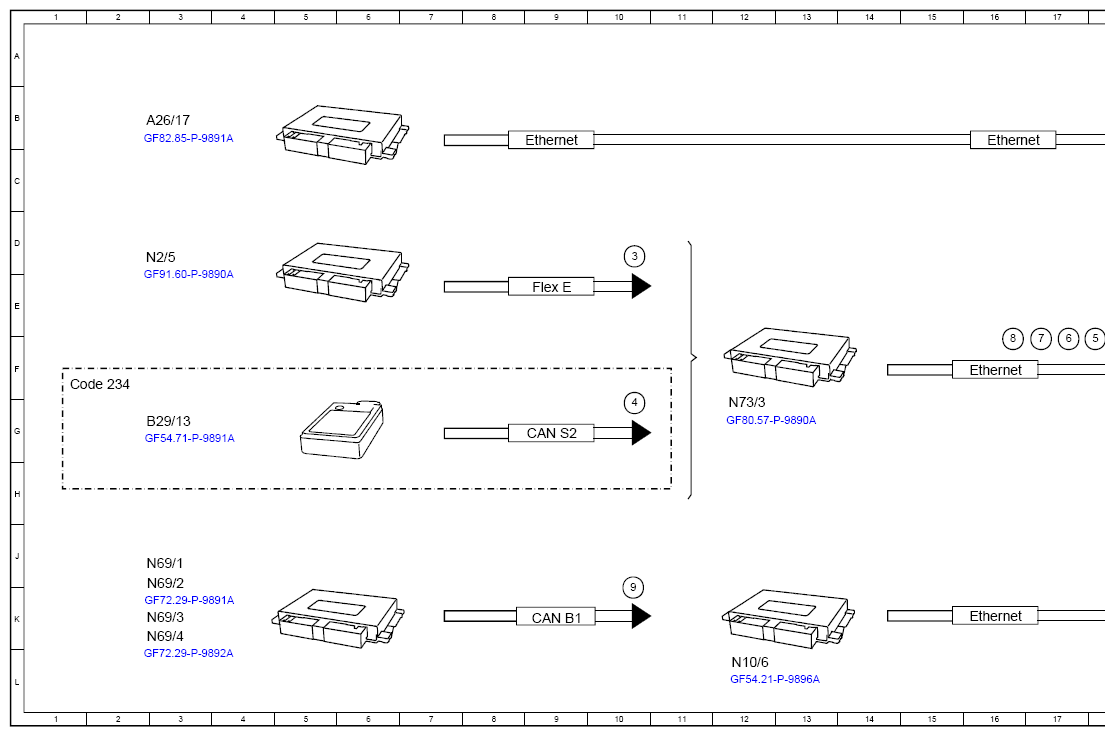

(Function Schematic For Actuating Active Ambient Lighting - PE82.20-P-2505-97A)
Model 223, 296, 297 with code 878 (CONNECTED LIGHT ambient lighting)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Active ambient lighting settings, status | 18B |
| 10 | Climate control, status | 18K |
| 11 | Active ambient lighting, request | 28E |
| 11 | Active ambient lighting, request | 28K |
| 11 | Active ambient lighting, request | 28B |
| 2 | Voice input, signal | 18B |
| 3 | Crash, signal | 10D |
| 3 | Crash, signal | 18E |
| 4 | Blind Spot Assist warning indicator, request | 10G |
| 4 | Blind Spot Assist warning indicator, request | 18E |
| 5 | Circuit 15, status | 18E |
| 6 | Central locking, status | 17E |
| 7 | Active Lane Keeping Assist, status | 17E |
| 8 | Autonomous brake application, signal | 16E |
| 9 | Door rotary tumbler switch, status | 10K |
| 9 | Door rotary tumbler switch, status | 19K |
| A26/17 | Head unit | 3B |
| B29/13 | Left rear short-range radar sensor | 3G |
| CAN AAMB | 1 CAN for front active ambient lighting | 25B |
| CAN AAMB | 2 CAN for left active ambient lighting | 25F |
| CAN AAMB | 3 CAN for right active ambient lighting | 25K |
| CAN B1 | CAN 1 for vehicle interior | 9K |
| CAN S2 | CAN for rear radar | 9G |
| Code 234 | Blind spot assist | 1F |
| E34/1 | Left cockpit light-emitting diode strip | 31B |
| E34/2 | Right cockpit light-emitting diode strip | 31C |
| E34/3 | Left front door light-emitting diode strip | 31F |
| E34/4 | Right front door light-emitting diode strip | 31K |
| E34/5 | Left rear door light-emitting diode strip | 31F |
| E34/6 | Right rear door light-emitting diode strip | 31K |
| Ethernet | Ethernet | 9B |
| Ethernet | Ethernet | 16F |
| Ethernet | Ethernet | 16B |
| Ethernet | Ethernet | 16K |
| Flex E | Chassis FlexRay | 9E |
| N10/6 | Front signal acquisition and actuation module control unit | 12L |
| N162/1 | Active ambient lighting control unit | 20G |
| N2/5 | Supplemental restraint system control unit | 3D |
| N69/1 | Left front door control unit | 3J |
| N69/2 | Right front door control unit | 3K |
| N69/3 | Left rear door control unit | 3K |
| N69/4 | Right rear door control unit | 3K |
| N73/3 | Electronic ignition switch control unit | 12G |
