Remove/Install Speakers In Headliner - AR82.62-P-7876LFM
Model 222
As Of Model year 2018
With Code 811 (High-End sound system)
MODIFICATION NOTES
| 20.12.2017 | Remove headliner by headliner and put down in the vehicle replaced. | Operation step 1 |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

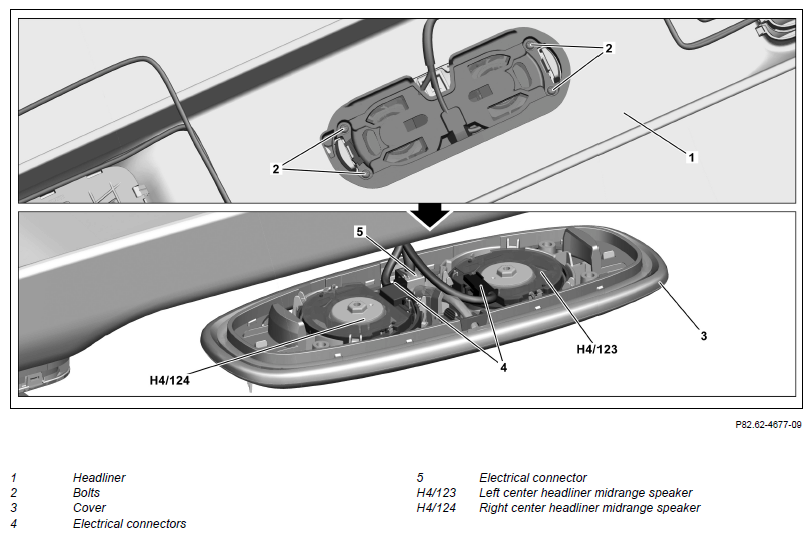

| 1 | Release headliner (1) and place into vehicle | Model 222.1 as of model year 2018 with code 811 (High-End sound system) Model 222.9 as of model year 2018 with code 811 (High-End sound system) except code Z07 (B7 armoring on special protection version) |
AR68.30-P-4300LFN |
| Model 222.0 as of model year 2018 with code 811 (High-End sound system) |
AR68.30-P-4300LF | ||
| 2 | Remove bolts (2) | ||
| 3 | Remove trim (3) from roof lining enough to access electrical connectors (4, 5) | ||
| 4 | Release and disconnect electrical connectors (4, 5) | ||
| 5 | Unclip left center roof lining mid-range speaker (H4/123) or right center roof lining mid-range speaker (H4/124) from trim (3) | ||
| 6 | Install in the reverse order |
