Remove/Install Speakers In Headliner - AR82.62-P-7876LF
Model 222
up to Model year 2018
With Code 811 (High-End sound system)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

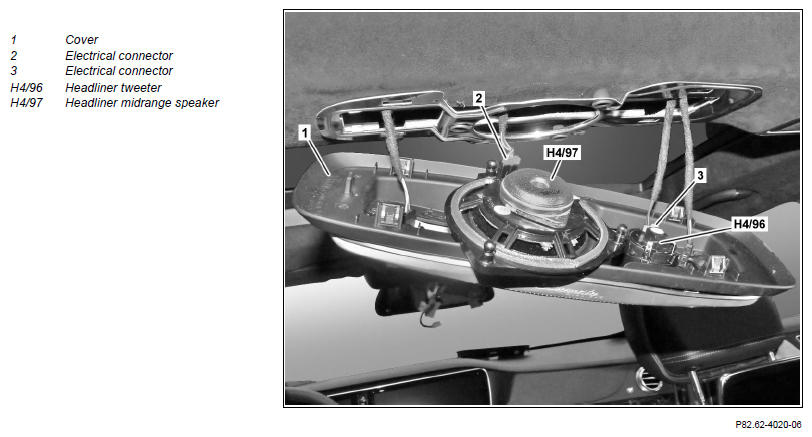

| 1 | Unclip panel (1) from headliner | ||
| 2 | Unclip mid-range speaker in roof lining (H4/97) downwards | ||
| 3 | Release and disconnect electrical connector (2) and remove mid-range speaker from roof lining (H4/97) | ||
| 4 | Release and disconnect electrical connection (3) | ||
| 5 | Turn tweeter in roof lining (H4/96) through 90° in counterclockwise direction and remove from panel (1) | ||
| 6 | Install in the reverse order |
