Remove/Install Left Footwell Bass Speaker - AR82.62-P-7820LF
Model 217, 222
MODIFICATION NOTES
| 21.01.2020 | Turn engagement (arrow A) clockwise by 90° and release. | Operation step 8. |

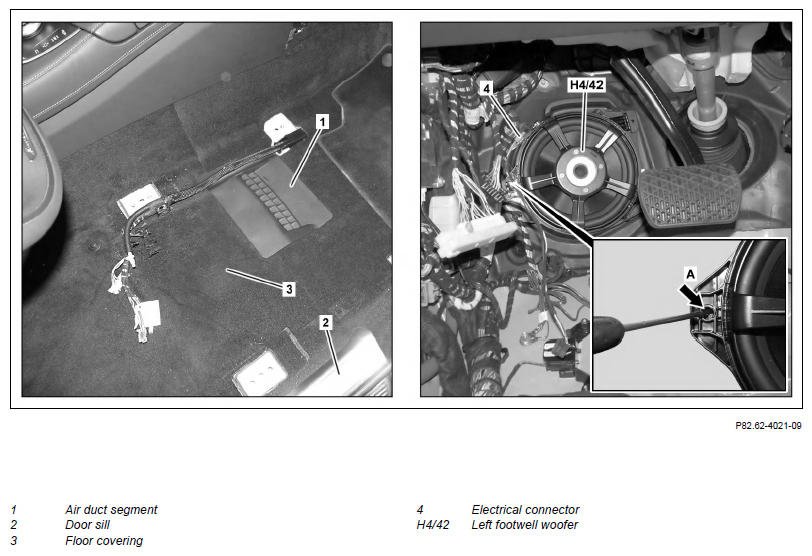

Shown on Model 222
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove left front seat. | AR91.10-P-1000LF | |
| 2 | Remove left cover below instrument panel. | Model 217, 222.0/1/9 | AR68.10-P-1500LF |
| 3 | Remove left door sill (2). | Model 217, 222 Model 217 |
AR68.30-P-4100LC |
| 4 | Remove air duct segment (1). | ||
| 5 | Remove accelerator pedal. | AR30.12-P-1321LF | |
| 6 | Remove floor covering (3). | Model 217, 222 Model 217 |
AR68.20-P-2050LC |
| 7 | Release and disconnect electrical connector (4). | ||
| 8 | Turn engagement (arrow A) clockwise by 90° using a screwdriver and release. | ||
| 9 | Remove left footwell bass speaker (H4/42). | ||
| 10 | Install in the reverse order. |
