Check And Correct The Adjustment Of The Headlamps - AP82.10-P-8260HA
Model 222
Static LED headlamp, shown on Model 222
Dynamic LED headlamp, shown on Model 222 up to Model year 2018
Dynamic LED headlamp, shown on Model 222 As Of Model year 2018

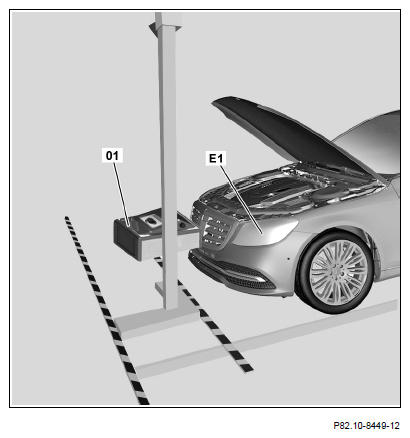

Shown on Model 222.183
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| General information on checking/correcting headlamp adjustment | AH82.10-P-1000-01A | ||
| Check | |||
| 1 | Check low beam setting, adjust if necessary. | Static LED headlamps, ECE version | AP82.10-P-8263S |
| Static LED headlamps, SAE version | AP82.10-P-8263SU | ||
| Dynamic LED headlamp, ECE version up to model year 2018 | AP82.10-P-8263SDE | ||
| Dynamic LED headlamp, SAE version up to model year 2018 | AP82.10-P-8263SDS | ||
| Dynamic LED headlamp, ECE version as of model year 2018 | AP82.10-P-8263WA | ||
| Dynamic LED headlamp, SAE version as of model year 2018 Before the low beams are checked and set, all the operation steps listed in the linked description must be performed carefully. Otherwise, the headlamps concerned may not be correctly set, which can then jeopardize the road safety of the vehicle. |
AP82.10-P-8263XA | ||
| 2 | Switch on main beam. | Model 222 with code 608 (Adaptive Highbeam Assist) Model 222 with code 628 (Adaptive Highbeam Assist Plus) For vehicles with active high beams assistant, have an assistant operate headlamp flashing. Otherwise the check cannot be carried out correctly. |
|
| 3 | Check setting of high beam. | If the high beam setting is not OK, ↓ rectify problems. |
AP82.10-P-8260-02HA |
| 4 | Reset switch positions to input condition. |
