Remove/Install Window Airbag - AR91.60-P-0693LF
Model 222
| Risk of injury during testing and repair operations related to pyrotechnically components | Do not expose pyrotechnically component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnically components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect ground line at battery | AR54.10-P-0003LF | |
| 2.1 | Remove headliner | Model 222.0 Model 222.1 Model 222.9 except code Z07 (B7 armoring on special protection version) Model 222.0 |
AR68.30-P-4300LF |
| Model 222.1 Model 222.9 except code Z07 (B7 armoring on special protection version) |
AR68.30-P-4300LFN | ||
| 2.2 | Remove rear section of roof lining | Model 222.9 with code Z07 (B7 armoring on special protection version) Model 222.9 with code Z07 (B7 armoring on special protection version) |
AR68.30-P-4307LFS |

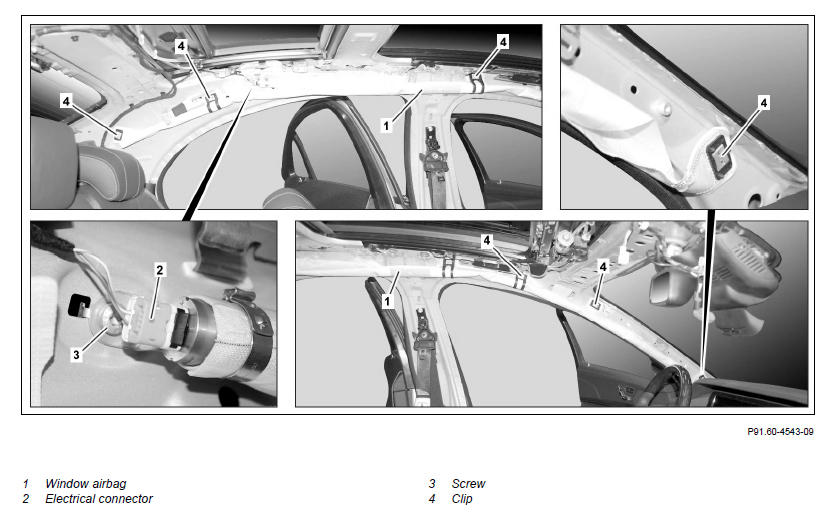

| 3 | Release and disconnect electrical connection (2) | ||
| 4 | Unscrew bolt (3) | *BA91.60-P-1004-01I | |

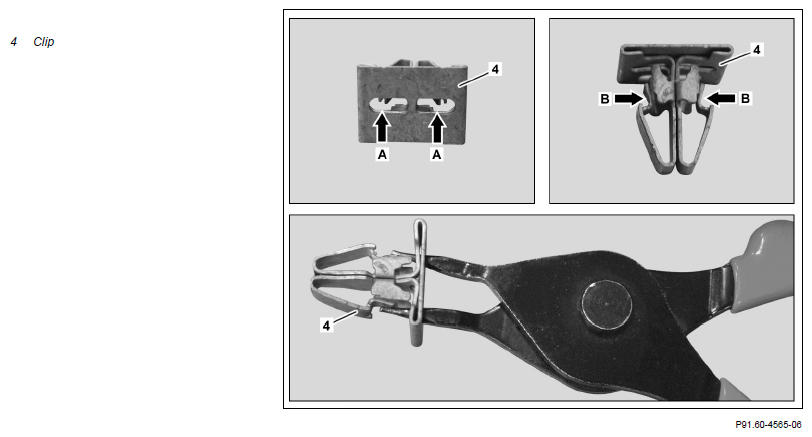

| 5 | Insert suitable pliers through openings (arrows A) to press tabs (arrows B) together and remove clamps (4) | ||
| 6 | Detach window airbag (1) | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Use vehicle diagnosis system to check and erase the fault memory | When replacing the window airbag (1). | |
| AD00.00-P-2000-04B |
AIRBAG
| Number | Designation | Model 222 | |
|---|---|---|---|
| BA91.60-P-1004-01I | Bolt, window airbag unit to roof frame | Nm | 7 |
