Remove/Install Side Supplemental Restraint System (SRS) Pressure Sensor - AR91.60-P-0760LF
Model 222
Front door

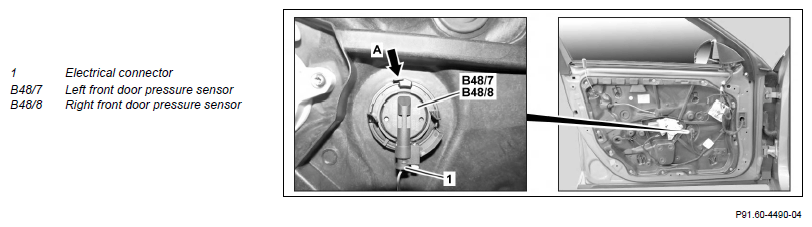

Fig 1: Front Door Side Supplemental Restraint System (SRS) Pressure Sensor Components Location - Model 222
Rear door, shown on Model 222.0

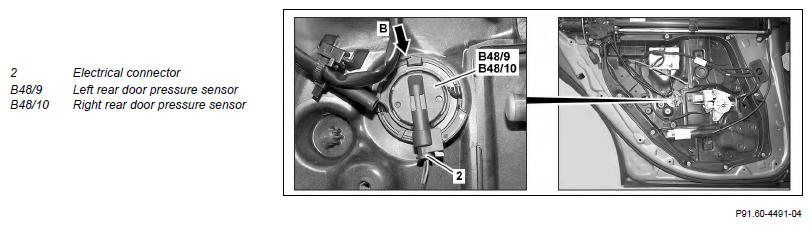

Fig 2: Rear Door Side Supplemental Restraint System (SRS) Pressure Sensor Components Location - Model 222 (Shown On Model 222.0)
| Risk of injury during jesting and repair operations related to pyrotechnically components | Do not expose pyrotechnically component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002.01M | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Remove/install | |||
| 1 | Disconnect ground line at the on-board electrical system battery | AR54.10-P-0003LF | |
| 2.1 | Remove door lining from left or right front door | When removing the left front door pressure sensor (B48/7) and the right front door pressure sensor (B48/8). | AR72.10-P-1000LF |
| 2.2 | Remove door lining on left or right rear door | When removing left rear door pressure sensor (B48/9) or right rear door pressure sensor (B48/1C). Model 222.C/1/9 |
AR72.12-P-1010LF |
| 3 | Disconnect electrical connector (1, 2) | When removing the pressure sensor. | |
| 4 | Lift shackle (arrow A) and turn pressure sensor counterclockwise 9CC and remove | When removing the pressure sensor. | |
| 5 | Install in the reverse order |
