Remove/Install Side Airbag Sensor - AR91.60-P-0710LF
Model 222
Shown on right sidebag sensor (A54)
| Risk of injury during testing and repair operations related to pyrotechnically components | Do not expose pyrotechnically component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnically components | AH91.00-Z-0000-10A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Remove/install | |||
| 1 | Remove left or right front seat | AR91.10-P-1000LF | |
| 2 | Remove cover from left or right B-pillar | Model 222.0/1/9 | AR68.30-P-4700LF |

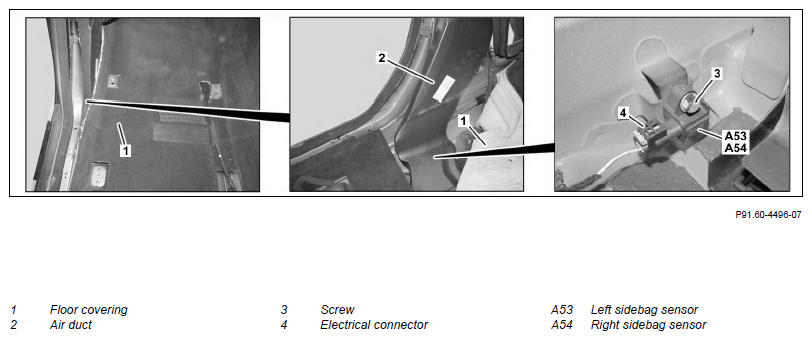

| 3 | Lift floor covering (1) and remove air duct (2) | ||
| 4 | Unscrew bolt (3) | *BA91.60-P-1008-01I | |
| 5 | Detach electrical connection (4) and remove left sidebag sensor (A53) or right sidebag sensor (A54) | ||
| 6 | Install in the reverse order |
AIRBAG
| Number | Designation | Model 222 | |
|---|---|---|---|
| BA91.60-P-1008-01I | Bolt, sidebag and window airbag sensor to B-pillar | Nm | 9 |
