Remove/Install Seat Occupancy Recognition Sensor - AR91.60-P-0720LF

Model 222.0/1/9 with CODE U18 (Automatic child seat recognition (ACSR)) without CODE U10 (Automatic seat occupancy recognition and child seat recognition)

Shown on seat cushion with CODE 873 (Seat heater for driver and front passenger)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover from front passenger seat cushion		AR91.18-P-1800LF

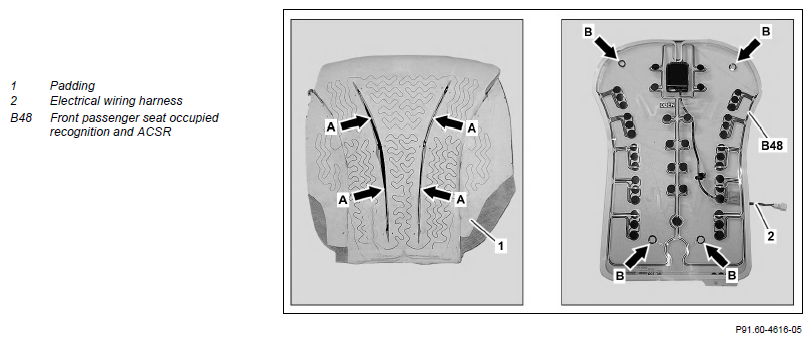

2	Lift covering at padding (1) in area of cutouts for staple wires (arrows A) and unhook front passenger seat occupied recognition and ACSR [AKSE] (B48) at attachment points (arrows B)
3	Guide electrical wiring harness (2) through padding (1) and remove front passenger seat occupied recognition and ACSR [AKSE] (B48) through cutouts for staple wires (arrows A)	Ensure proper installation position of front passenger seat occupied recognition and ACSR [AKSE] (B48).
4	Install in the reverse order
