Remove/Install Cup Holder - AR91.12-P-1621LFA

Model 222.0/1/9

with code 223 (Electric backrest adjustment and head restraints)

except code 224 (Individual rear seats)

Courtesy of MERCEDES-BENZ USA

	Remove/install

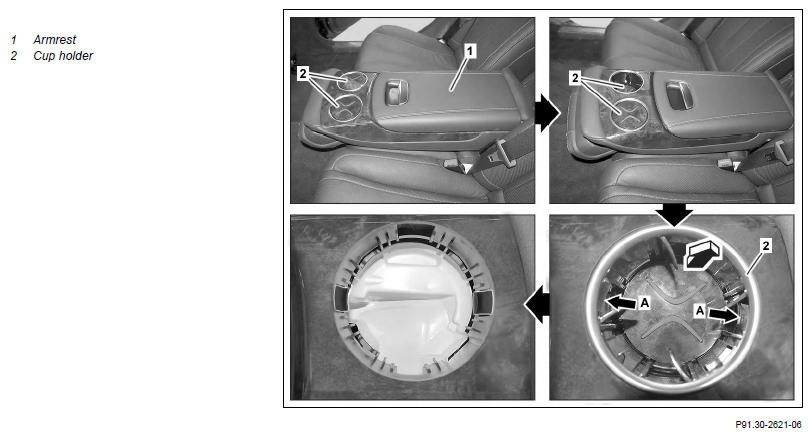

1	Fold down armrest (1)
2	Push left or right cup holder (2) far enough downwards until the catch hooks (arrows A) can be pushed	Do not push cup holder (2) down completely otherwise the catch hooks (arrows A) will be blocked and cannot be pushed.
3	Press catch hooks (arrows A)	Do not press catch hooks (arrows A) too far. Otherwise there is a risk of breaking the catch hooks (arrows A).
4	Remove left or right cup holder (2) with extraction hook upwards out of the armrest (1)	The cup holders (2) must not be mixed up. Otherwise the cup holders (2) may become damaged. :  The cup holders (2) are marked underneath.
		Extraction hook	Fig 1
5	Install in the reverse order

Fig 1: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
