Remove/Install Cap Of Rear Passenger Compartment Armrest - AR91.27-P-0001LF
Model 222.1/9
with code 224 (Individual rear seats)
| Remove/install | |||

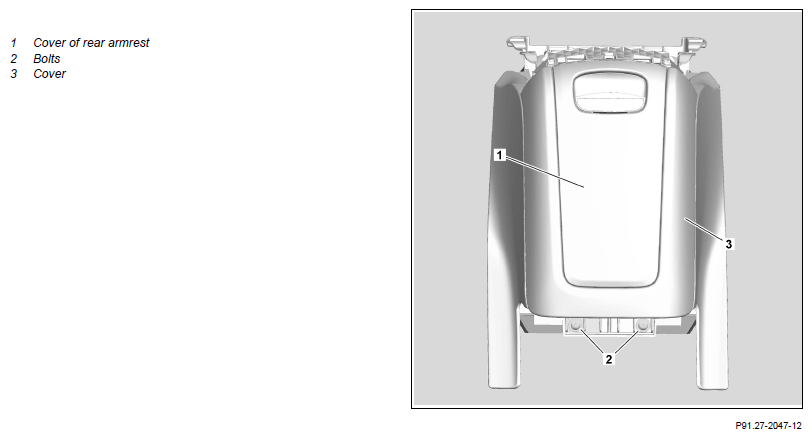

| 1 | Remove upper part of rear center console | AR68.20-P-2020LF | |
| 2 | Remove bolts (2) | ||
| 3 | Remove cover of rear armrest (1) | ||
| 4 | Unclip cover (3) | ||
| 5 | Install in the reverse order |
