Remove/Install Armrest At Rear Seat Backrest - AR91.12-P-1745LF

Model 217

Model 222.0/1

except code 223 (Electric backrest adjustment and head restraints)

except code 224 (Individual rear seats)

Courtesy of MERCEDES-BENZ USA

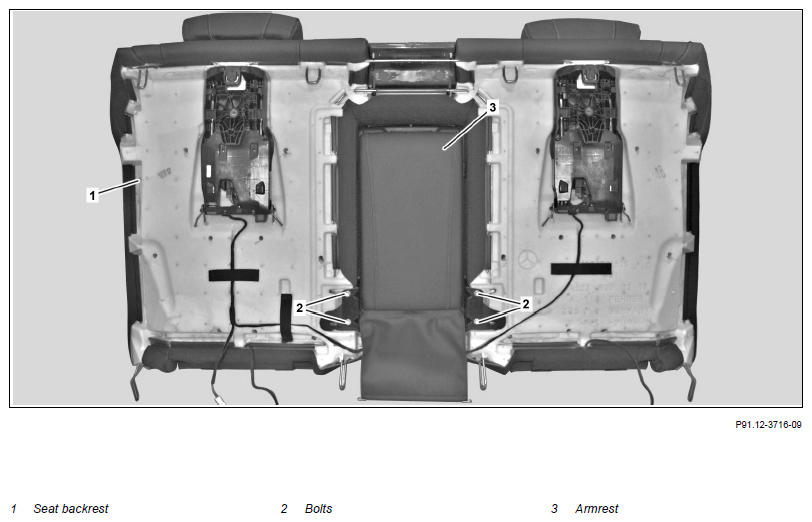

Shown on Model 222

	Remove/install
1	Remove backrest (1)		AR91.12-P-1620LF
2	Remove screws/bolts (2)
3	Remove armrest (3)
4	Install in the reverse order
