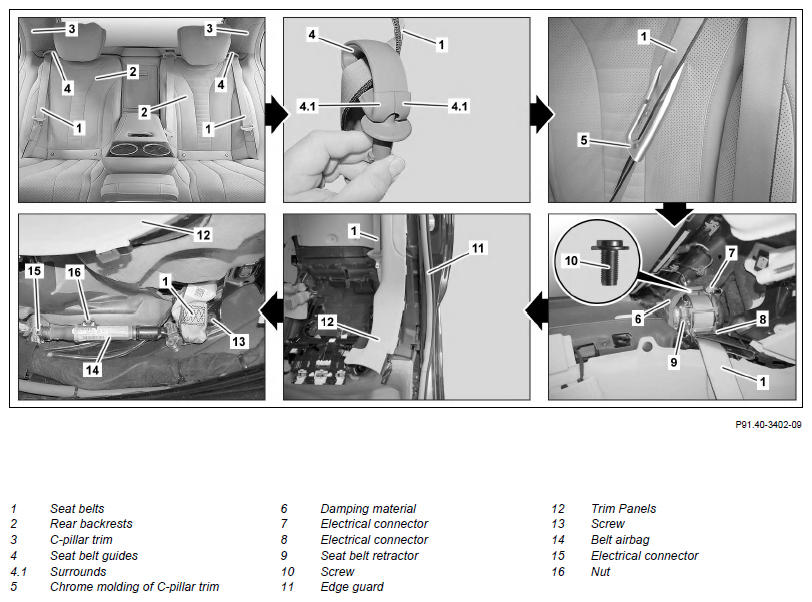

Remove/Install Rear Seat Belts - AR91.40-P-0681LFA
Model 222.0/1/9 with code 223 (Electric backrest adjustment and head restraints)
Model 222.0/1/9 with code 224 (Individual rear seats)
Shown on vehicle with CODE P36 (Rear PRE-SAFE® package)
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 222 | |
|---|---|---|---|
| BA91.40-P-1009-01T | Bolt, rear seat belt retractor | Nm | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 222 | |
|---|---|---|---|
| BA91.40-P-1011-01T | Bolt/nut for rear belt end fitting | Nm | 35 |
