Remove/Install Cup Holder - AR91.12-P-1621LF
Model 205.0/1, 213.0/1
with code 287 (Through-loading feature)
Model 205.2
Model 213.2
Model 217
Model 222.0/1/9
except code 223 (Electric backrest adjustment and head restraints)
except code 224 (Individual rear seats)
Model 253.1/9, 293

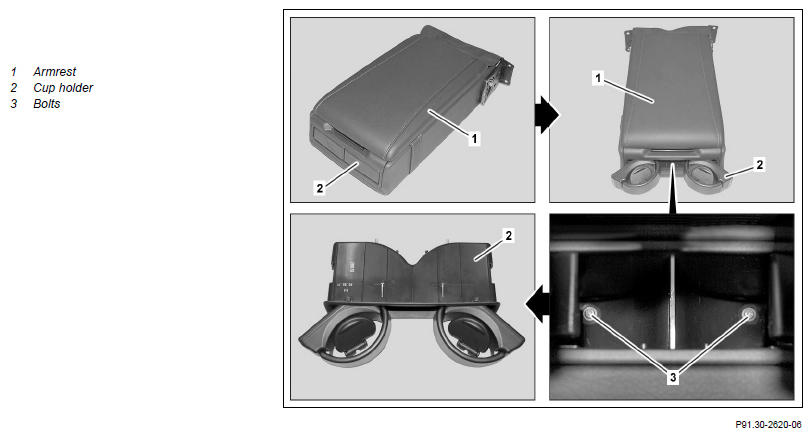

Shown on model 222.0
| Remove/install | |||
| 1 | Fold down armrest (1). | ||
| 2 | Open cup holder (2) by pressing. | ||
| 3 | Unscrew bolts (3). | ||
| 4 | Remove cup holder (2) forward out of armrest (1). | ||
| 5 | Install in the reverse order |
