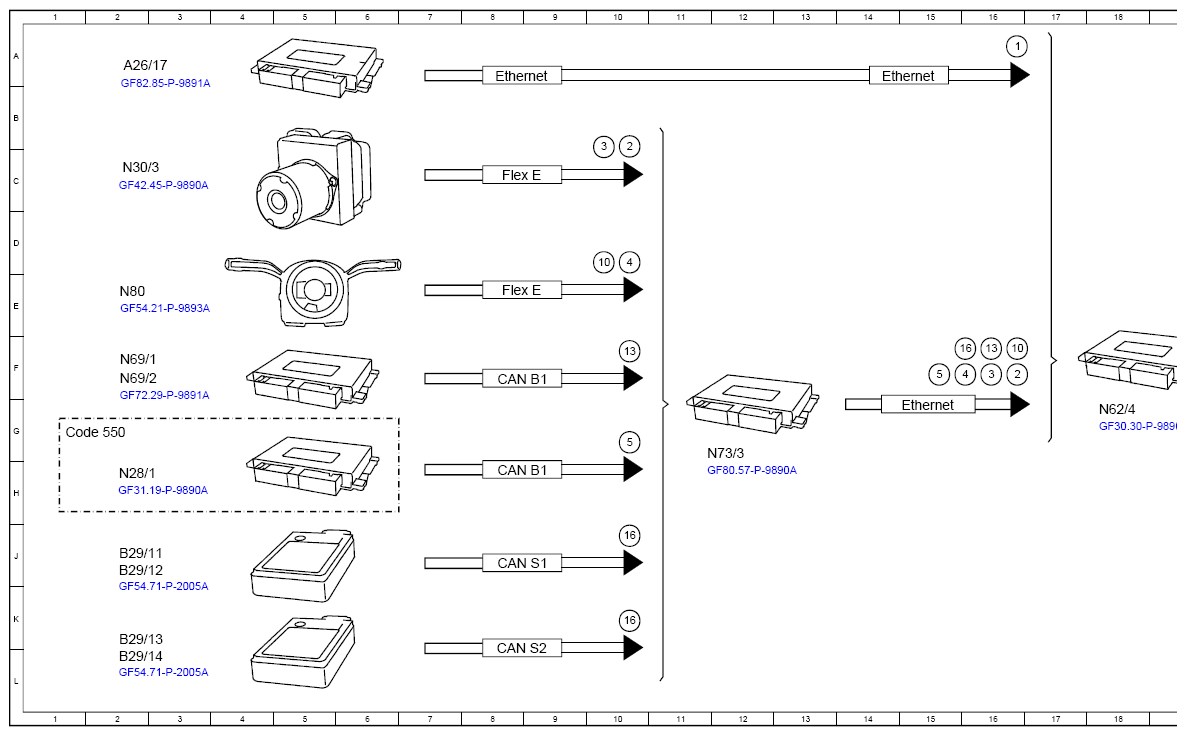

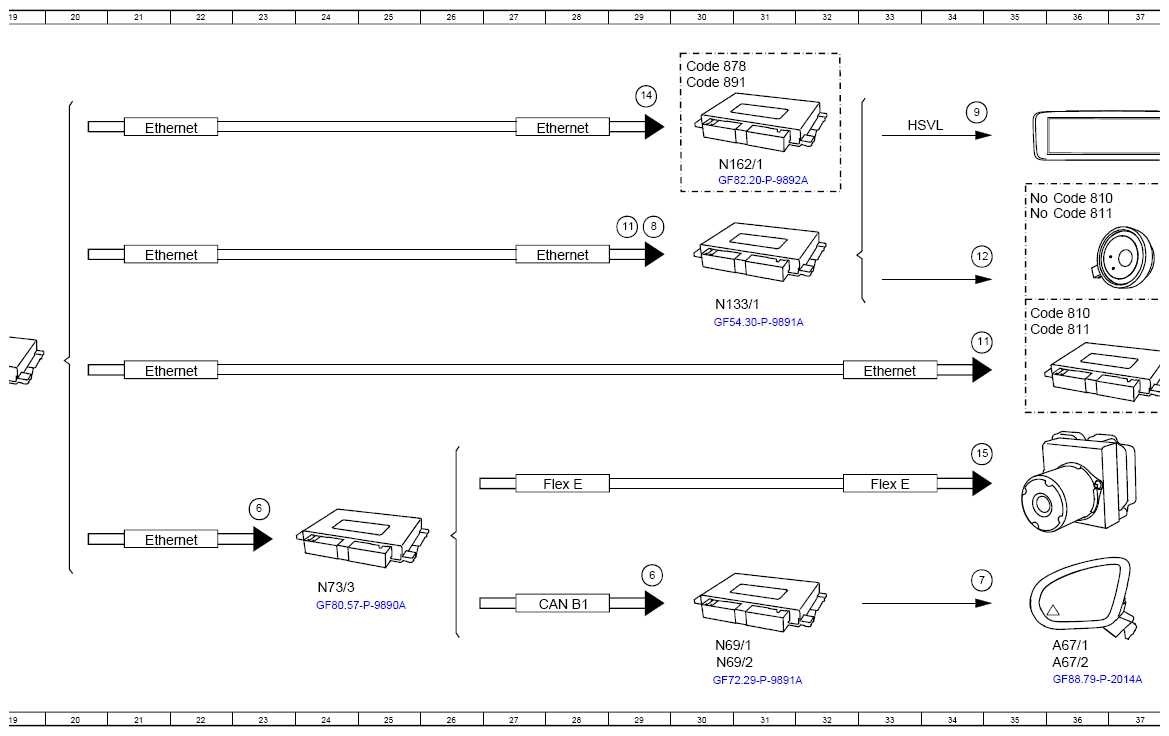

(Monitor Blind Spot, Function Schematic - PE54.71-P-2502-97D)
Model 192, 206, 214, 232, 236, 254, 294, 295, 296
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Blind spot assist, status | - |
| 10 | Combination switch, status | 16F |
| 10 | Combination switch, status | 10D |
| 11 | Warning tone, request | 29D |
| 11 | Warning tone, request | 34F |
| 12 | Speaker, actuation | - |
| 13 | Door rotary tumbler switch, status | 16F |
| 13 | Door rotary tumbler switch, status | - |
| 14 | Exit warning, request | - |
| 15 | Traction system hydraulic unit, actuation | - |
| 16 | Close range radar sensors, signal | - |
| 16 | Close range radar sensors, signal | - |
| 16 | Close range radar sensors, signal | - |
| 2 | Wheel speed, signal 10C | - |
| 2 | Wheel speed, signal | 16F |
| 3 | Wheel rotation direction, signal | 10C |
| 3 | Wheel rotation direction, signal | 16F |
| 4 | Steering wheel angle, signal | 10D |
| 4 | Steering wheel angle, signal | 16F |
| 5 | Trailer recognition, status | 15F |
| 5 | Trailer recognition, status | - |
| 6 | Blind Spot Assist warning indicator, request | - |
| 6 | Blind Spot Assist warning indicator, request | - |
| 7 | Blind Spot Assist warning indicator, actuation | - |
| 8 | Blind Spot Assist warning, request | - |
| 9 | Image data, signal | - |
| A26/17 | Head unit | 2A |
| A26/17 | Head unit | 38F |
| A40/18 | Instrument cluster display | 38B |
| A67/1 | Left outside mirror | 36L |
| A67/2 | Right outside mirror | 36L |
| B29/11 | Left front short-range radar sensor | 2J |
| B29/12 | Right front short-range radar sensor | 2J |
| B29/13 | Left rear short-range radar sensor | 2K |
| B29/14 | Right rear short-range radar sensor | 2L |
| CAN B1 | CAN 1 for vehicle interior | 8F |
| CAN B1 | CAN 1 for vehicle interior | 8H |
| CAN B1 | CAN 1 for vehicle interior | 28K |
| CAN S1 | CAN for front radar | 8J |
| CAN S2 | CAN for rear radar | 8L |
| Code 550 | Trailer hitch | 1G |
| Code 810 | Premium sound system | 36C |
| Code 810 | Premium sound system | 35E |
| Code 811 | High-End sound system | 36D |
| Code 811 | High-End sound system | 35E |
| Code 878 | CONNECTED LIGHT ambiance illumination | 30A |
| Code 891 | Premium ambiance illumination | 30B |
| Ethernet | Ethernet | 15G |
| Ethernet | Ethernet | 21J |
| Ethernet | Ethernet | 8A |
| Ethernet | Ethernet | 28D |
| Ethernet | Ethernet | 14A |
| Ethernet | Ethernet | 21D |
| Ethernet | Ethernet | 28B |
| Ethernet | Ethernet | 21B |
| Ethernet | Ethernet | 33F |
| Ethernet | Ethernet | 21F |
| Flex E | Chassis FlexRay | 8C |
| Flex E | Chassis FlexRay | 8E |
| Flex E | Chassis FlexRay | 33H |
| Flex E | Chassis FlexRay | 28H |
| H4/127 | Instrument panel mid-range speaker | 38D |
| HSVL | High-speed video link | 33B |
| N133/1 | Instrument cluster control unit | 30E |
| N162/1 | Active ambient lighting control unit | 30C |
| N28/1 | Trailer recognition control unit | 2H |
| N30/3 | Electronic Stability Program control unit | 2C |
| N30/3 | Electronic Stability Program control unit | 38H |
| N62/4 | Driver assistance systems control unit | 18G |
| N69/1 | Left front door control unit | 2F |
| N69/1 | Left front door control unit | 30L |
| N69/2 | Right front door control unit | 2F |
| N69/2 | Right front door control unit | 30L |
| N73/3 | Electronic ignition switch control unit | 24K |
| N73/3 | Electronic ignition switch control unit | 11G |
| N80 | Steering column module control unit | 2E |
