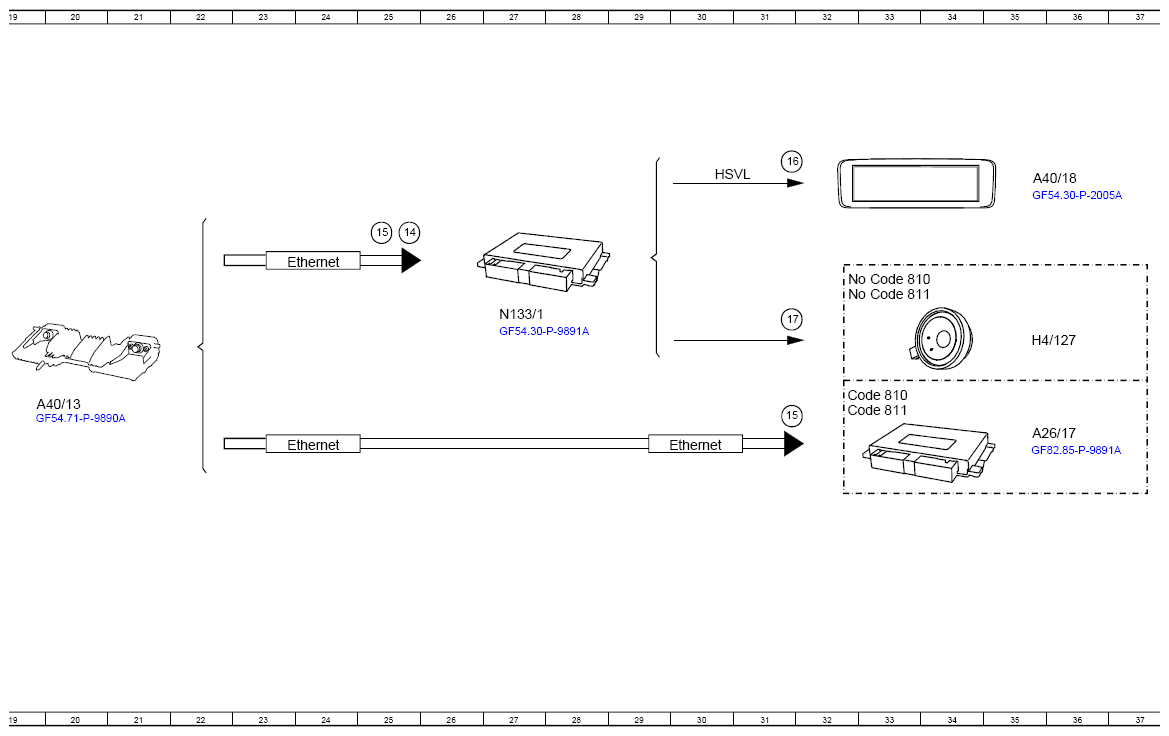

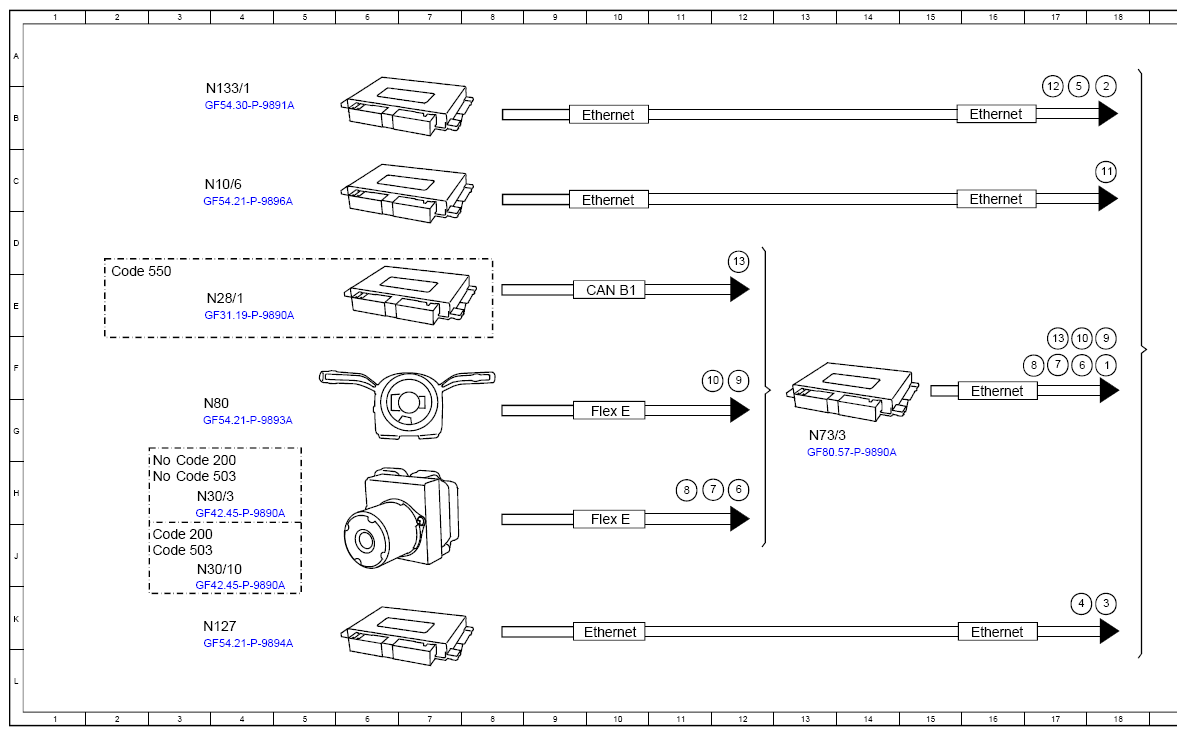

(Recognize Traffic Signs, Function Schematic - PE54.30-P-2502-97C)
Model 223, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | - |
| 10 | Steering wheel velocity, signal | - |
| 10 | Steering wheel velocity, signal | - |
| 11 | Wiper status, signal | - |
| 12 | Displayed outside temperature, signal | - |
| 13 | Trailer recognition, status | - |
| 13 | Trailer recognition, status | - |
| 14 | Road sign display, request | - |
| 15 | Warning and system messages, request | - |
| 15 | Warning and system messages, request | - |
| 16 | Image data, signal | - |
| 17 | Speaker, actuation | - |
| 2 | Operating mode, status | - |
| 3 | Engine running, signal | - |
| 4 | Drivetrain operational, signal | - |
| 5 | Map data, signal | - |
| 6 | Wheel speed, signal | - |
| 6 | Wheel speed, signal | - |
| 7 | Wheel rotation direction, signal | - |
| 7 | Wheel rotation direction, signal | - |
| 8 | Speed, turn rate and lateral acceleration, signal | 17F |
| 8 | Speed, turn rate and lateral acceleration, signal | - |
| 9 | Steering wheel angle, signal | - |
| 9 | Steering wheel angle, signal | - |
| A26/17 | Head unit | 35G |
| A40/13 | Multifunction camera | 19G |
| A40/18 | Instrument cluster display | 35C |
| CAN B1 | CAN 1 for vehicle interior | 10E |
| Code 200 | Conditionally automated driving | 3J |
| Code 200 | Conditionally automated driving | 3H |
| Code 503 | Remote-controlled parking | 3H |
| Code 503 | Remote-controlled parking | 3J |
| Code 550 | Trailer hitch | 2E |
| Code 810 | Premium sound system | 33E |
| Code 810 | Premium sound system | 32G |
| Code 811 | High-End sound system | 33E |
| Code 811 | High-End sound system | 32G |
| Ethernet | Ethernet | 16F |
| Ethernet | Ethernet | 16K |
| Ethernet | Ethernet | 10K |
| Ethernet | Ethernet | 10C |
| Ethernet | Ethernet | 16C |
| Ethernet | Ethernet | 10B |
| Ethernet | Ethernet | 16B |
| Ethernet | Ethernet | 24D |
| Ethernet | Ethernet | 24G |
| Ethernet | Ethernet | 30G |
| Flex E | Chassis FlexRay | 10G |
| Flex E | Chassis FlexRay | 10J |
| H4/127 | Instrument panel mid-range speaker | 35F |
| HSVL | High-speed video link | 30C |
| N10/6 | Front signal acquisition and actuation module control unit | 4C |
| N127 | Drivetrain control unit | 4K |
| N133/1 | Instrument cluster control unit | 4B |
| N133/1 | Instrument cluster control unit | 27E |
| N28/1 | Trailer recognition control unit | 4E |
| N30/10 | Electronic Stability Program control unit | 3J |
| N30/3 | Electronic Stability Program control unit | 3H |
| N73/3 | Electronic ignition switch control unit | 13G |
| N80 | Steering column module control unit | 4G |
