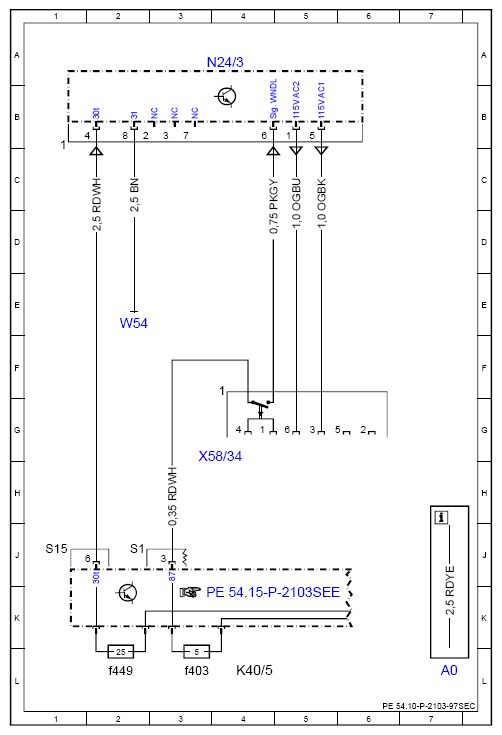

Wiring Diagram Control Unit DC/AC Converter - PE54.10-P-2103-97SEC
Model 222 as of model year 2018 with code U80 (115 V socket) Control unit N24/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 7L |
| K40/5 | Rear fuse and relay module | 4L |
| K40/5f403 | Fuse 403 | 3L |
| K40/5f449 | Fuse 449 | 2L |
| N24/3 | DC/AC converter control unit | 4A |
| W54 | Right rear wheel well ground point | 2E |
| X58/34 | 115 V socket | 4H |
